TL-WA830RE 300Mbps Wireless N Range Extender User Guide
1.2 Main Features
¾ Make use of IEEE 802.11n wireless technology
¾ Provides multiple encryption security Types including: 64/128/152-bit WEP WPA/WPA2
WPA-PSK/WPA2-PSK
¾ Supports Built-in DHCP server
¾ Supports MAC address filtering
¾ Supports multiple operating modes including: Range Extender, Access Point
¾ Supports Firmware Upgrade
¾ Supports Remote and Web management
1.3 Appearance

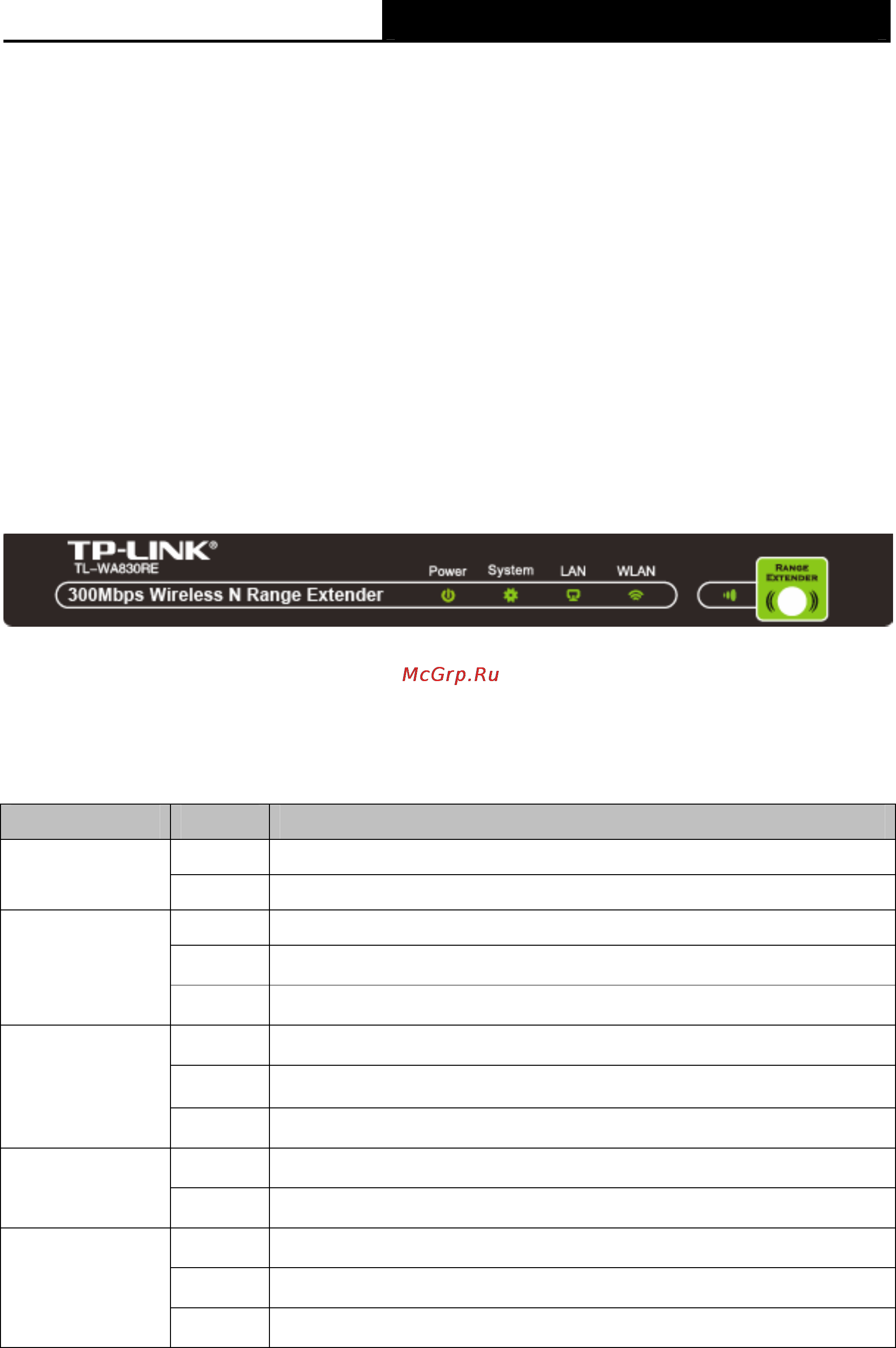

1.3.1 The Front Panel
Figure 1-1
The front panel of the TL-WA830RE consists of several LED indicators, which is designed to
indicate connections. View from left to right, Table 1-1 describes the LEDs on the front panel of the
device.
LED Explanation
Name Status Indication
Off No Power
Power
On Power on
Off The device has a system error
On
The device is initialising
System
Flashing
The device is working properly
Off
There is no device linked to the corresponding port
On
There is a device linked to the corresponding port but no activity
LAN
Flashing
There is an active device linked to the corresponding port
Off
The Wireless function is disabled
WLAN
Flashing
The Wireless function is enabled
On
The Range Extender has connected the Router successfully
Flashing
The Range Extender is connecting the Router
Range Extender
Off
The Range Extender has not connected any Router yet
Table 1-1
