TL-WA830RE 300Mbps Wireless N Range Extender User Guide
¾ Wired - This field displays the current settings or information for the Network, including the
MAC address, IP address and Subnet Mask.
¾ Wireless - This field displays basic information or status for wireless function, including
Wireless Mode, SSID, Channel, Mode, Channel Width, Max Tx Rate and MAC Address.
¾ Traffic Statistics - This field displays the AP's traffic statistics.
¾ System Up Time - This filed displays the run time of the AP since it’s powered on or reset.
)
Note:

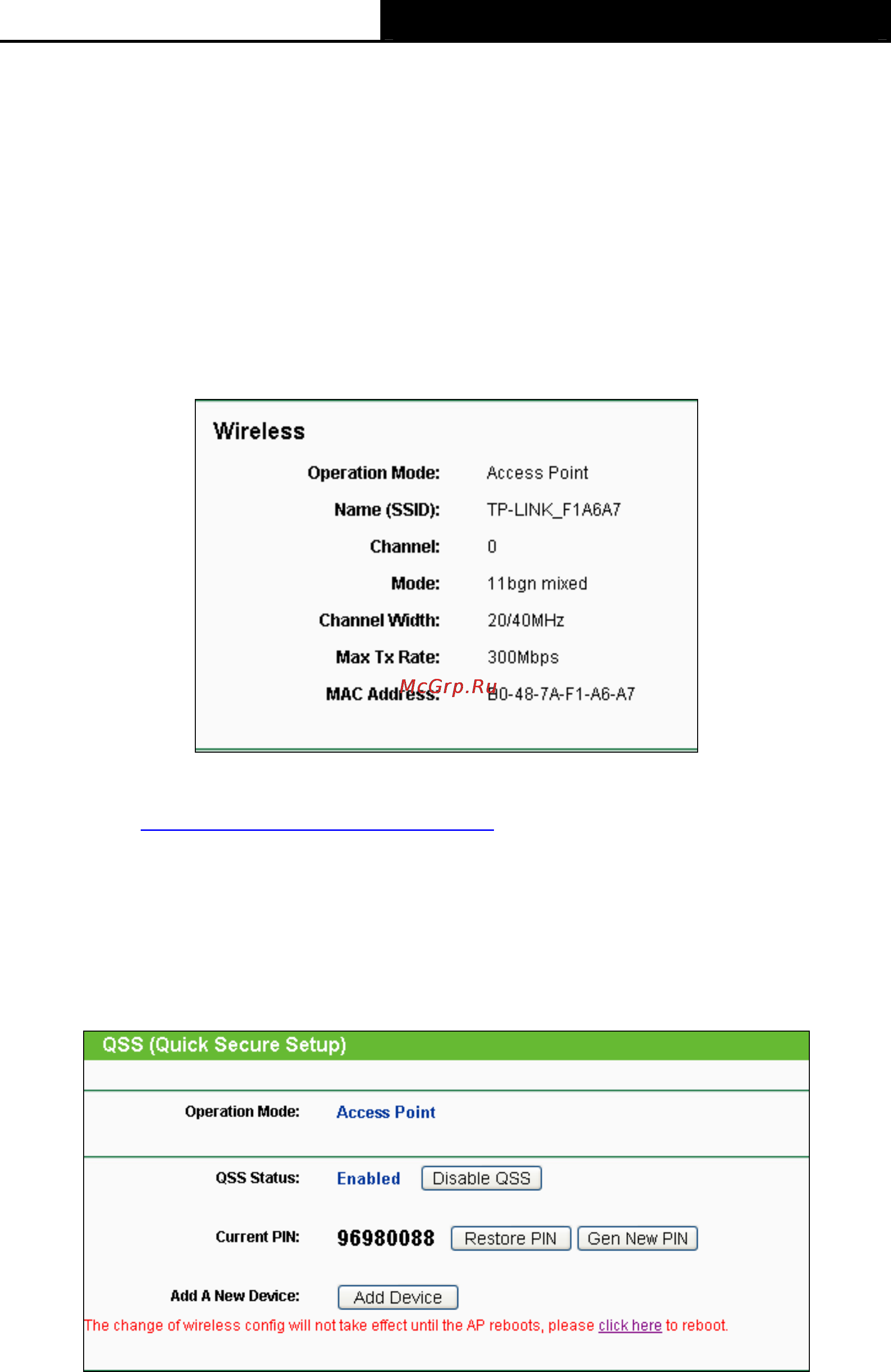

If you select Access Point mode in Figure 3-10, the wireless status in Figure 4-1 will change,
similar to the figure below:
4.2 Quick Setup
Please refer to Section 3.2: "Quick Installation Guide."
4.3 QSS
QSS (Quick Secure Setup) can help you to quickly and securely connect to a network. This
section will guide you to add a new wireless device to an existing network quickly by function.
Select menu “QSS”, you will see the next screen shown in Figure 4-2.
Figure 4-2 QSS
¾ Operation Mode - Displays the current operation mode of the device.
