TD-W8970

00Mbps Wireless N Gigabit ADSL2+ Modem Router User Guide

)

Note:

You could also use other VPN Routers to set VPN tunnels with TD-W8970. TD-W8970 supports

up to 10 VPN tunnels simultaneously.

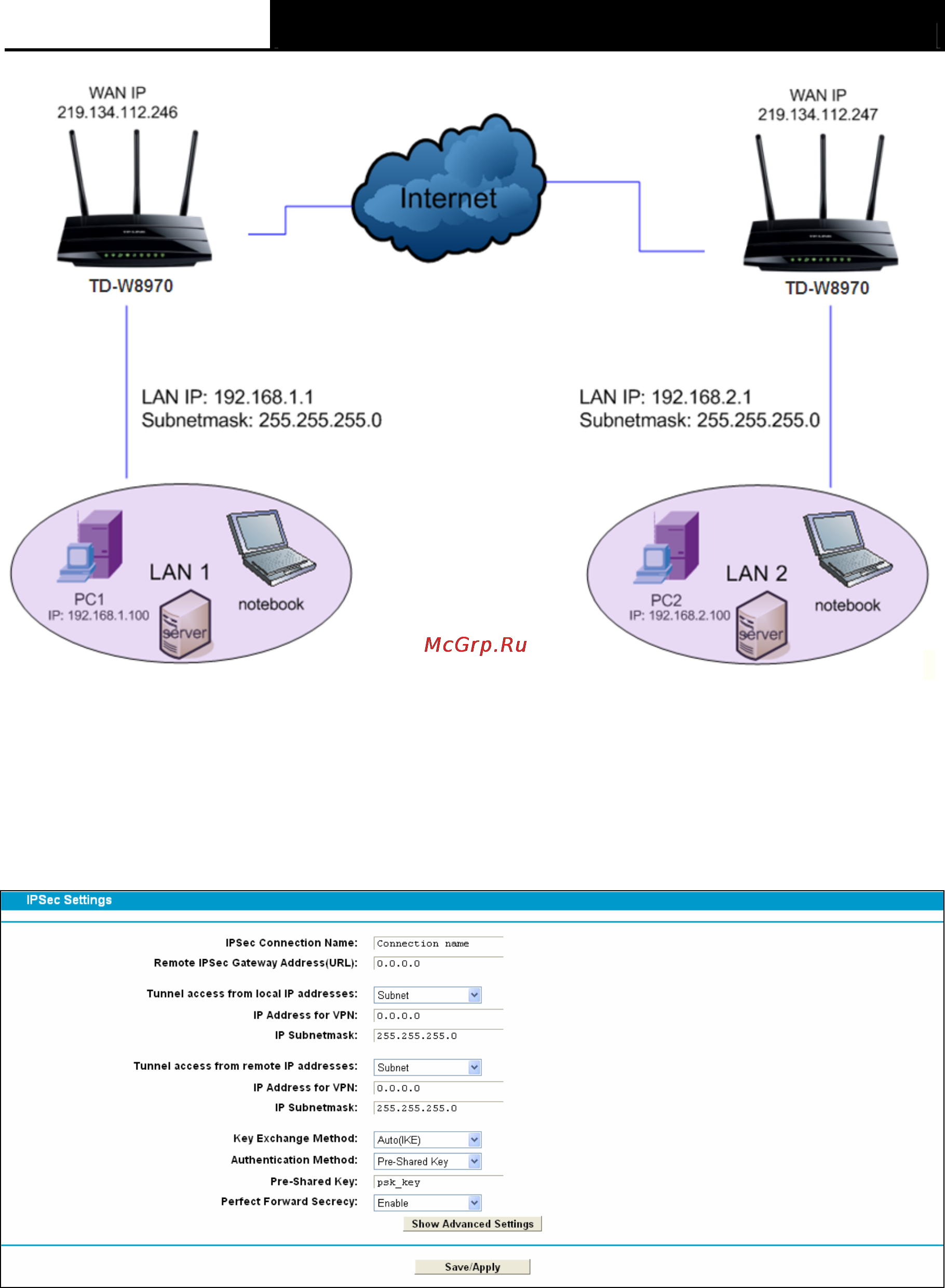

Click Add New Connection in Figure 4-25 and then you will enter the screen shown in Figure

4-26.

Figure 4-26

¾ IPSec Connection Name: Enter a name for your VPN.

¾ Remote IPSec Gateway Address (URL): Enter the destination gateway IP address in the box

which is the public WAN IP or Domain Name of the remote VPN server endpoint. (For example:

Input 219.134.112.247 in Device1, Input 219.134.112.246 in Device 2)

¾ Tunnel access from local IP addresses: Choose Subnet if you want the Whole LAN to join

the VPN network, or else choose Single Address if you want single IP to join the VPN network.
