TD-W8961NB 300Mbps Wireless N ADSL2+ Modem Router (Annex B) User Guide
19

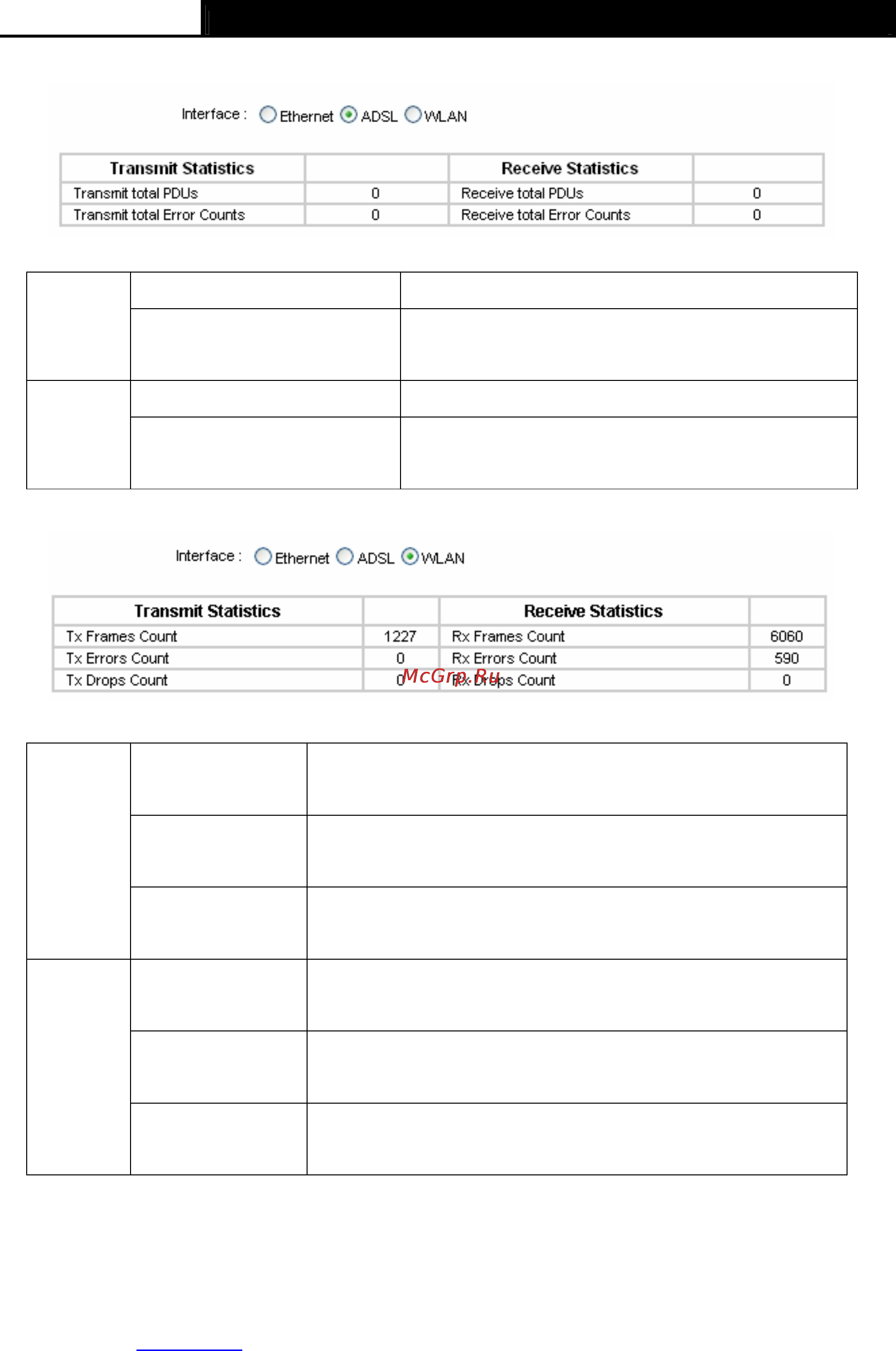

¾ Select ADSL, and you will see the statistics table as below.
Statistics Table:
Transmit total PDUs
The total PDUs transmitted over the ADSL port.
Transmit
Statistics
Transmit total Error Counts
The total errors occurred over the ADSL port when data
is being transmitted.
Receive total PDUs
The total PDUs transmitted over the ADSL port.
Receive
Statistics
Receive total Error Counts
The total errors occurred over the ADSL port when data
is being received.
¾ Select WLAN, and you will see the statistics table as below.
Statistics Table:
Tx Frames Count
The frames transmitted over the WLAN when wireless data is
being transmitted.
Tx Errors Count
The errors occurred over the WLAN when wireless data is being
transmitted.
Transmit
Statistics
Tx Drops Count
The drops occurred over the WLAN when wireless data is being
transmitted.
Rx Frames Count
The frames received over the WLAN when wireless data is being
transmitted.
Rx Errors Count
The errors occurred over the WLAN when wireless data is being
received.
Receive
Statistics
Rx Drops Count
The drops occurred over the WLAN when wireless data is being
received.
Click the REFRESH button to refresh immediately.
4.2 Quick Start
Please refer to " 3.2 Login".
