TD-W8960N 300Mbps Wireless N ADSL2+ Modem Router User Guide
5
2. If the Internet LED is off, please check your ADSL LED first. If your ADSL LED is also off,
please refer to Note 1. If your ADSL LED is GREEN ON, please check your Internet
configuration. You may need to check this part of information with your ISP and make sure
everything have been input correctly. Refer to 4.2 Device Info
for more information.

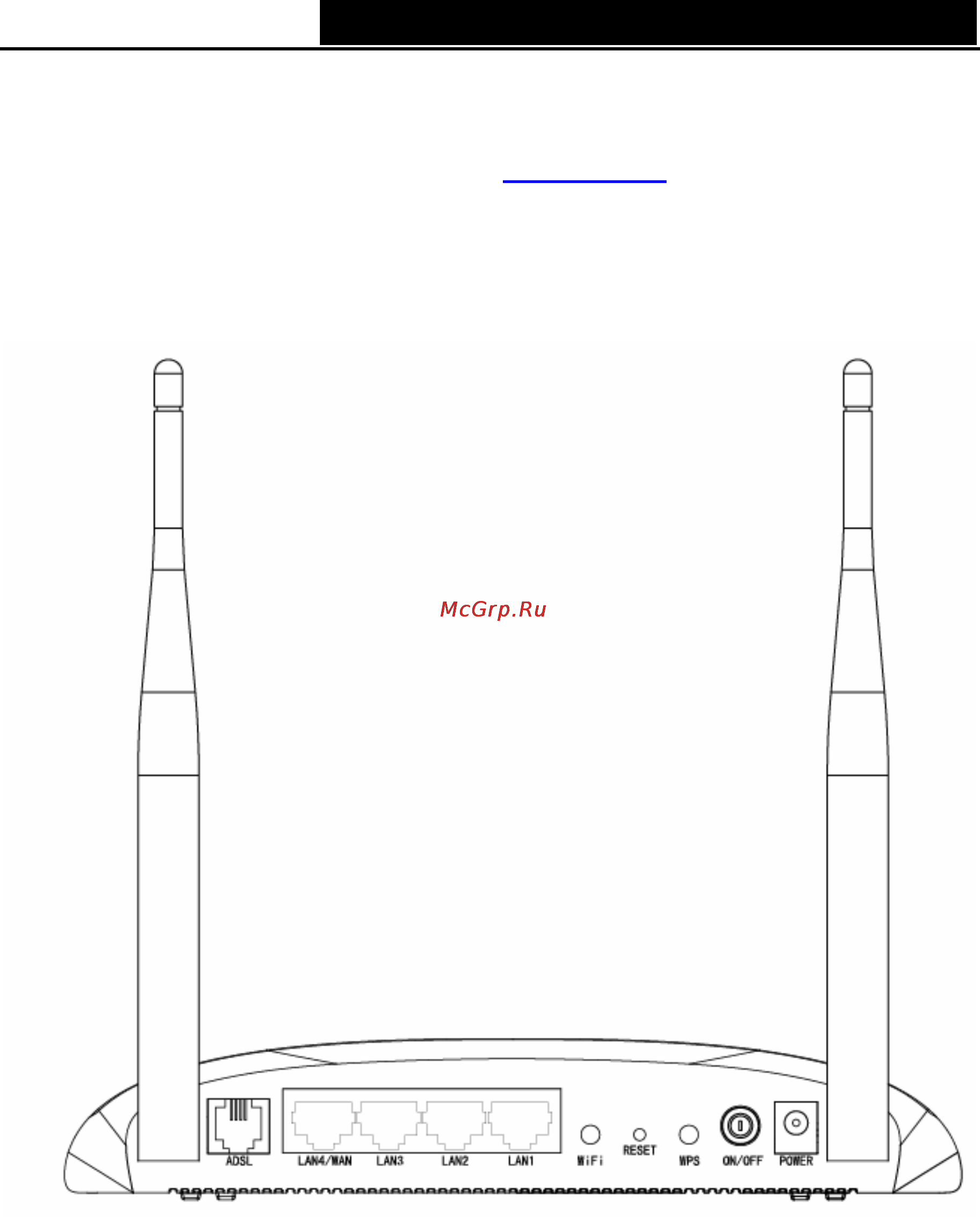

1.3.2 The Back Panel
The Router's ports, where the cables are connected, and RESET button are located on the back
panel.
Figure 1-2
¾ ADSL: Connect to the Modem Port of Splitter or to the telephone line.
¾ LAN1, LAN2, LAN3, LAN4/WAN: Through these ports, you can connect the Router to your
PC or the other Ethernet network devices. Enable EWAN function and you will be able to
connect to Cable/FTTH/VDSL/ADSL device.
¾ WiFi: The switch for the WiFi function.
¾ RESET: There are two ways to reset the Router's factory defaults.
1) Use the Restore Default function on Management -> settings -> Restore Default page in
the router's Web-based Utility.
