TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router (Annex B) User Guide
5
)
Note:
1. If the ADSL LED is off, please check your Internet connection first. Refer to 2.4 Connecting
the Modem Router for more information about how to make Internet connection correctly. If
you have already made a right connection, please contact your ISP to make sure if your
Internet service is available now.
2. If the Internet LED is off, please check your ADSL LED first. If your ADSL LED is also off,
please refer to Note 1. If your ADSL LED is GREEN ON, please check your Internet
configuration. You may need to check this part of information with your ISP and make sure
everything have been input correctly. Refer to 4.1.1 Device Info
and 4.3.1 Internet for more
information.
2.2 The Back Panel

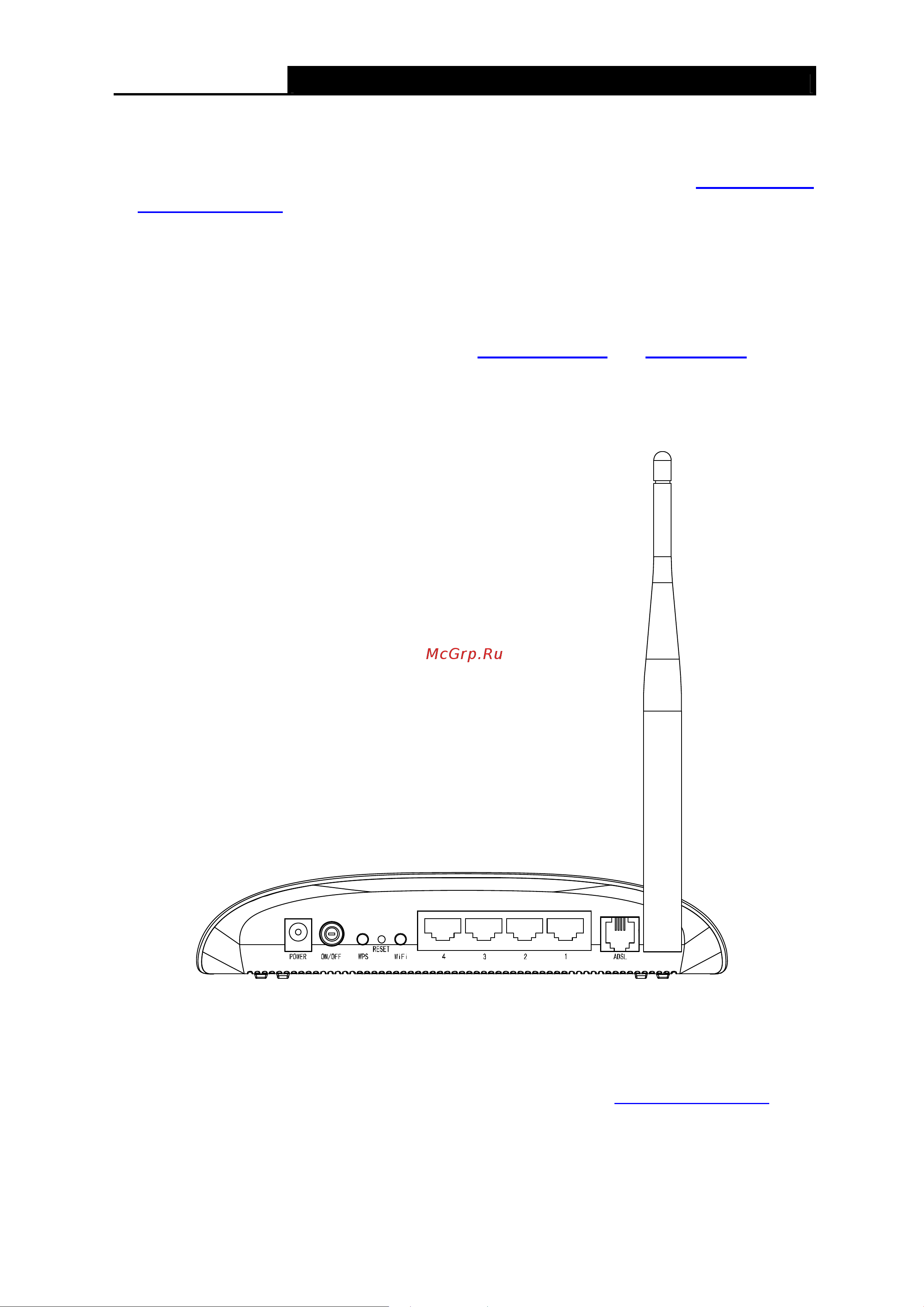

Figure 2-2
¾ POWER: The Power plug is where you will connect the power adapter.
¾ ON/OFF: The switch for the power.
¾ WPS: This button is for WPS settings. For details, please refer to 4.3.3.1 WPS Settings
.
¾ RESET: There are two ways to reset the Router's factory defaults.
Method one: With the Router powered on, use a pin to press and hold the Reset button for at
