TD-W8951NB 150Mbps Wireless N ADSL2+ Modem Router (Annex B) User Guide

¾ 11n Settings: These are the settings of the 11n parameters. If “802.11n”, “802.11g+n” or

“802.11b+g+n” is selected for Wireless mode, these settings will be displayed.

• Channel Bandwidth: Select the Bandwidth you want to use from the drop-down List.

There are two options, “20 MHz” and “20/40 MHz”. If bigger bandwidth is selected, device

could transmit and receive data with higher speed.

• Extension Channel: If “20/40 MHz” is selected, this option will be displayed.

• Guard Interval: Select the guard interval you want from the drop-down list.

• MCS: Select the wireless transmission rate from the drop-down list. By default, the option

is AUTO.

¾ Multiple SSIDs Settings: These are the settings of the SSID.

• SSID Index: The index of the SSID, and in this model, you can only leave it as a default

value of 1.

• Broadcast SSID: When wireless clients survey the local area for wireless networks to

associate with, they will detect the SSID broadcast by the Router. To broadcast the

Router’s SSID, keep the default setting. If you don’t want to broadcast the Router’s SSID,

select “No”.

• Use WPS: Use WPS (Wi-Fi Protected Setup) function, you can add a new wireless

device to an existing network quickly. To Use WPS, keep the default setting, and

configure the parameters in WPS Settings. If you don’t want to Use WPS, select “No”,

then you will see the screen as shown below.

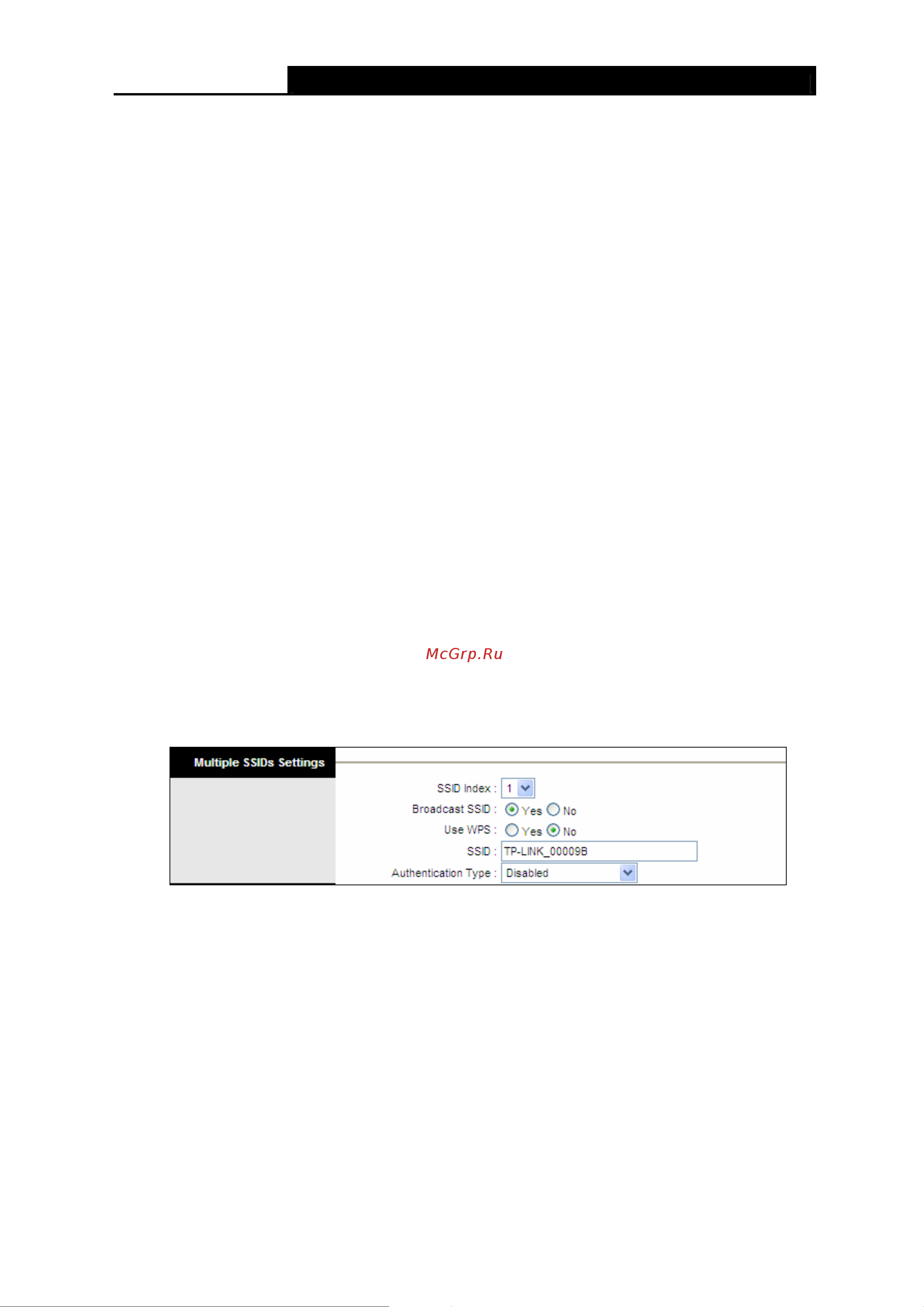

Figure 4-15

• SSID: Wireless network name shared among all points in a wireless network. The SSID

must be identical for all devices in the wireless network. It is case-sensitive and must not

exceed 32 characters (use any of the characters on the keyboard). Make sure this setting

is the same for all stations in your wireless network. Type the desired SSID in the space

provided.

• Authentication Type: Select an authentication type from the drop-down list, which

allows you to configure security features of the wireless LAN interface. Options available

are: Disabled, WEP-64Bits, WEP-128Bits, WPA-PSK, WPA2-PSK, and WPA-PSK/

WPA2-PSK.
