242

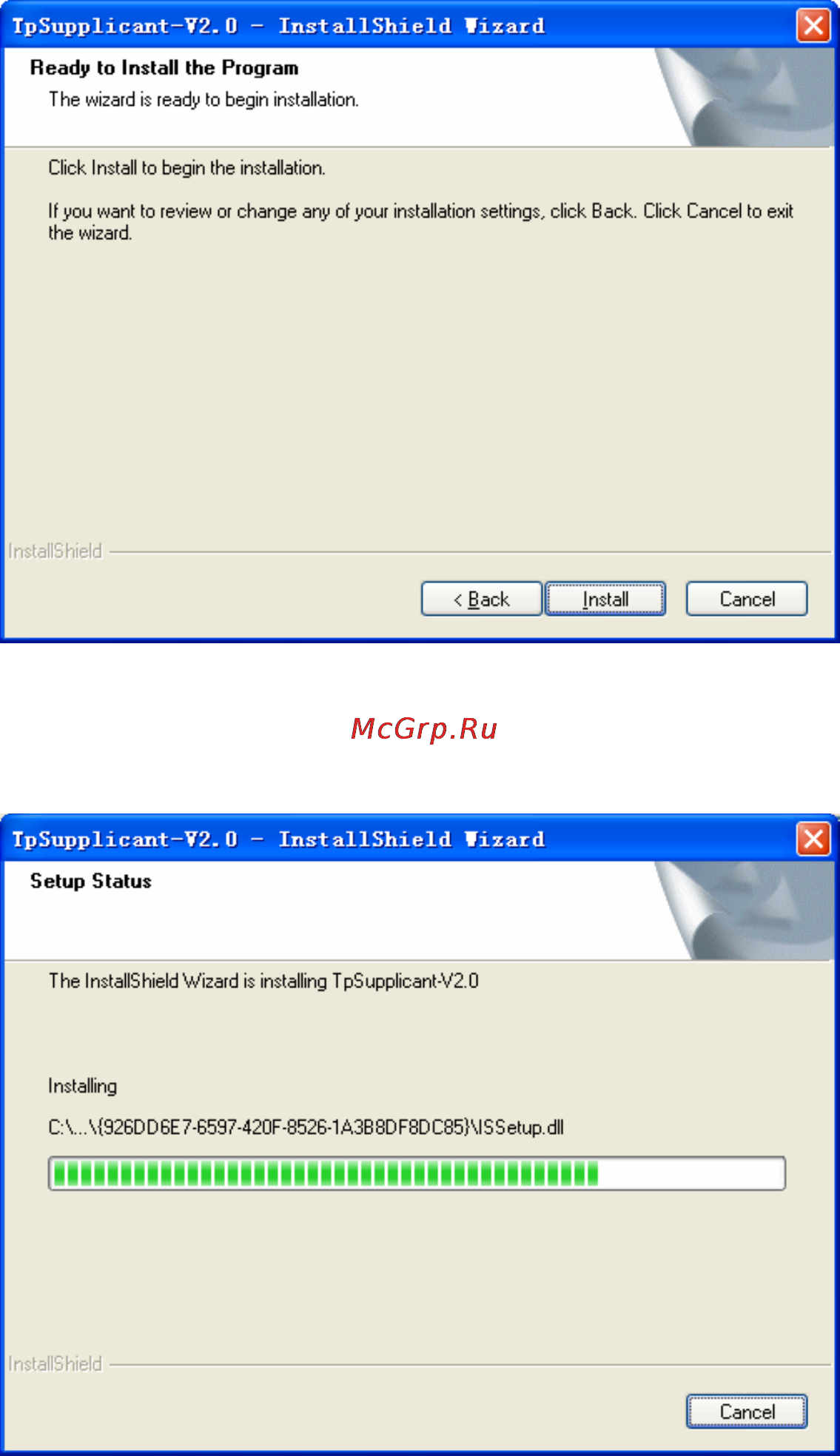

Figure C-5 Install the Program
6. The InstallShield Wizard is installing TpSupplicant-V2.0 shown as the following screen.
Please wait.
Figure C-6 Setup Status
7. On the following screen, click Finish to complete the installation.
