Tp-Link TL-SL5428E [89/259] Configuration procedure

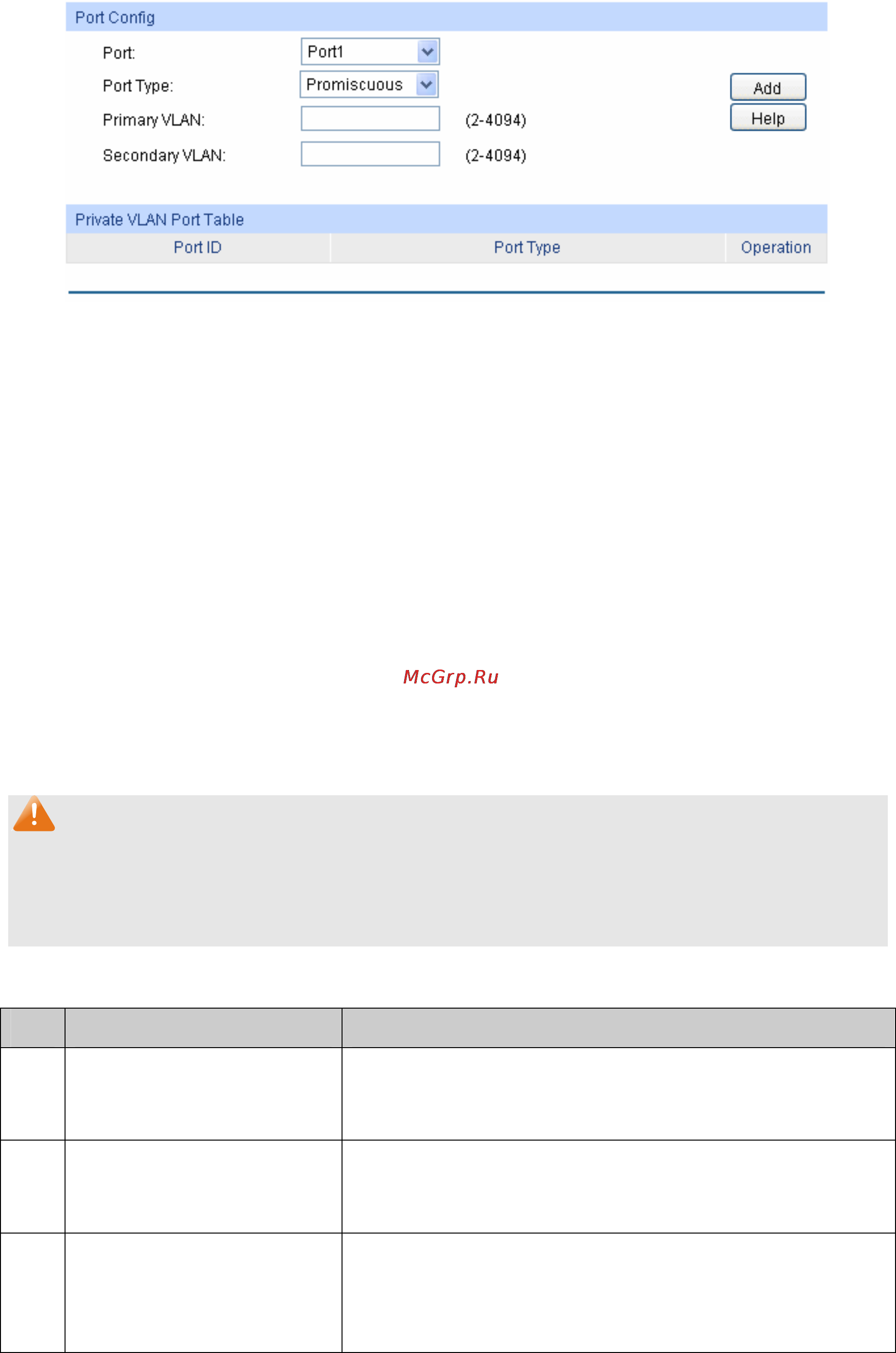

Choose the menu VLAN→Private VLAN→Port Config to load the following page.

Figure

6-18 Create and View Protocol Template

The following entries are displayed on this screen:

¾ Port Config

Port: Select the desired port for configuration.

Port Type: Select the Port Type from the pull-down list for the port.

Primary VLAN: Specify the Primary VLAN the port belongs to.

Secondary VLAN: Specify the Secondary VLAN the port belongs to.

¾ Private VLAN Port Table

Port ID: Displays the port number.

Port Type: Displays the corresponding Port Type.

Operation: Click Remove to delete the port.

Note:

1. A Host Port can only join to a Private VLAN.

2. A Promiscuous Port can only join to a Primary VLAN.

3. If you want to add a Promiscuous port to different Private VLANs with the same Primary VLAN,

you need to add the Promiscuous port to any one of these Private VLANs.

Configuration Procedure:

Step Operation Description

1 Create Private VLAN. Required. On the VLAN→Private VLAN→PVLAN page,

Enter the Primary VLAN and Secondary VLAN, and then

click the Create button.

2 Add ports to Private VLAN Required. On the VLAN→Private VLAN→Port Configure

page, select the desired ports and configure the port types

and click the Add button.

3 Modify VLAN. Optional. On the VLAN→Private VLAN→PVLAN page,

select the desired Private VLAN and do the modification,

then click the Apply button to modify the information of the

corresponding VLAN.
