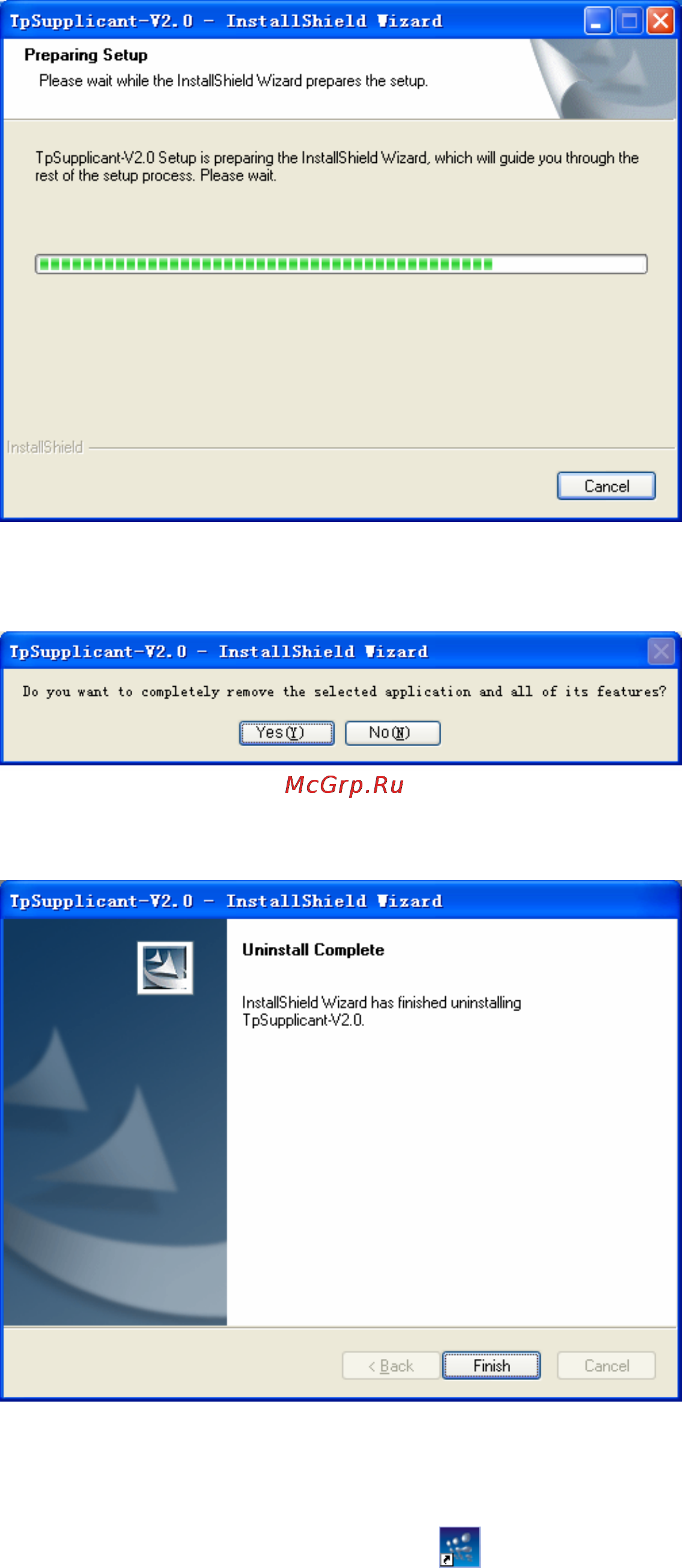

Figure C-8 Preparing Setup

3. On the continued screen, click Yes to remove the application from your PC.

Figure C-9 Uninstall the Application

4. Click Finish to complete.

Figure C-10 Uninstall Complete

1.3 Configuration

1. After completing installation, double click the icon to run the TP-LINK 802.1X Client

Software. The following screen will appear.
