1.2 Features
¾ Supports Green Ethernet technology to implement power
saving features
¾ Complies with IEEE802.3, IEEE802.3u, IEEE802.3ab
standards
¾ 5/8 10/100/1000Mbps Auto-Sensing RJ45 ports supporting
Auto-MDI/MDIX
¾ Supports IEEE802.3x flow control for Full-duplex Mode and
backpressure for Half-duplex Mode
¾ Non-blocking switching architecture that forwards and filters
packets at full wire-speed for maximum throughput
¾ 4K entry MAC address table of TL-SG1005D/TL-SG1008D
with auto-learning and auto-aging
¾ Supports for Jumbo frames of up to 9KB
¾ LED indicators for monitoring power, link, speed and activity
¾ External power adapter supply
Chapter 2 Identifying External Components
This Chapter describes the front panel and rear panel of the
Switch.
2.1 Front Panel

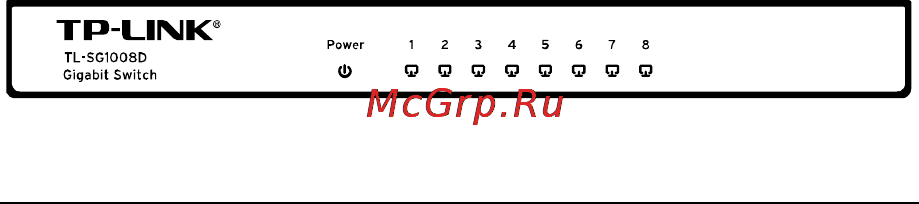

Figure 2-1 TL-SG1008D Switch Front Panel
