Brother MFC-7420R [105/327] Note re assemble the inner chute while pushing onto the pinch roller of the inner chute with the eject roller of the joint cover assy

Confidential

5-34

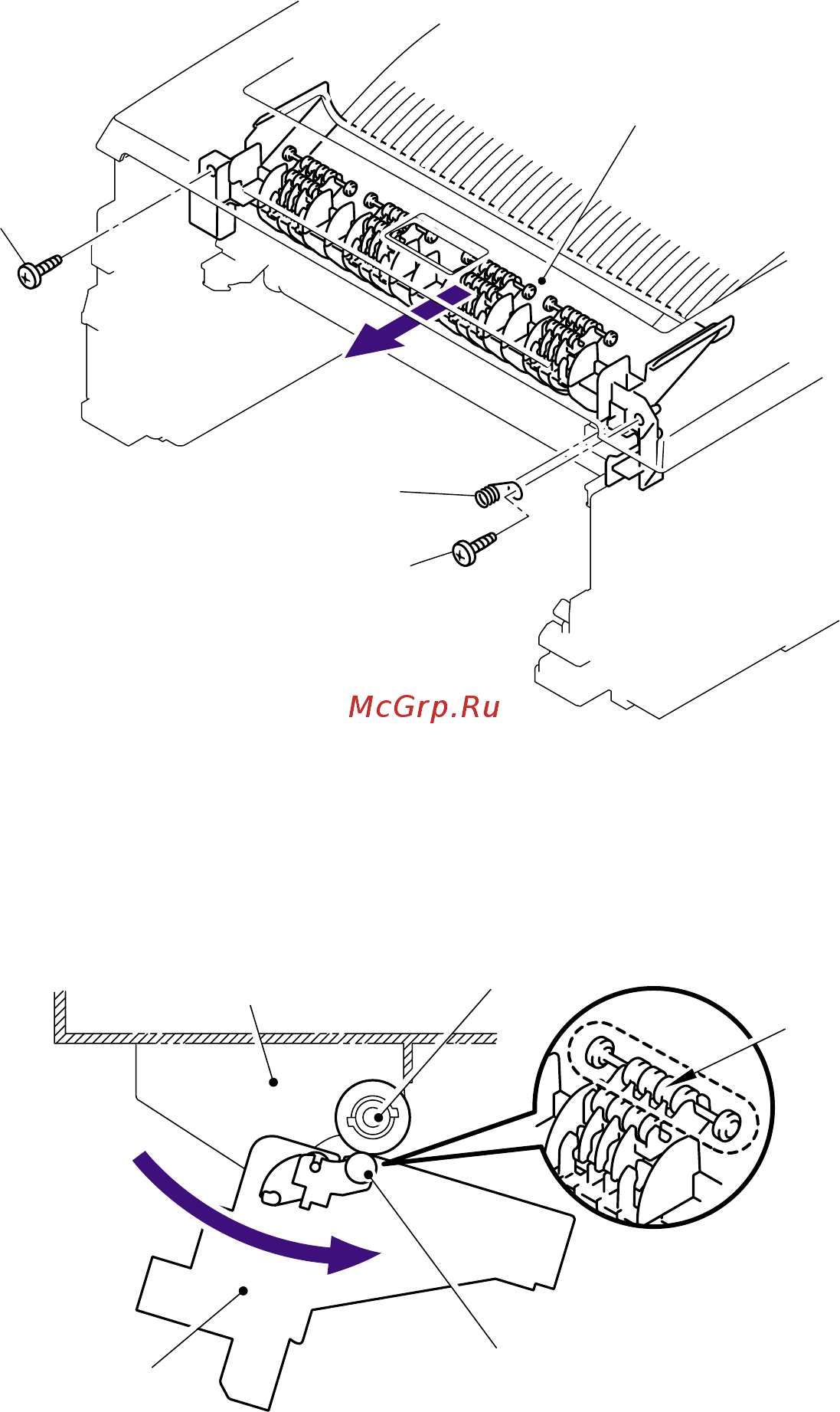

(2) Remove the two bind B M4x12 taptite screws and the rear chute cover spring.

(3) Remove the inner chute.

NOTE: Re-assemble the inner chute while pushing onto the pinch roller of the inner chute

with the eject roller of the joint cover ASSY.

Taptite, bind B

M4x12

Inner chute

Rear chute cover spring

Taptite, bind B M4x12

Joint cover ASSY

Eject rolle

Pinch rolle

Inner chute
