Brother MFC-7420R [134/327] 1 release the two hooks and remove the cover sensor from the main frame l

Confidential

5-63

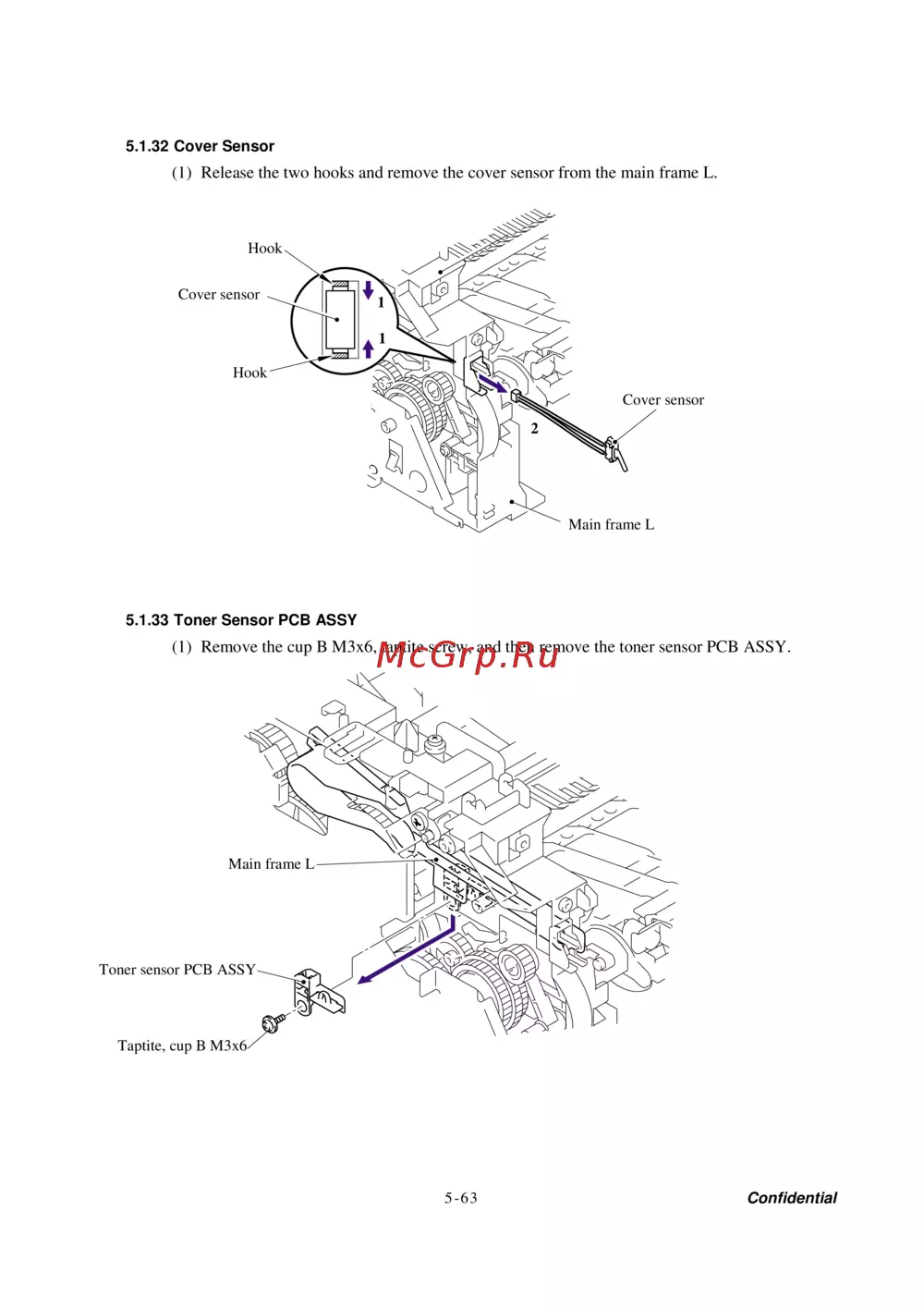

5.1.32 Cover Sensor

(1) Release the two hooks and remove the cover sensor from the main frame L.

5.1.33 Toner Sensor PCB ASSY

(1) Remove the cup B M3x6, taptite screw, and then remove the toner sensor PCB ASSY.

Hoo

Cover senso

Hoo

Main frame L

Cover senso

Main frame L

Toner sensor PCB ASSY

Taptite, cup B M3x6
