-132-

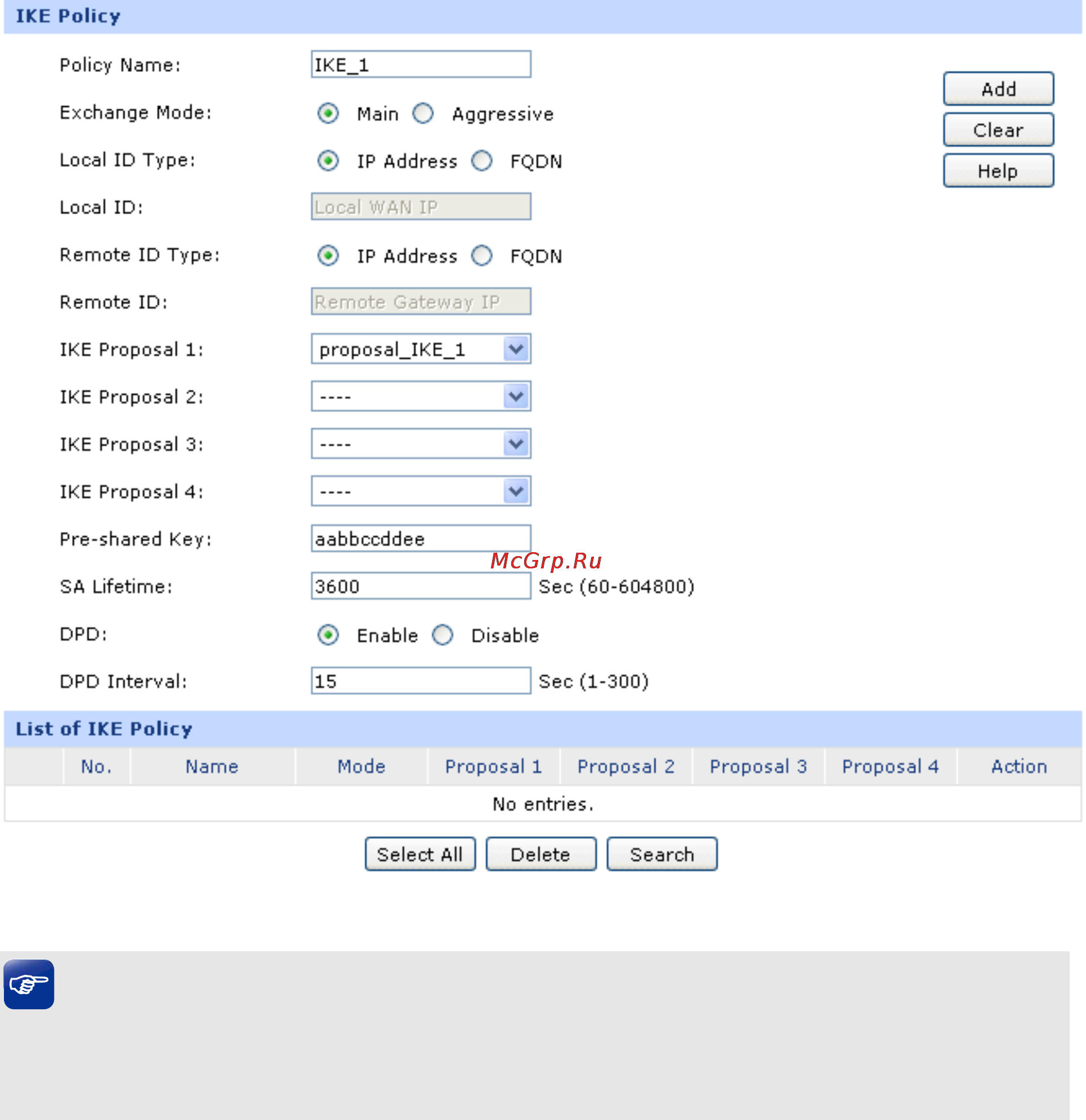

Figure 4-5 IKE Policy

Tips:

For the VPN Router in the remote branch office, the IKE settings should be the same as the Router in

the headquarters.

2) IPsec Setting

To configure the IPsec function, you should create an IPsec Proposal firstly.

 IPsec Proposal

Choose the menu VPN→IPsec→IPsec Proposal to load the following page.

Settings:

Proposal Name: proposal_IPsec_1

Security Protocol: ESP

ESP Authentication: MD5
