Configuration procedure

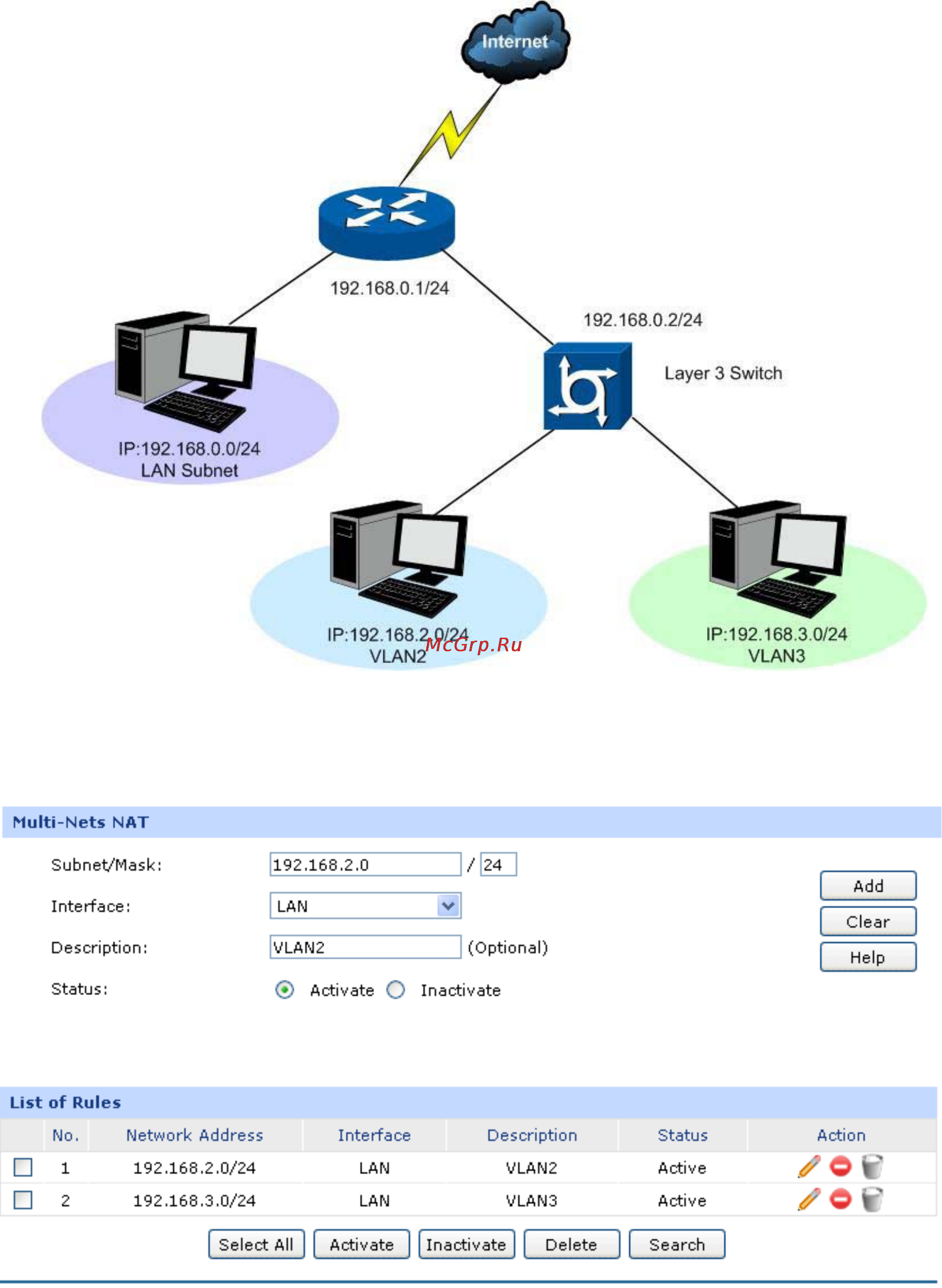

1. Establish the Multi-Nets NAT entries with Subnet/Mask of VLAN2 and VLAN3.

The configured entries are as follows:

2. Then set the corresponding Static Route entry, enter the IP address of the interface connecting

the Router and the three layer switch into the Next Hop field.
