The first entry in Figure 3-43 indicates: If there are packets being sent to a device with IP address of

211.162.1.0 and subnet mask of 255.255.255.0, the Router will forward the packets from WAN1 port to

the next hop of 211.200.1.1.

Application Example

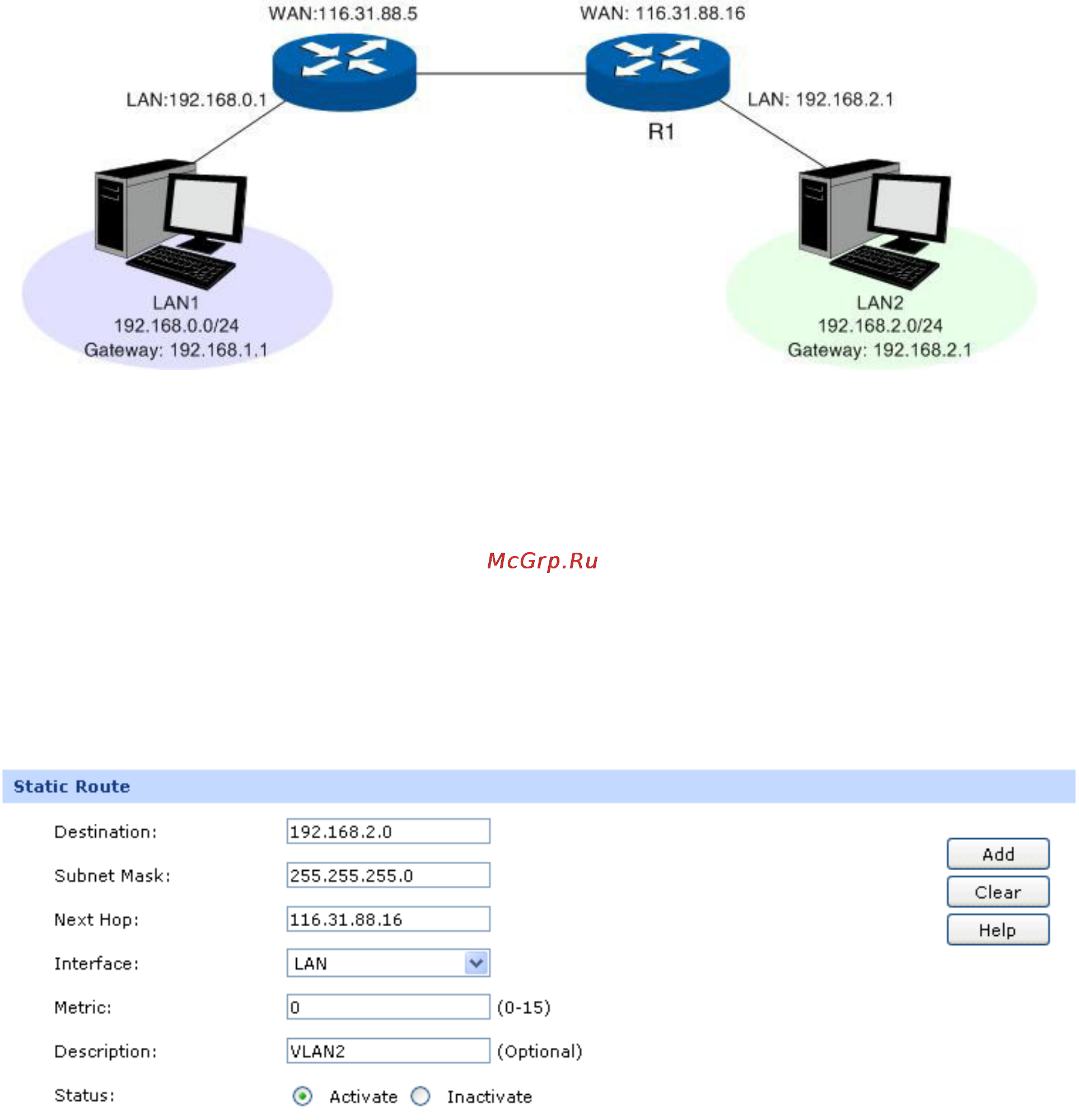

There is a network topology as the following figure shown:

If the LAN port of TL-ER6020（with Non-NAT or Classic system mode）is connected to LAN1 with

subnet of 192.168.0.0/24, while the LAN port of another Router R1 is connected to LAN2 with network

of 192.168.2.0/24. Meanwhile, the WAN ports of the two routers are interconnected and within the

same network. Now a host under TL-ER6020 and within network of LAN1 desires to communicate with

the host within network of LAN2.

You can set a Static Route entry: Enter the WAN IP address of R1 (116.31.88.16) in the Next Hop field

on the Static Route page of TL-ER6020 as the following figure shown, then click the <Add> button to

save the entry.

3.3.5.2 RIP

RIP (Routing Information Protocol) is a dynamic route protocol using distance vector algorithm to select

the optimal path. With features of easy configuration, management and implementation, it is widely used

in small and medium-sized networks such as the campus network.
