Tp-Link TL-R480T+ [11/124] Rear panel

-7-

Interface Description

Interface Port Description

WAN 1~4

The WAN port is for connecting the Router to a DSL/Cable

modem or Ethernet by the RJ45 cable.

LAN 2~5

The LAN port is for connecting the Router to the local PCs or

switches by the RJ45 cable.

Console /

The Console port is for connecting with the serial port of a

computer or terminal to monitor and configure the Router.

Reset button

Use the button to restore the Router to the factory defaults. With the Router powered on, use a pin to

press and hold the Reset button (about 5 seconds). If the SYS LED is flashing 5 times in high frequency,

release the Reset button. It means the Router is restored successfully. The default management

address of the Router is

http://192.168.0.1

, and the default username and the password are both

admin

2.3.2 Rear Panel

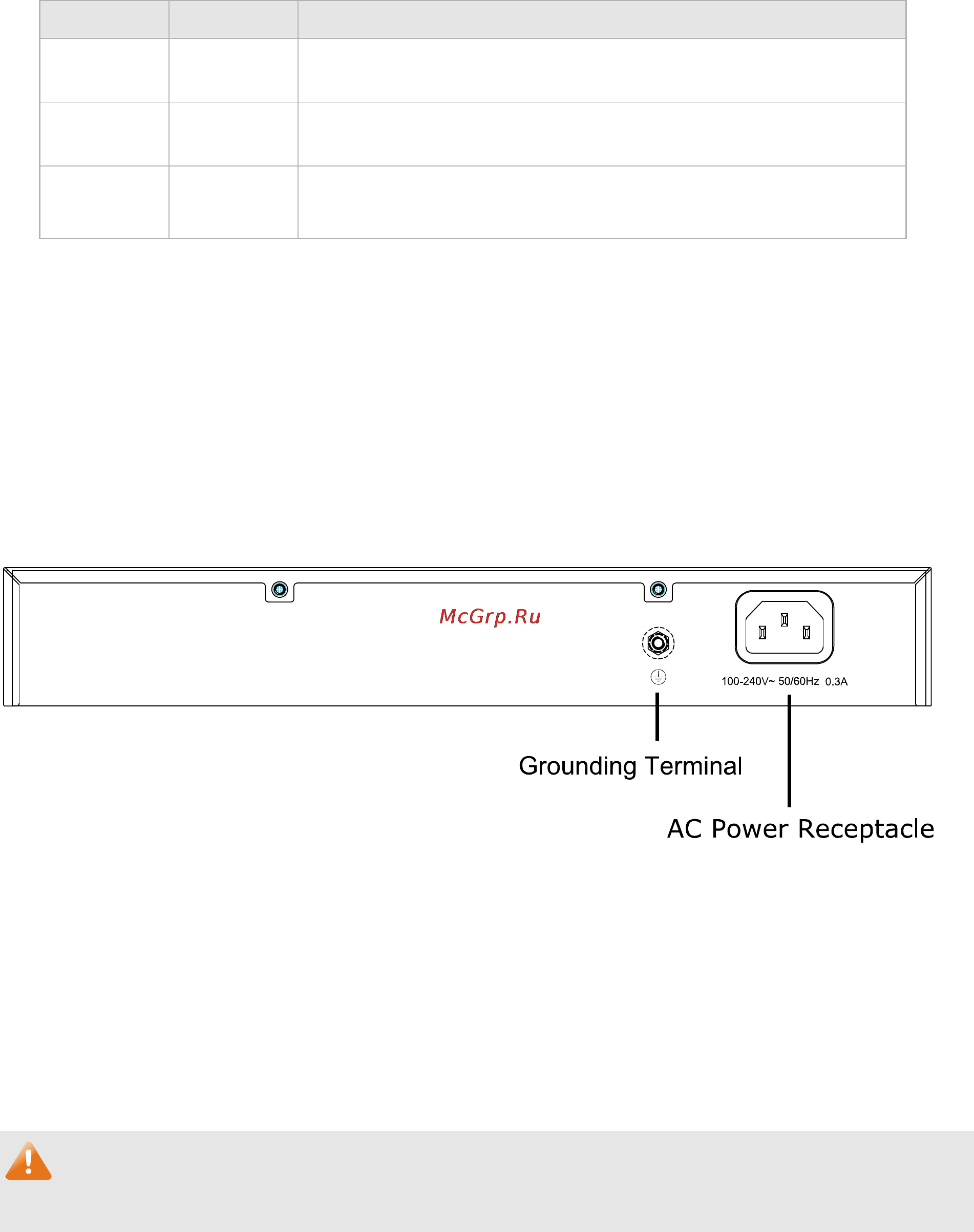

The rear panel of TL-R480T+ is shown as the following figure.

AC Power Receptacle

Connect the female connector of the power cord to this power receptacle, and the male connector to the

AC power outlet. Please make sure the voltage of the power supply meets the requirement of the input

voltage (100-240V~ 50/60Hz).

Grounding Terminal

The Router already comes with lightning protection mechanism. You can also ground the Router through

the PE (Protecting Earth) cable of AC cord or with Ground Cable.

Note:

Please only use the power cord provided with this Router.
