TL-PA411 AV500 Mini Powerline Adapter

The adapter is connected to a powerline network.

Blinking

The adapter is transferring data.

Powerline LED

Off

The adapter isn’t connected to any powerline network or

is in power-saving mode.

The Ethernet port is connected, but there is no data

being transferred.

Blinking The Ethernet port is transferring data.

Ethernet LED

Off The Ethernet port isn’t connected.

)

Note:

5 minutes after the device connected to the adapter is turned off, and the adapter will automatically

switch to the power-saving Mode.

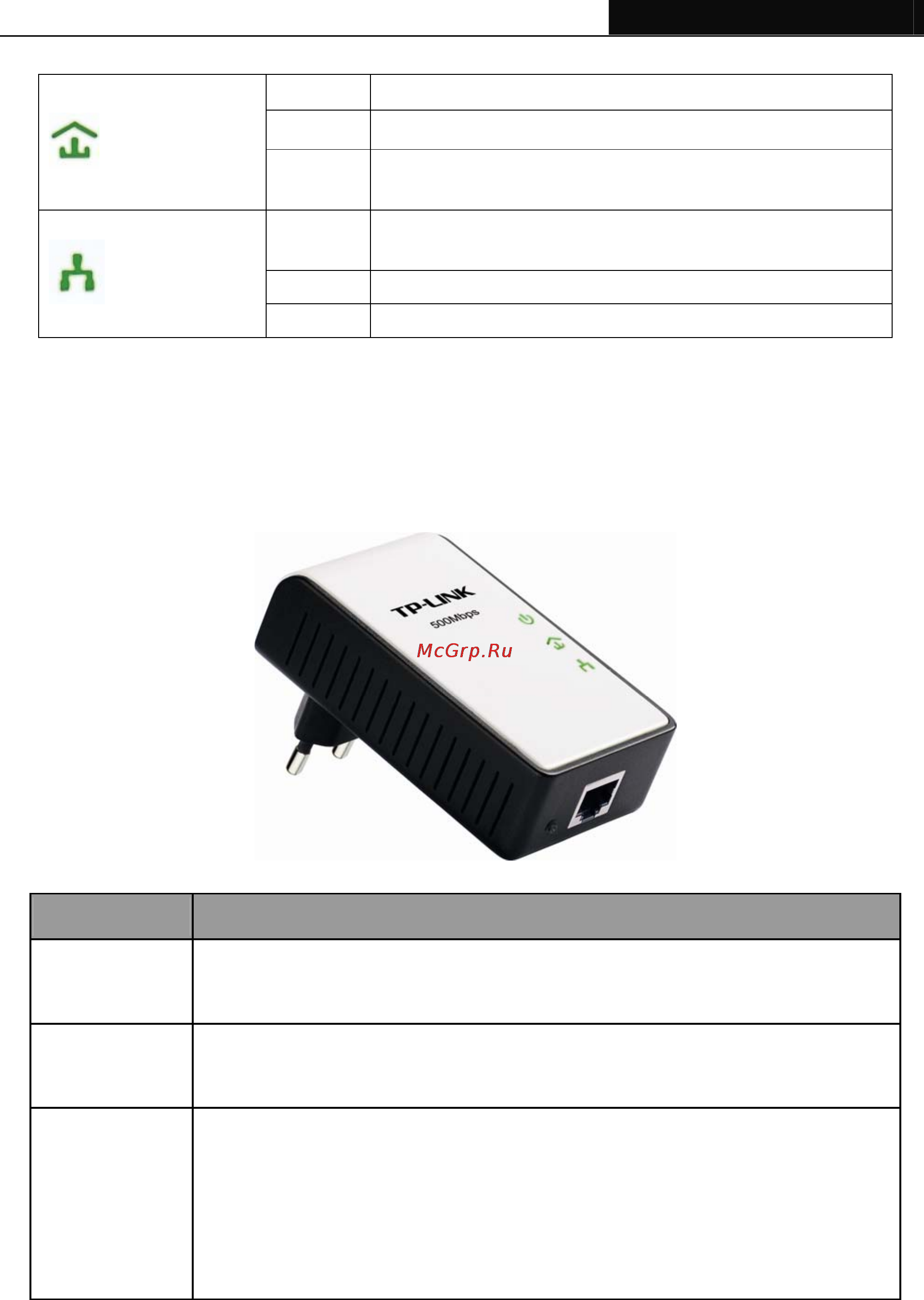

2.3 Physical Interface

There are three physical interfaces on this Powerline Adapter.

Interface Description

Ethernet

A 10/100Mbps Ethernet port for connecting the adapter to the PC or the

broadband device with a network cable.

Power Plug*

A Power Plug for connecting the adapter to a 100V ~ 240V AC power

socket.

Pair Button

Pair buttons are used to secure a powerline network. To secure your

network, please follow the steps below. Firstly, plug in a new adapter, and

press its pair button for 1 second; then plug in another adapter and press its

pair button for 1 second as well. The two buttons should be pressed within 2

minutes of each other. After that, wait about 60 seconds so that the two

adapters can finish connecting.

* The provided power plug may differ from the picture due to different regional power specifications.

Here we take the EU version of this product as an example.
