TL-PA411 AV500 Mini Powerline Adapter

)

Note:

1. If you press the Pair button for more than 10 seconds, the Powerline Adapter will leave the network

which it is associated with and its network name assumes a random value. The Power LED turns off

when it disconnects from the Powerline network.

2. For detailed information about the Pair button, please refer to Charpter 5 Advanced Feature:How to

Use the Pair Buttons

2.4 Connection Instruction

To ensure the optimum performance of the Powerline Adapter and significantly improve the transmission

capacity of the network, we recommend that you comply with the following connection rule:

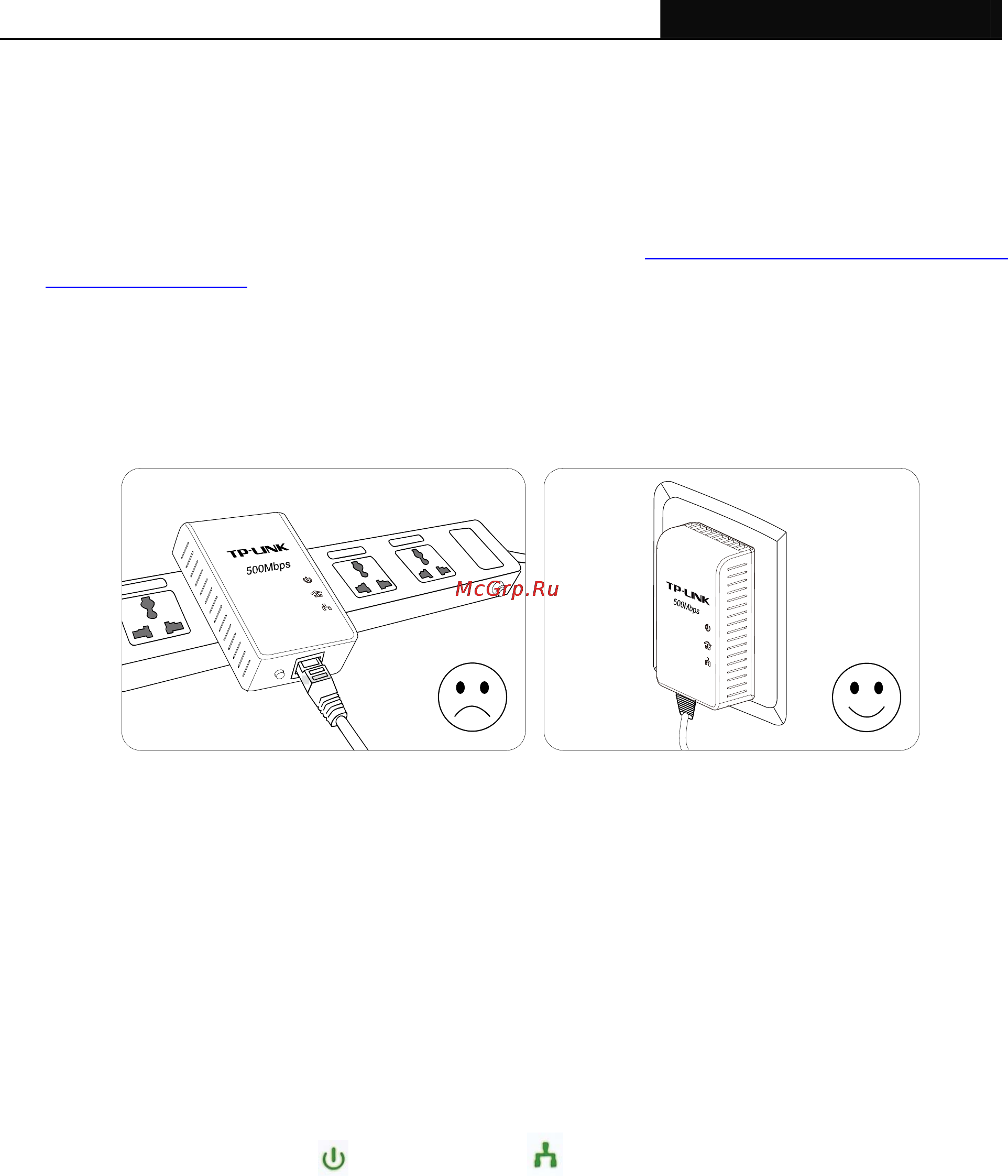

y Plug the Powerline Adapter directly into a wall socket but not the multiple sockets.

2.5 Hardware Connection – Computer

For those computers you wish to be networked by Powerline Adapter, each of the computers must be

properly connected with a Powerline Adapter through an Ethernet (RJ-45) cable.

Following are the steps to properly connect the Powerline Adapter to your computer:

1． Connect one end of the provided Ethernet (RJ-45) cable to the Powerline Adapter’s Ethernet port.

2． Connect the other end of the Ethernet (RJ-45) cable to you computer’s LAN port.

3． Plug the Powerline Adapter into a wall socket next to the computer.

4． Turn on your computer.

5． Check and confirm that the

Power LED and Ethernet LED on the Powerline Adapter are

ON.

The hardware connection mechanism is shown below:
