Tp-Link TL-SC2020 [15/46] Windows web browser
![Tp-Link TL-SC2020 [15/46] Windows web browser](/views2/1042495/page15/bgf.png)
11
3.2 Windows Web Browser .2 Windows Web Browser
The configuration of browser is similar in Windows XP/Vista/7. Here we take IE browser in Windows XP
for example.
The configuration of browser is similar in Windows XP/Vista/7. Here we take IE browser in Windows XP
for example.
1 Click Link to IE button in Figure 3-4 directly. You can also launch your web browser and then enter
the IP
address or host name of the Camera in the Location / Address field of your browser.
1 C
lick Link to IE button in Figure 3-4 directly. You can also launch your web browser and then enter
the IP
address or host name of the Camera in the Location / Address field of your browser.

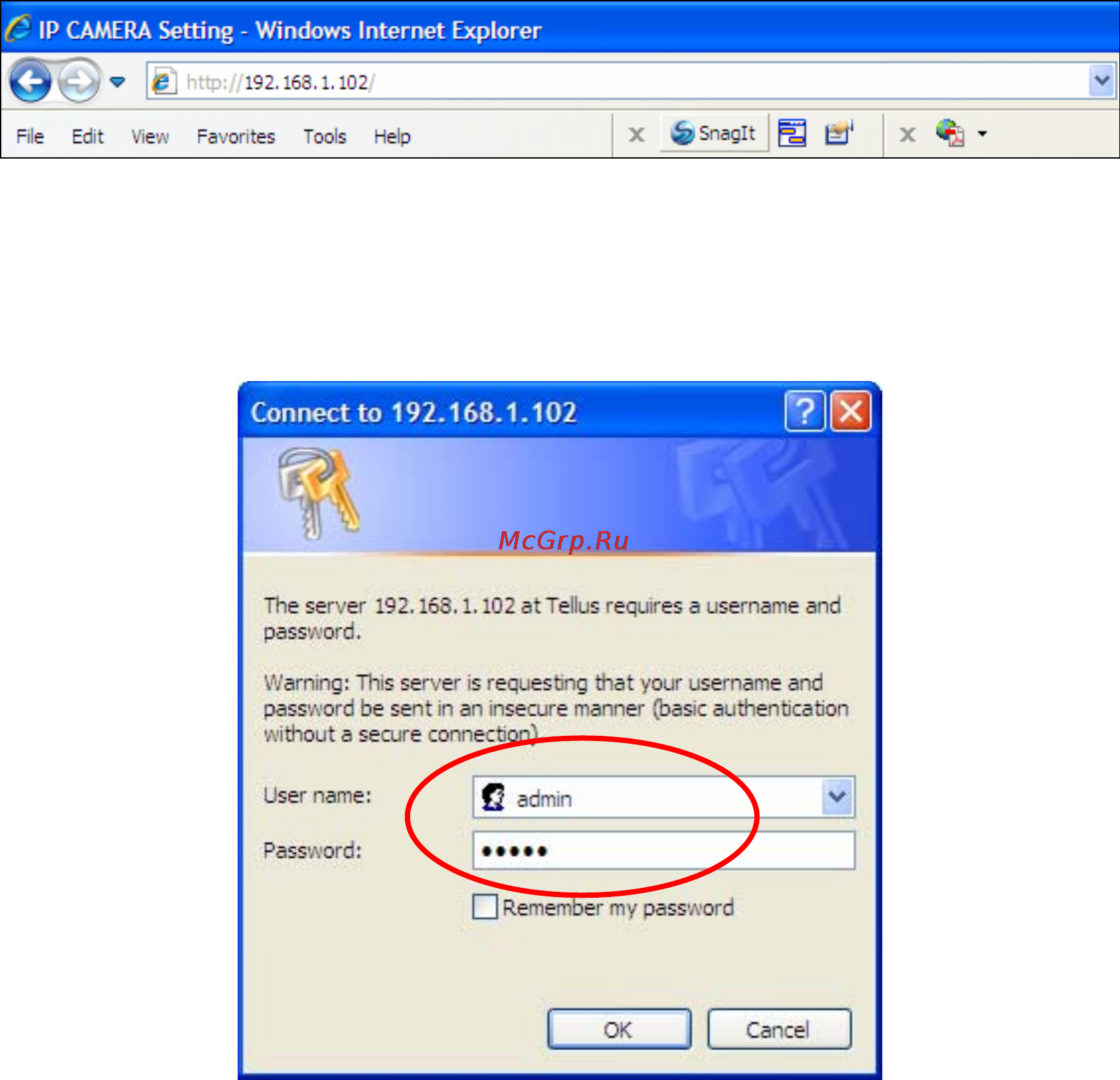

2 Use the default User name admin and default Password admin.
Note:
The default User name “admin” and the Password “admin” are set at the factory for the administrator.
You can change them in the Account Menu. (Please check “Basic setup → Account”)
