Инструкция по эксплуатации Страница: 40

Tp-Link TL-SC2020 [40/46] Language

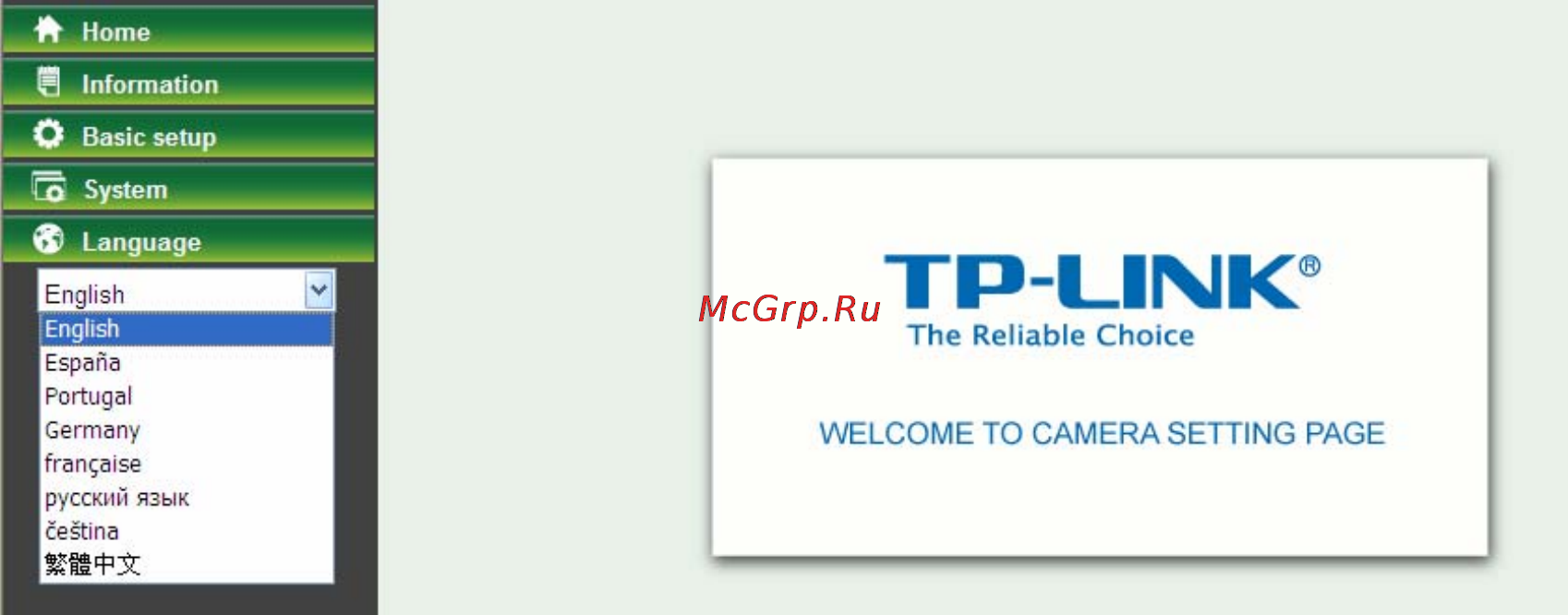

5.5 Language

Select a language from the drop-down list, the present display language of WEB User Interface will be

changed.
