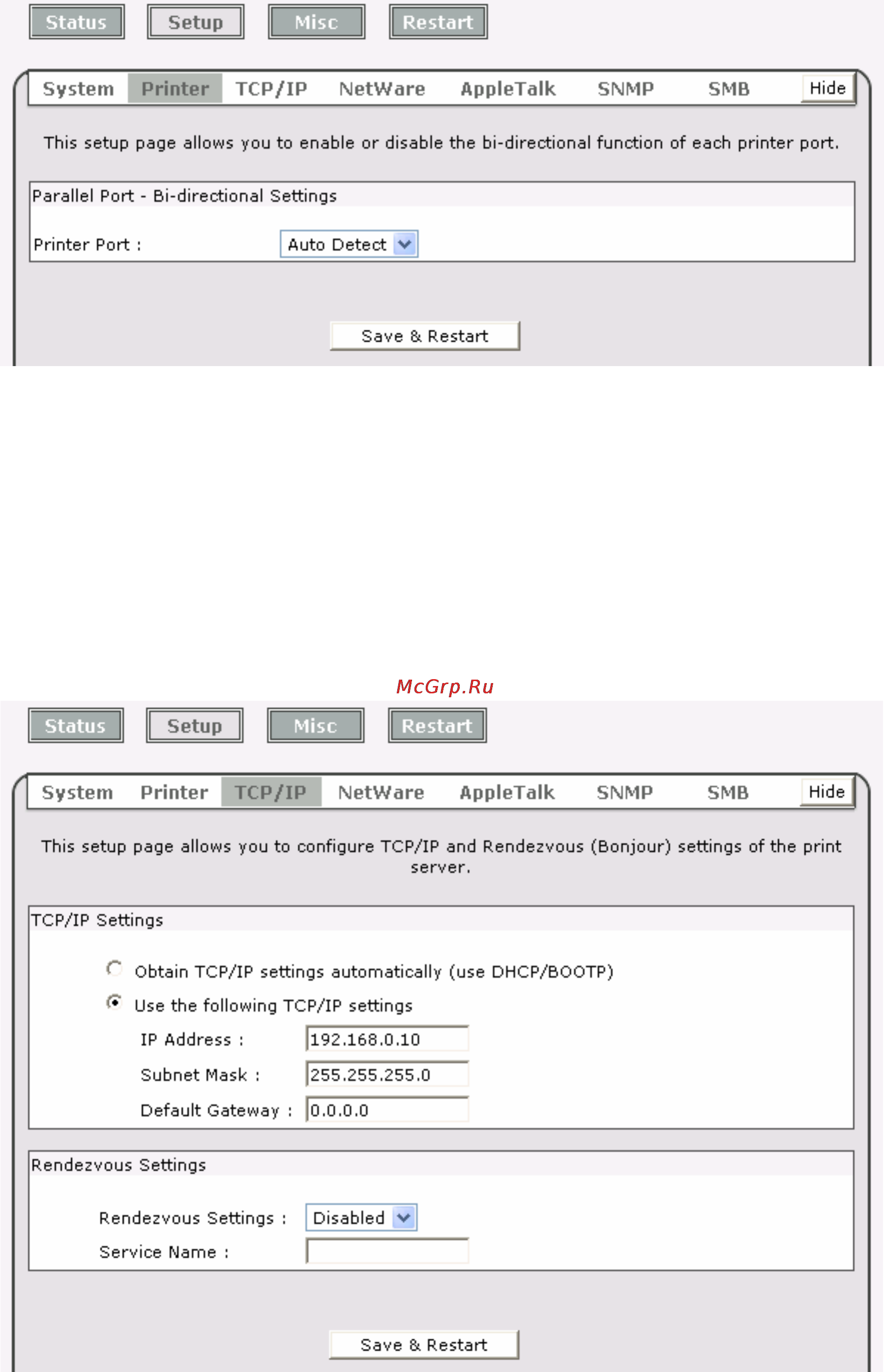

Bi-directional Settings: This option allows you to select the bi-directional of the print server.
There are two ways to select this option, includes Disable or Auto Detect.
TCP/IP Setup:
3. Click Setup, it then appears the sub-menu.
4. Click TCP/IP, it then as shown in the following picture.
39
