Tp-Link TL-PS110P [47/83] Reparation
![Tp-Link TL-PS110P [47/83] Reparation](/views2/1042510/page47/bg2f.png)
r supports the SMB (Server Message Block) protocol, user can send the printThe print serve
jobs through Network Neighborhood without installing print server’s driver.

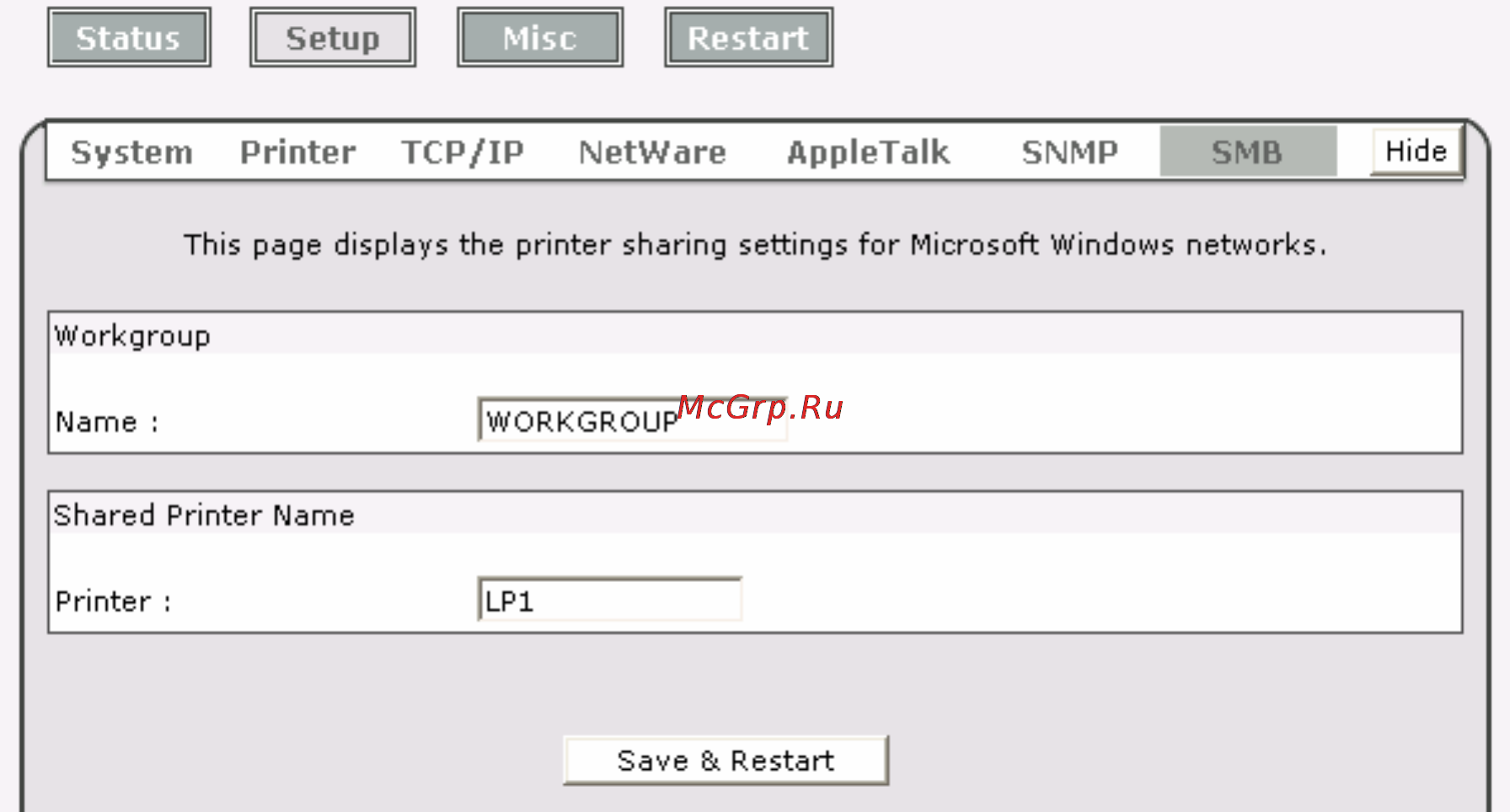

. Click Setup, it appears the sub-menu.
it as shown in the following picture.
1
2. Click SMB,
3. Workgroup Name: This option allows you to assign a workgroup name to print server on
the Network Neighborhood. Windows uses it to identify the print server on the Network.
4. Shared Name: This option allows you to assign a name to print server’s port.
. Network Print Monitor
reparation
The print server supports TCP/IP, IPX/SPX and NetBEUI protocols under Windows
95/98/Me. Please make sure that the following steps have been completed before
proceeding with installation under Windows PC.
6
P
47
