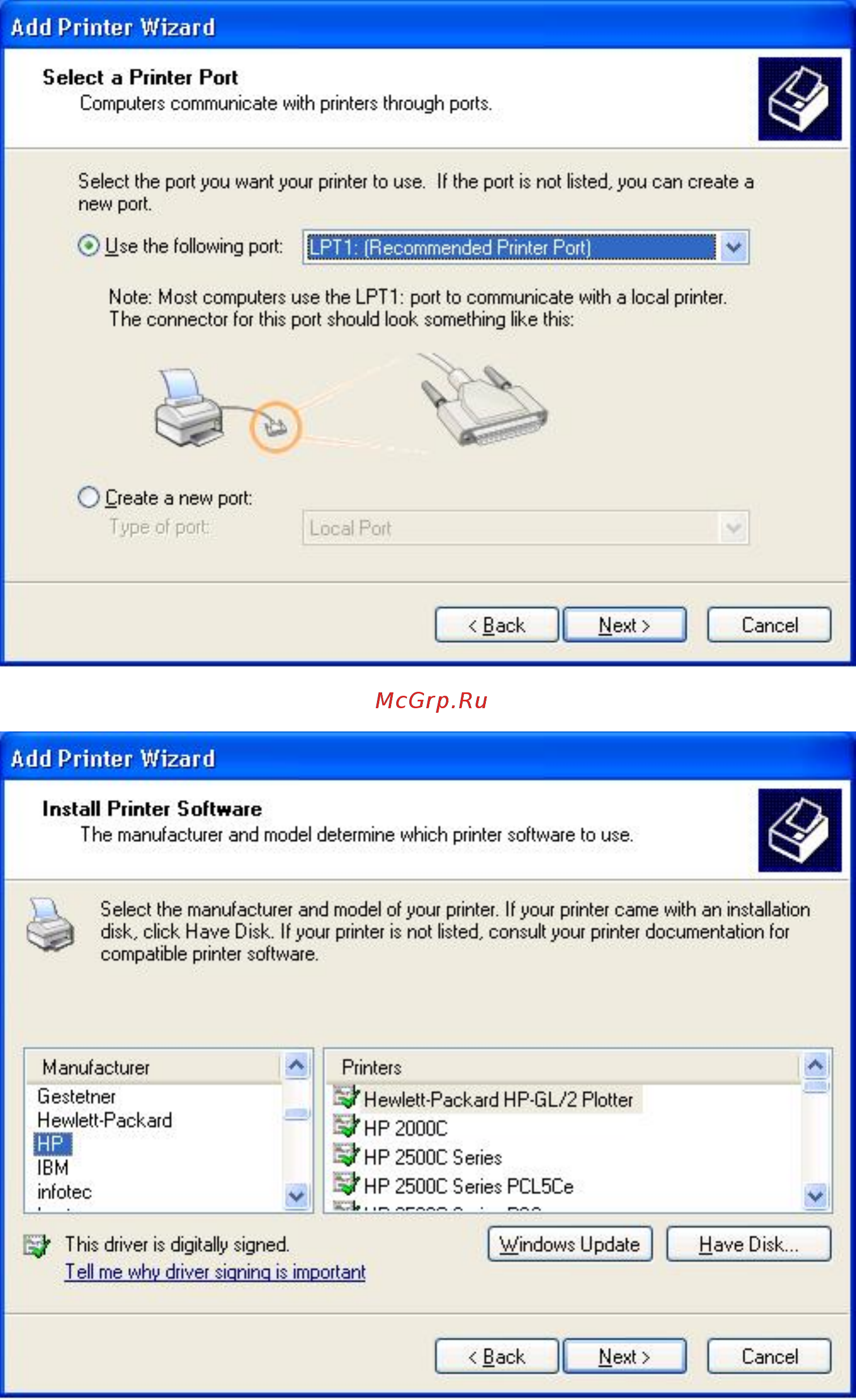

10. Make sure the Use the following port radio-button is clicked and select LPT1:
(recommended Printer Port) from the pull-down list. Then click Next.
11. Select Manufacturer and Printer from the lists of printer’s driver. Then click Next.
15
