TD-8810 ADSL2+ Modem Router User Guide

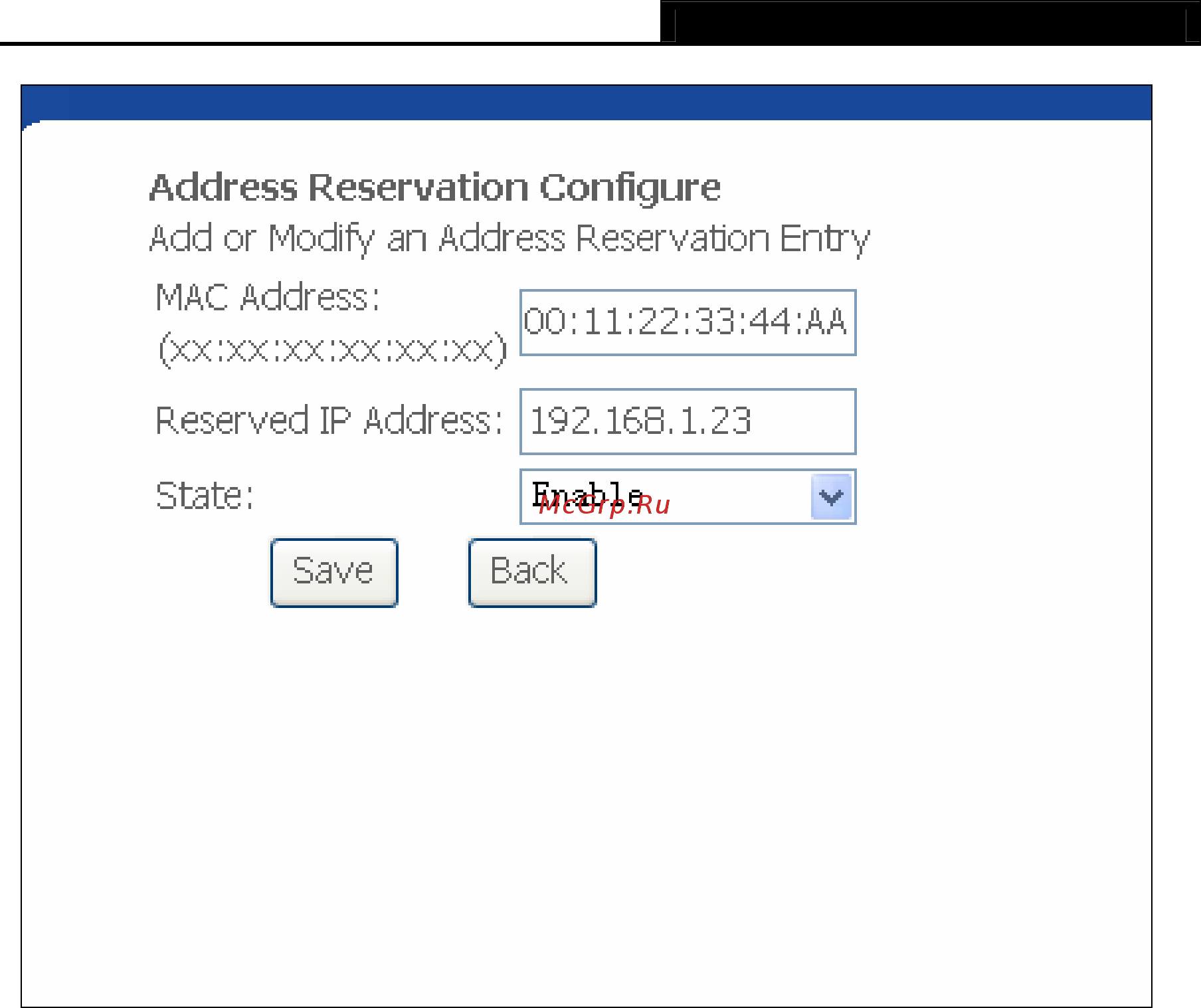

Figure 4-23

3. Enter the MAC address in XX:XX:XX:XX:XX:XX format and reserved IP address in

dotted-decimal notation of the computer for which you want to reserve an IP address.

)

Note:

The MAC Address and IP Address added in Figure 4-23 are used for illustrating. They

may be different to your circs.

4. Select Enab

le from the State drop-down list.

5. Click the Save button, then you will go back to the Address Reservation screen and

see the new entry as shown in Figure 4-22.

6. Click Save/Reboot button to save the

settings and reboot the Router.

)

Note:

The function won't take effect until the router reboots.

4.3.3 MAC Clone

Choose “Advanced Setup→MAC Clone” menu, you can configure the MAC address of the

WAN on the screen as shown in Figure 4-24.
