TD-W8951ND 150Mbps Wireless N ADSL2+ Modem Router User Guide

Chapter 2. Hardware Installation

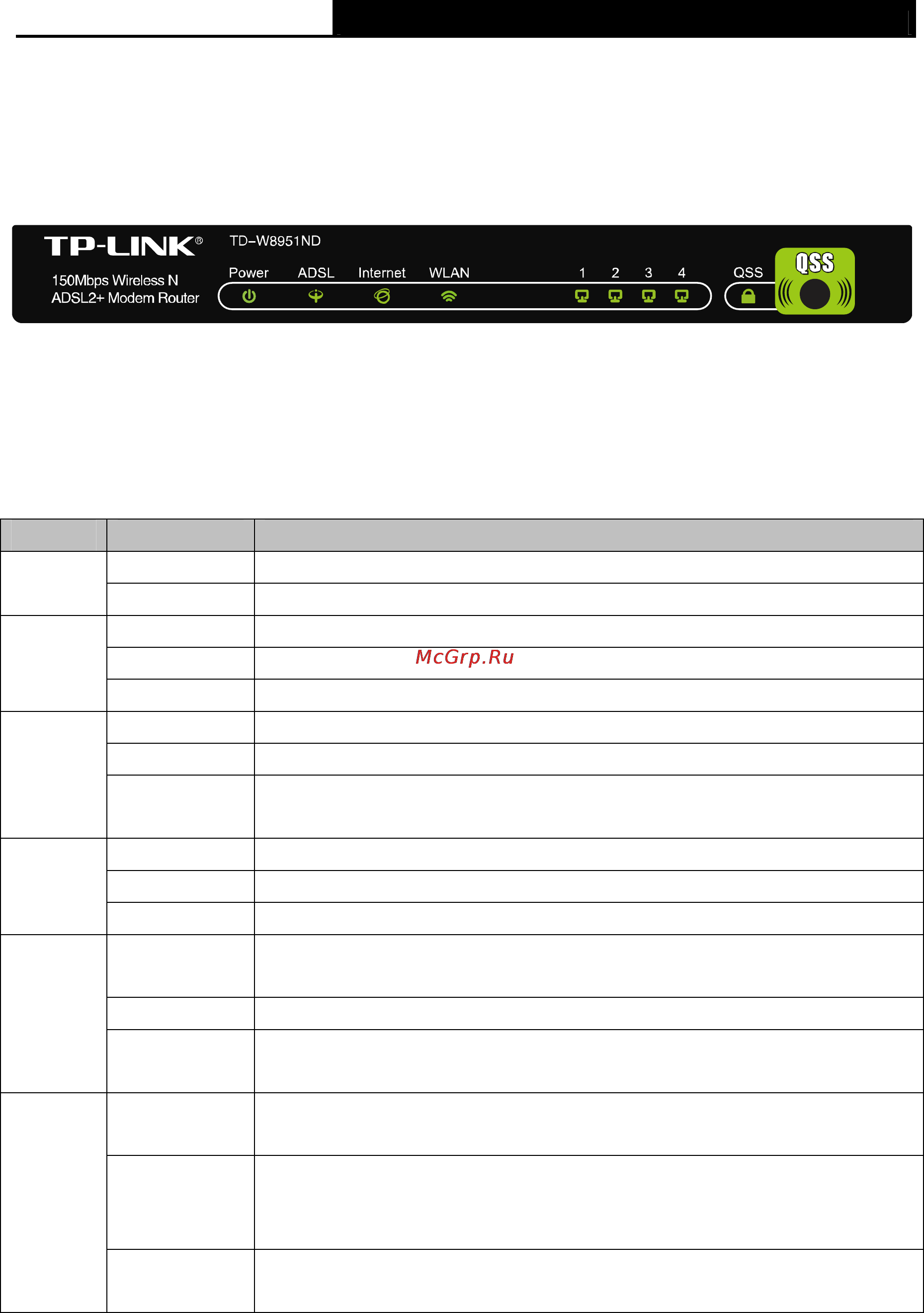

2.1 The Front Panel

Figure 2-1

The LEDs locate on the front panel. They indicate the device’s working status. For details, please

refer to LED Explanation.

LED Explanation:

Name Status Indication

On Power is on.

Power

Off Power is off.

On The LINE port is linked up.

Flash The ADSL negotiation is in progress.

ADSL

Off The LINE port is linked down.

On A successful PPP connection has been built.

Flash Data is being transferred over the Internet.

Internet

Off

There is no successful PPP connection or the Router works on Bridge

mode.

On The wireless function is enabled but no data is being transmitted.

Flash There is wireless data being transmitted.

WLAN

Off The wireless function is disabled.

There is a successful connection on the corresponding 1-4 （LAN）

port but no activity.

Flash Data is being transferred over the 1-4 (LAN) port.

LAN(1-4)

Off

There is no connection on the corresponding 1-4 (LAN) port or the

connection is abnormal.

A wireless device has been successfully added to the network by QSS

function. The LED will keep on for about 5 minutes and then turn off.

Flash

The QSS function is enabled but no wireless device has been

successfully added to the network by QSS function. The LED will keep

flash for about 2 minutes and then turn off.

QSS

Off

The QSS function is disabled or a wireless device failed to be added to

the network by QSS function.
