TD-W8951ND 150Mbps Wireless N ADSL2+ Modem Router User Guide

¾ Static/Dynamic IP Address: For PPPoA/PPPoE connection, you need to specify the public

IP address for this ADSL Router. The IP address can be either dynamically (via DHCP) or

given IP address provided by your ISP. For Static IP, you need to specify the IP address,

Subnet Mask and Gateway IP address.

¾ Default Route: You should select Yes to configure the PVC as the default gateway to internet

from this device.

¾ MAC Spoofing: Enable the MAC Spoofing, and enter a MAC address to configure the WAN

port. It makes your inside network appear as a device with this MAC address to the outside

world.

4) Bridge Mode

If you select this type of connection, the modem can be configured to act as a bridging device

between your LAN and your ISP. Bridges are devices that enable two or more networks to

communicate as if they are two segments of the same physical LAN.

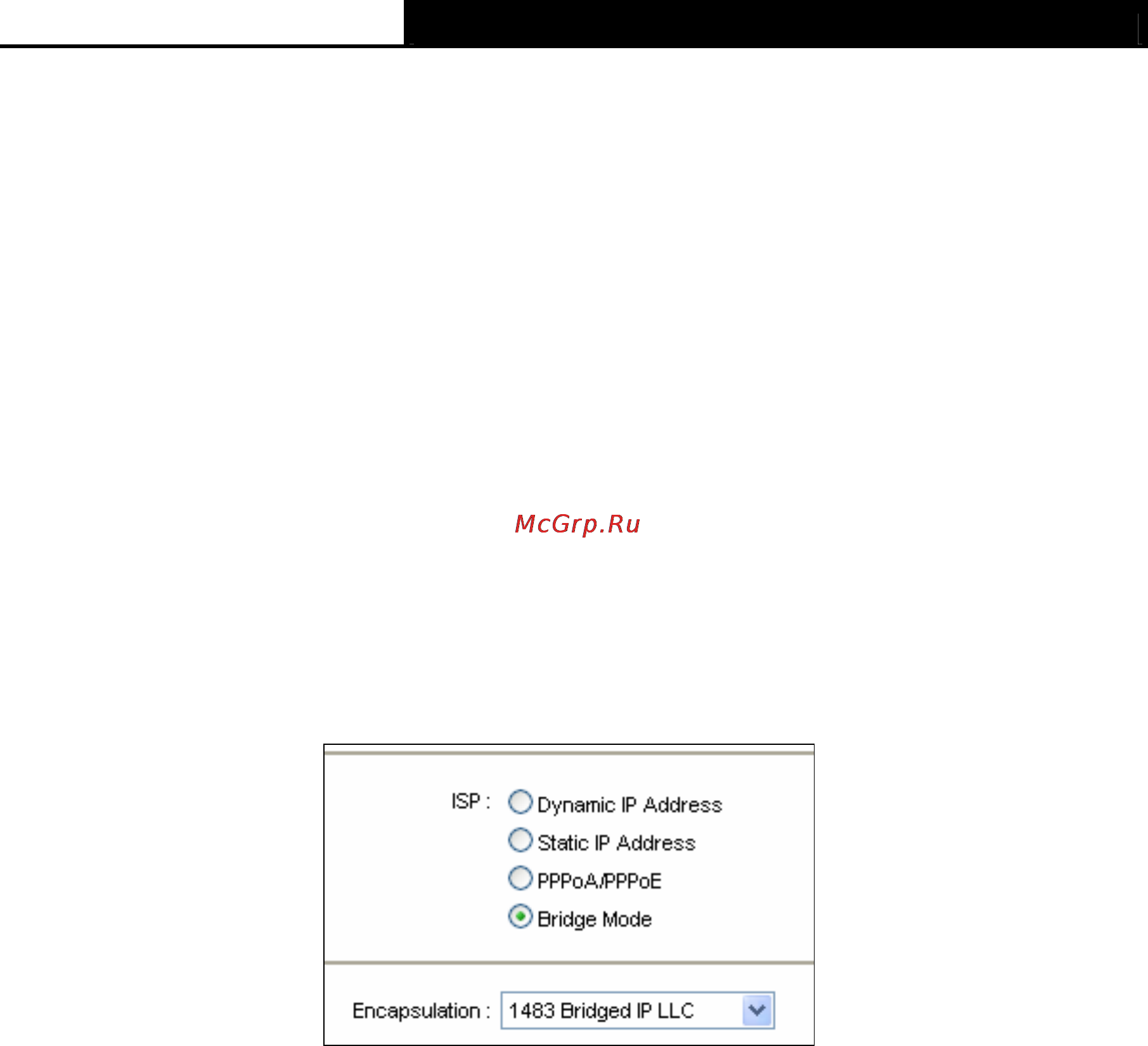

Figure 4-10

)

Note:

After you finish the Internet configuration, please click SAVE to make the settings take effect.

4.3.2 LAN

Choose “Interface Setup→LAN” menu, and you will see the LAN screen (shown in Figure 4-11).

Please configure the parameters for LAN ports according to the descriptions below.
