TL-WA801ND 300Mbps Wireless N Access Point User Guide

Chapter 3 Configure the PC

This chapter will guide you to configure your PC to communicate with the AP. The wireless

adapter-equipped computers in your network must be in the same IP Address range without

overlap with each other. Manually configure the IP address as 192.168.1.* (* is any integer

between 1 to 253), the Subnet mask as 255.255.255.0 for your PC by following the instructions

below.

Connect the local PCs to the LAN ports on the AP and configure the IP address manually for your

PCs.

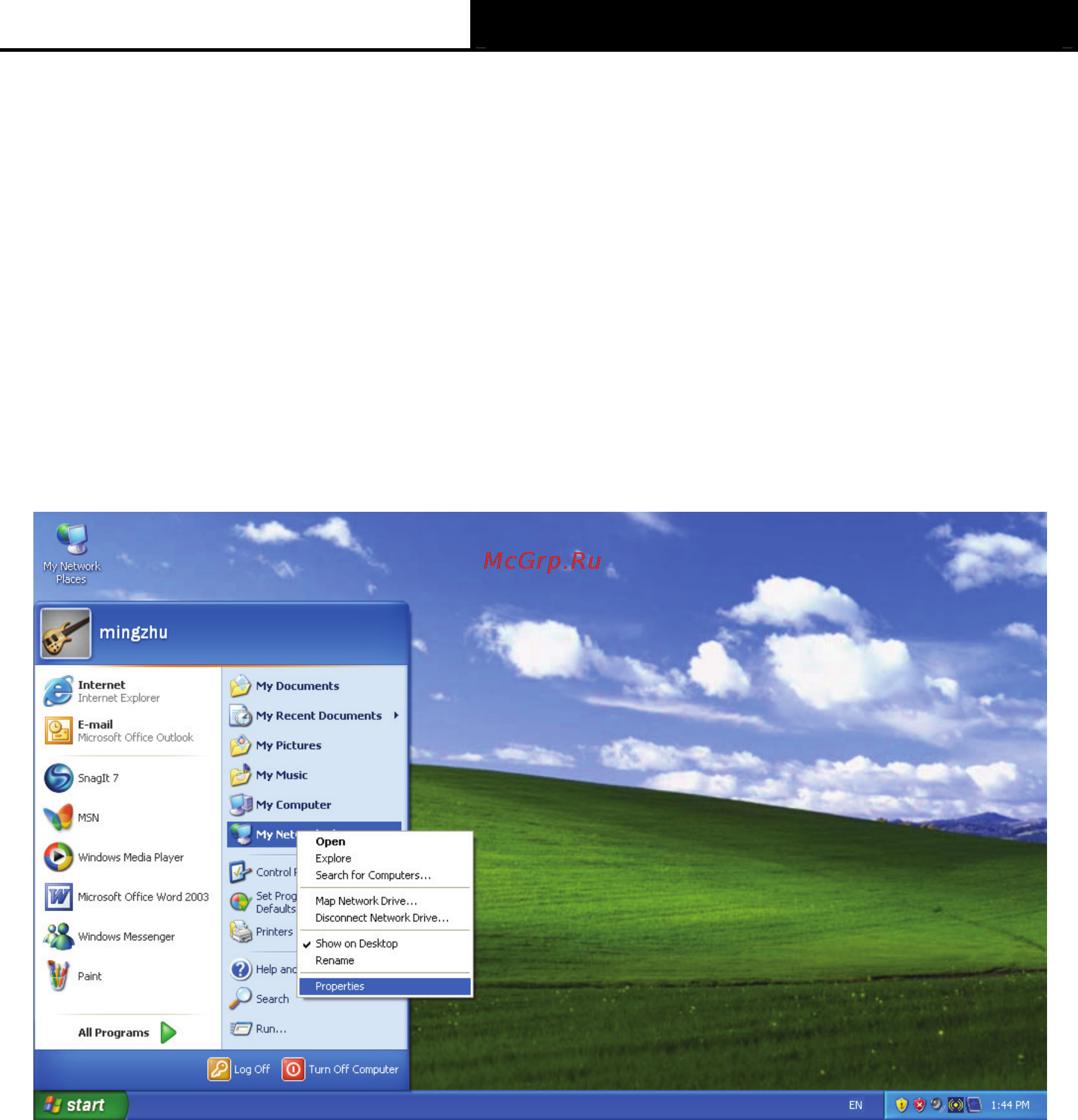

1. Click Start (in the lower left corner of the screen), right-click My Network Connections and

choose Properties.

Figure 3-1

2. On the My Network Connections window shown as Figure 3-2 below, right-click LAN (Local

Area Connection) and choose Properties.
