TL-R488T Load Balance Broadband Router User Guide

UDP datagram.

¾ Detect Result - The interval between sending datagram and recving datagram, uint is ms.

4.13.11 IP NAT Table

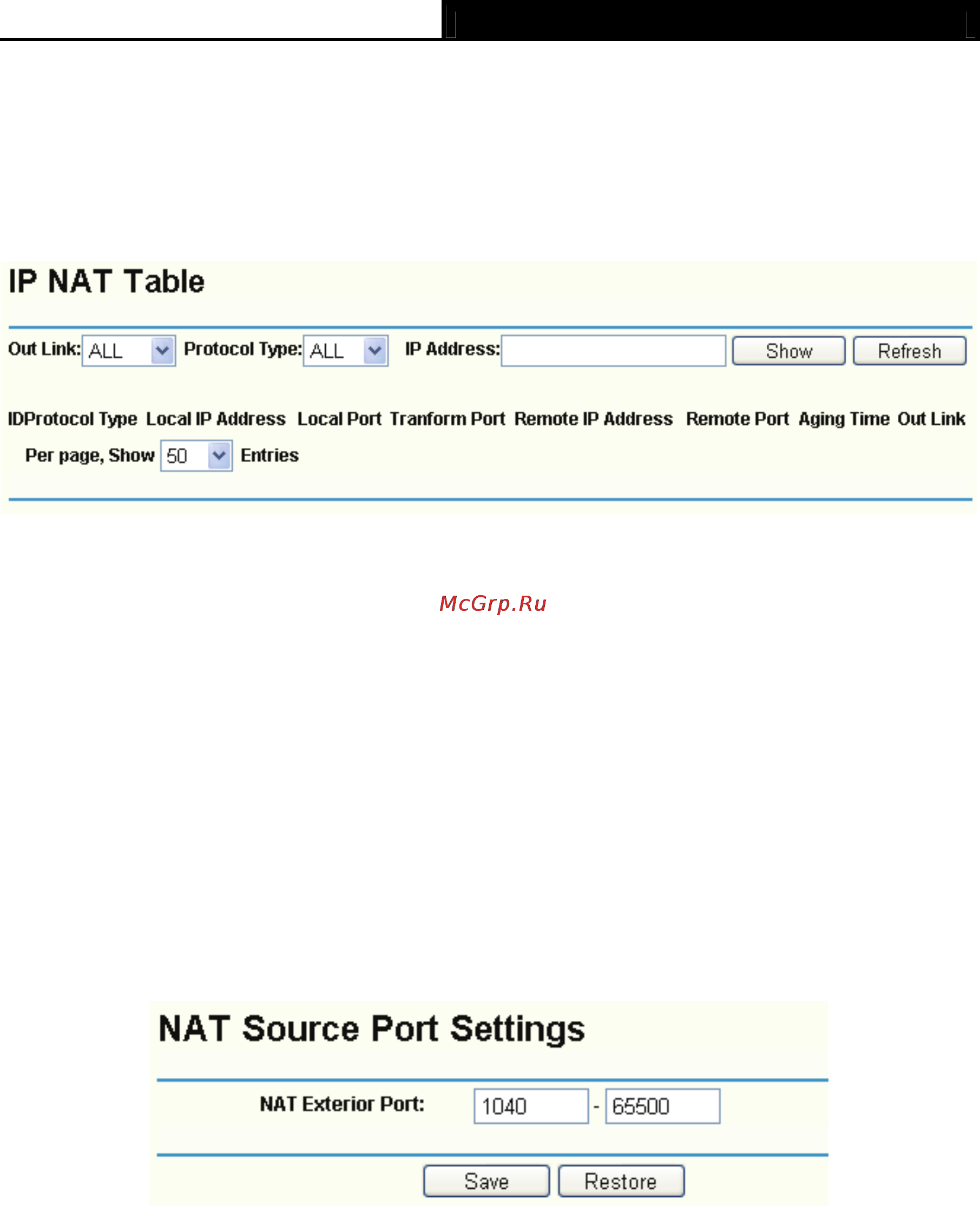

Choose menu “System Tools→IP NAT Table”, you will see the IP NAT in the table as below:

Figure 4-77

¾ Out Link - The WAN port which links the router.

¾ Protocol Type - The protocol which is used in the link.

¾ IP address - The local or remote IP address to be examined.

¾ Show - To examine the information which the local or remote IP address equals that you

input.

¾ Refresh - To get the latest status and settings of the router

¾ Per page - To set how many information entries a page show.

4.13.12 NAT Source Port Settings

Choose menu “System Tools→NAT Source Port Settings”, you can configure the rang of

exte-rior port for NAT.

Figure 4-78

Click the Restore button to restore the setting to default value- 1040-65500.
