Web Smart Gigabit Switch Family User's Guide

TL-SG2109WEB/TL-SL2210WEB/TL-SL2218WEB/TL-SL2428WEB/TL-SL2452WEB

In the case of IE5.0, please check the option “Every visit to the page”;

otherwise, some wrong information may display in WEB pages. If the

IE version is 6.0, “Every visit to the page” or “Automatically” are both

appropriate.

Click the “OK” button and complete this setting.

Thirdly, click the “Security” label of “Internet Options” dialog; press the

“Custom Level” button hinted in gure 5-3.

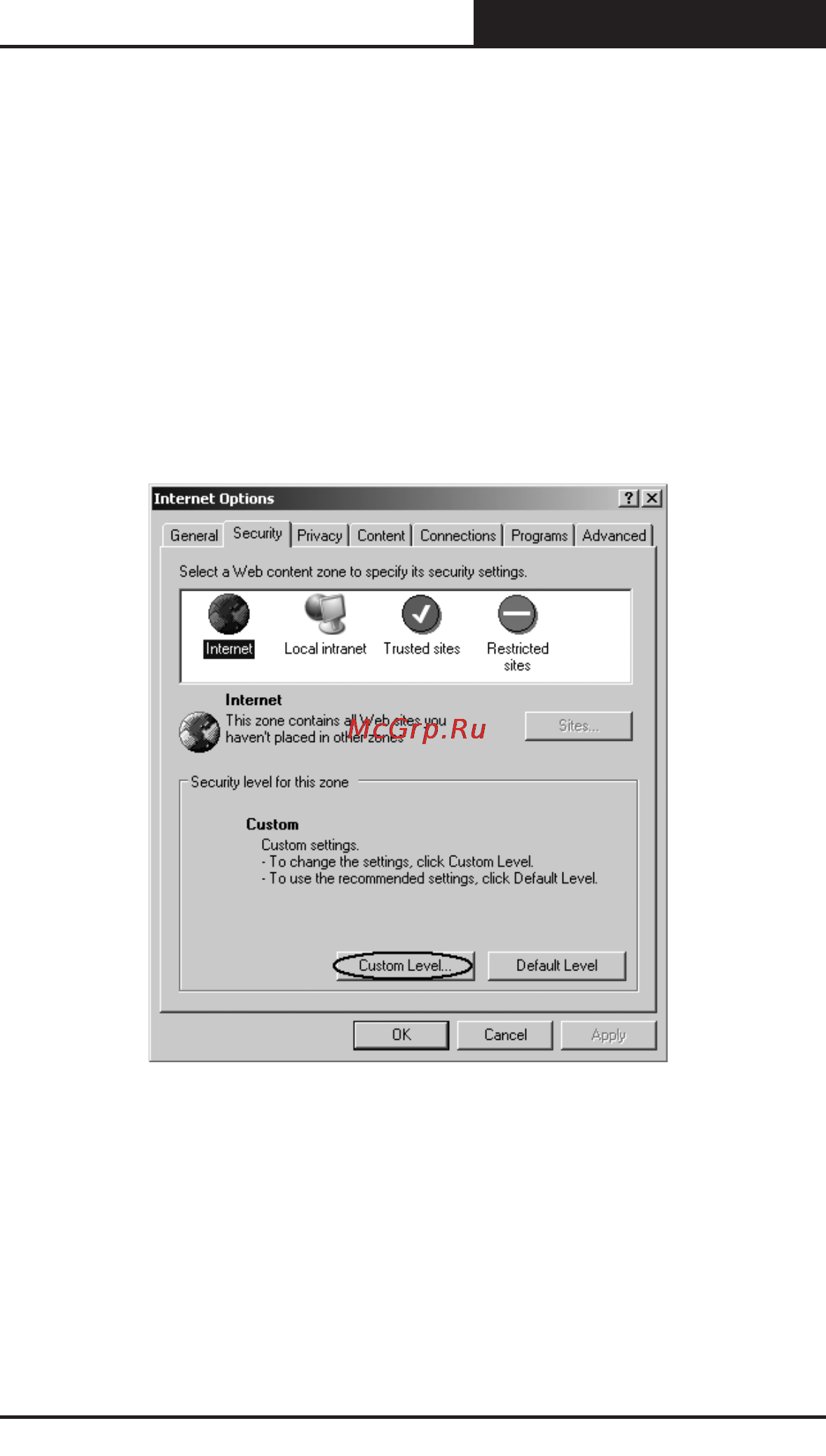

Figure 5-3 Internet Options Dialog

A dialog will display as below.
