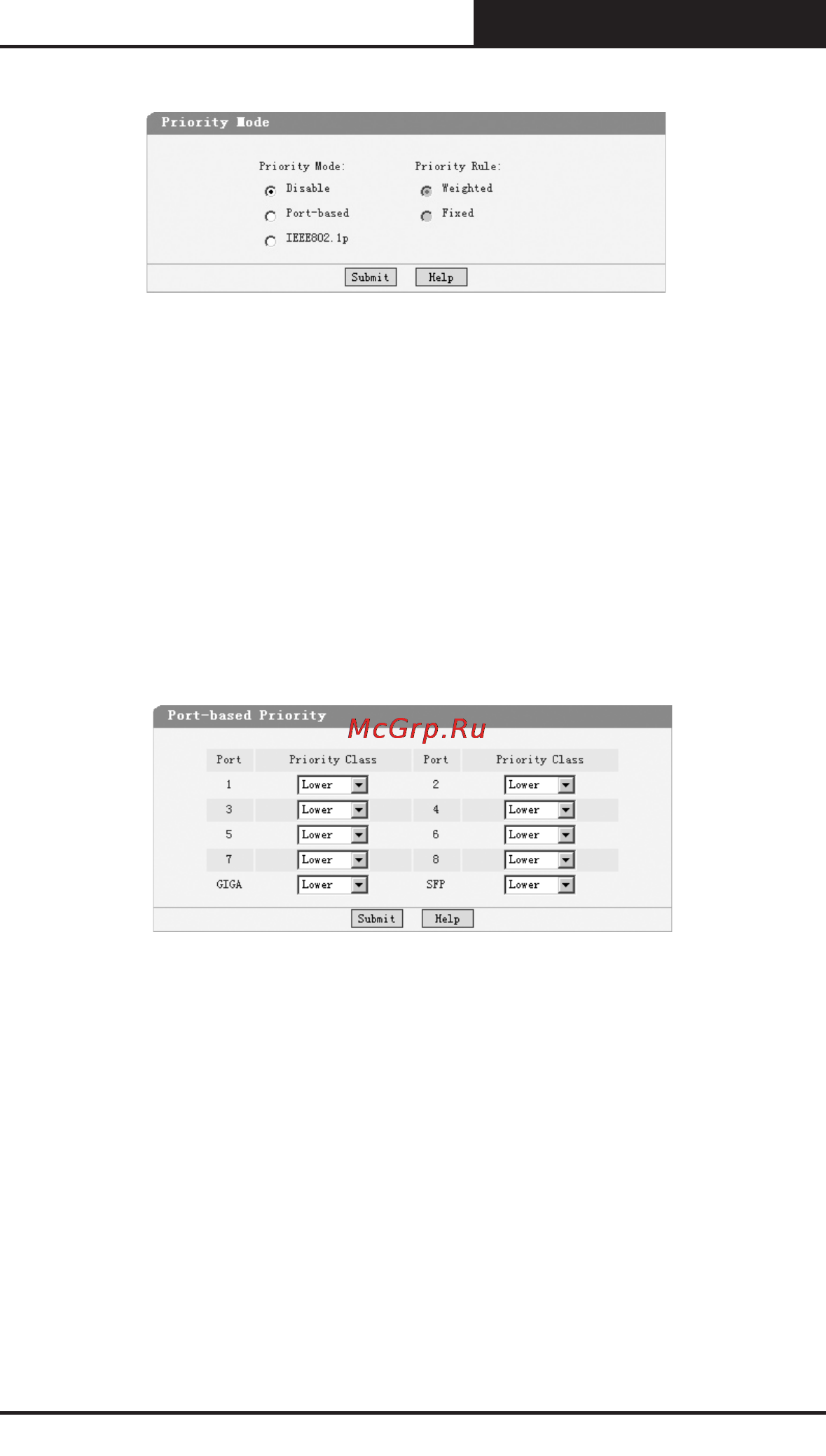

Figure 5-43 Priority Mode

Priority Mode: Contains “Disable”, “Port-Based” and “IEEE802.1p”.

Priority Rule: Contains “Weighted” and “Fixed”. If the priority mode is set

to “Disable”, the priority rule cannot be congured.

5.3.6.2 Port-Based Priority

This page is revealed when the “Port-Based” mode is congured. As shown

below.

Figure 5-44. Port-Based priority

Port: Indicates the switch port number.

Priority Class: In port-based priority mode, the switch ports are classied

into four priority classes: lowest, lower, higher and highest. All the packets

entering from the port of the switch are forwarded in the corresponding

priority queue.


