![Carrier 38AUZA14 [3/40] Fig 1 38au 07 14 unit dimensions](/img/pdf.png)
Carrier 38AUZA14 [3/40] Fig 1 38au 07 14 unit dimensions
![Carrier 38AUZA14 [3/40] Fig 1 38au 07 14 unit dimensions](/views2/1427905/page3/bg3.png)
3

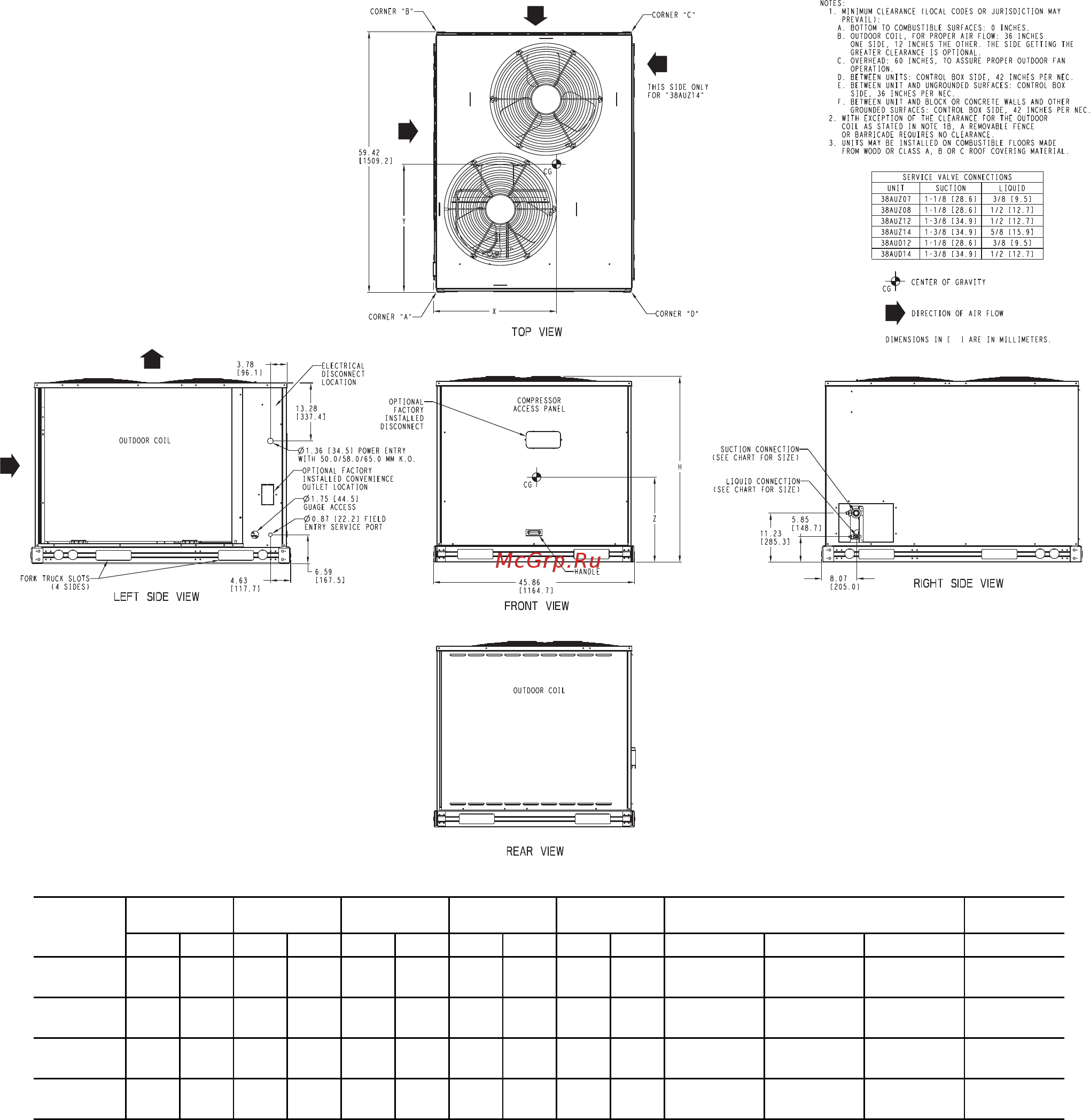

Fig. 1 — 38AU*07-14 Unit Dimensions
UNIT
Standard
Weight
Corner
A
Corner
B
Corner
C
Corner
D
Center of Gravity Unit Height
lbs. kg. lbs. kg. lbs. kg. lbs. kg. lbs. kg. X Y Z H
38AUZ*07
328 149 128 58 68 31 62 28 70 32
21.00
[533.4]
19.00
[482.6]
13.00
[330.2]
42.36
[1076.0]
38AUZ*08
353 160 138 63 72 33 65 29 78 35
19.00
[482.6]
23.00
[584.2]
13.00
[330.2]
42.36
[1076.0]
38AUD*12
499 226 193 88 111 50 72 38 123 56
20.000
[508.0]
23.00
[584.2]
15.00
[381.0]
50.36
[1279.2]
38AUD*14
505 229 190 86 88 40 76 34 151 68
20.000
[508.0]
24.00
[609.6]
15.00
[381.0]
50.36
[1279.2]
