10/100 Fast Ethernet Switch User’s Guide

Next, make sure that the device is powered off and then remove the

plain bracket on the front of the switch.

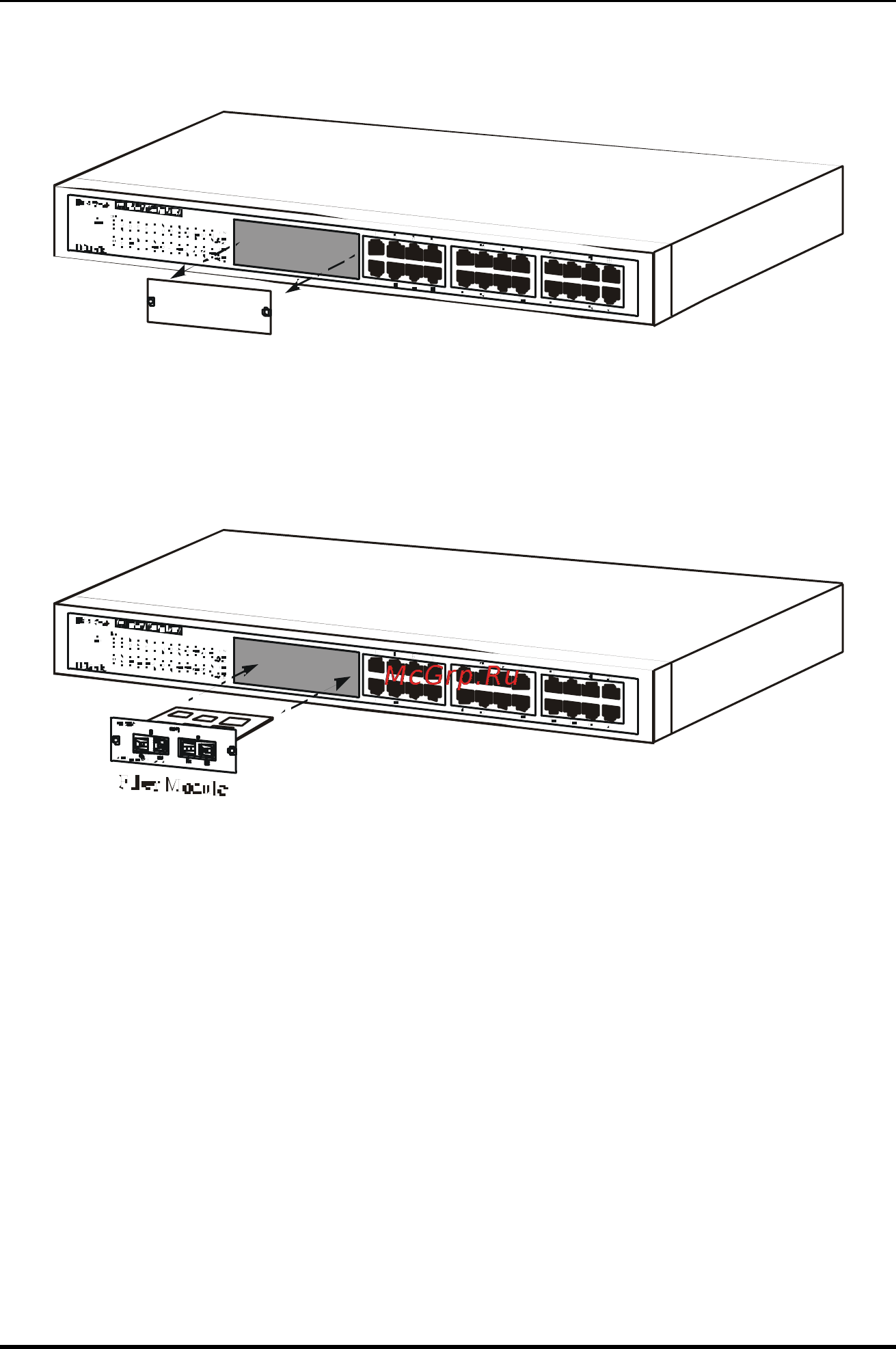

Figure 2.4 Removing the plain bracket

After removing the plain bracket, slide the module in the guide rails all

the way into the slot and secure the screws.

Figure 2.5 Sliding the module into position

When properly installed, the Slot LED will be lit after powering on the

Switch (see Chapter 3 for more information about LEDs, including a

diagram).

Note: Always remember to turn off the power before a module is inserted

or removed.
