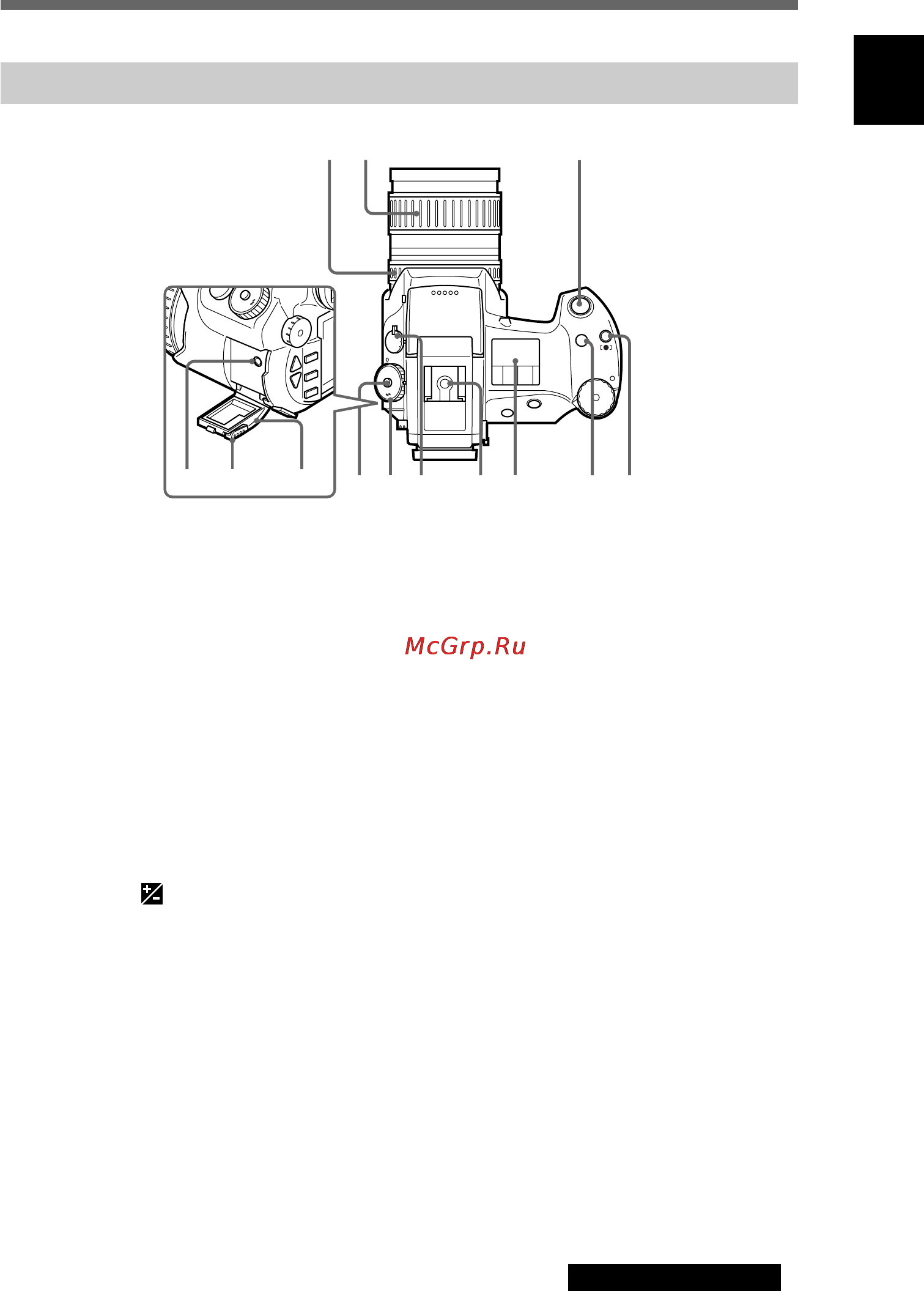

Locations and Functions of Parts
Top
EV
R-REVIEW
AE-LOCK
ISO
USER
SIZE
QUAL
DRIVE
WB
AE
ISO
US
SIZE
QUAL
DRIVE
WB
AE
A
2 31
!™
48 7
0
5!£
!¡
9 6
1 Focus Ring
Rotate left or right to adjust the focus.
2 Zoom Ring
Rotate left or right to adjust the zoom ratio of the zoom lens.
3 Release Button
Operates the shutter when shooting.
4 [r] (Spot Light Meter Reading Switch) Button
By turning the shift dial while pressing this button, you can choose from Spot (® Spot
light meter reading) or Average ([ ]: average light meter reading) to measure the light
needed for proper exposure.
5 (EV) Button
By turning the shift dial while pressing this button, you can correct the exposure when
taking pictures.
6 LCD Panel
Picture taking settings, such as shutter speed and aperture, are displayed on the LCD
panel.
7 Hot Shoe
Attach external flashes here.
8 Focus Mode Switch
Switches from auto to manual when the camera is in auto focus mode.
