TL-WR1043ND Wireless N Gigabit Router
-111-

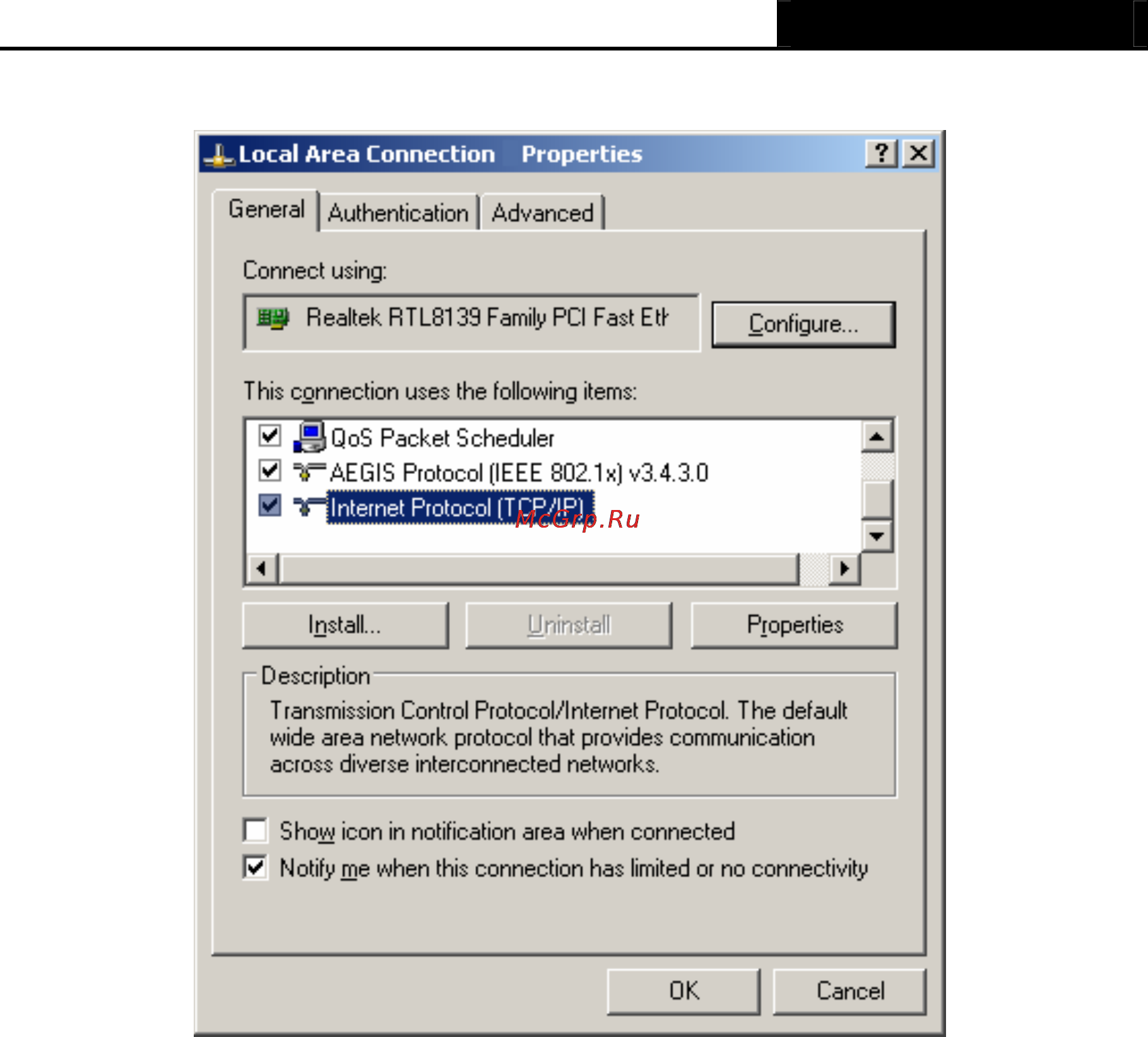

4) In the prompt page that showed below, double click on the Internet Protocol (TCP/IP).
Figure B-2
5) The following TCP/IP Properties window will display and the IP Address tab is open on
this window by default.
