TL-WR1043ND Wireless N Gigabit Router
-112-

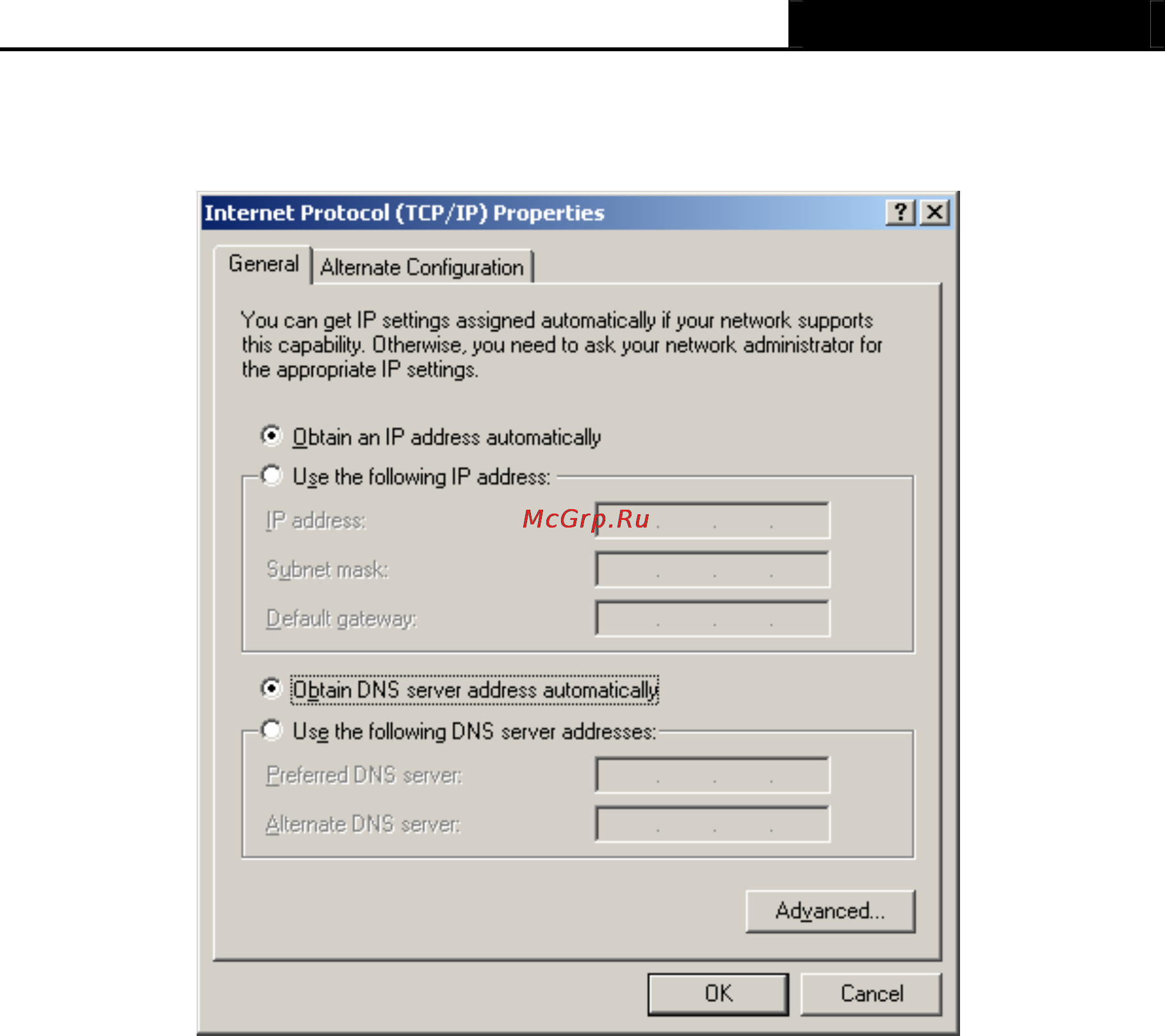

6) Select Obtain an IP address automatically and Obtain DNS server automatically, as
shown in the Figure below:
Figure B-3
