TL-WR1043ND Wireless N Gigabit Router
-70-

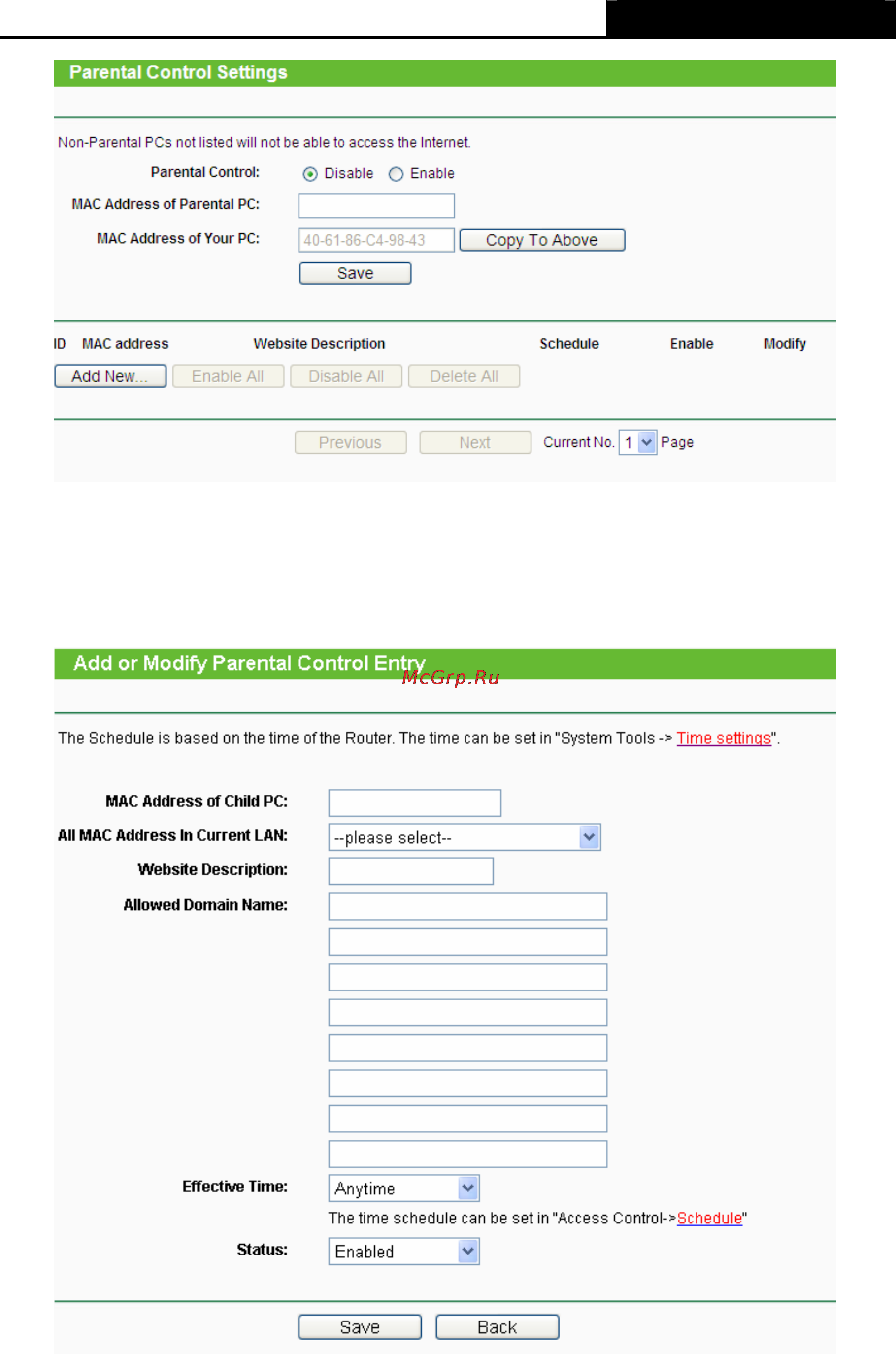

Figure 4-56 Parental Control Settings
To add a new entry, please follow the steps below.
1. Click the Add New… button and the next screen will pop-up as shown in Figure 4-57.
Figure 4-57 Add or Modify Parental Control Entry
¾
Parental Control - Check Enable if you want this function to take effect; otherwise,
check Disable.
