D-Link DES–1228 [12/28] Setup menu
![D-Link DES-1226G [12/28] Setup menu](/views2/1043237/page12/bgc.png)
12

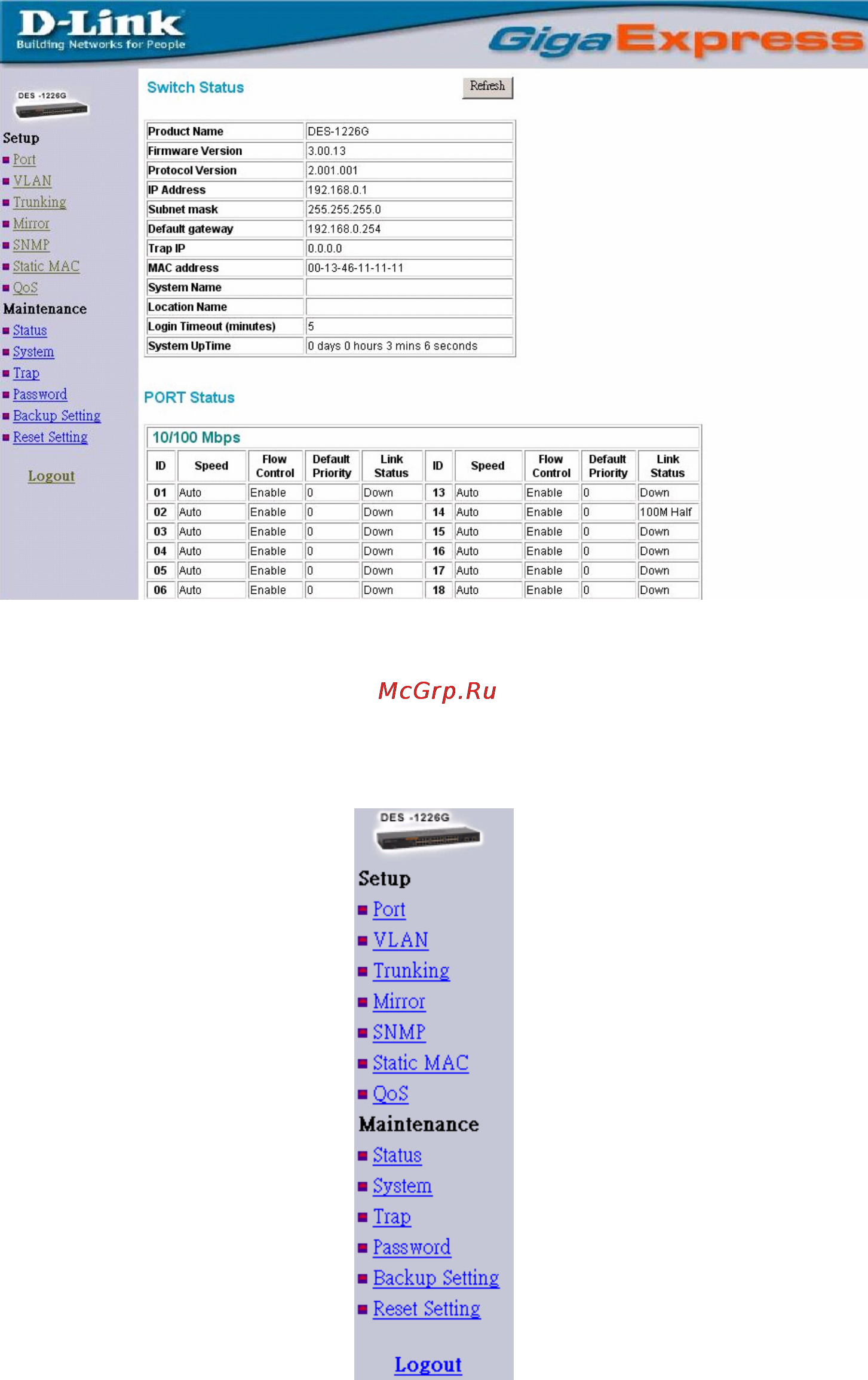

Figure 15. Device Status
Setup Menu
When the main page appears, find the Setup menu in the left side of the screen (Figure 15). Click on the setup item that you want to configure. There
are thirteen options: Port Settings, VLAN Settings, Trunk Setting, Mirror Setting, SNMP Setting, Static MAC, QoS Setting, Device Status, Statistic,
System Settings, Trap Setting, Password Setting, Backup Setting, and Reset Setting as shown in the Main Menu screen.
Figure 16. Setup menu
