Connections

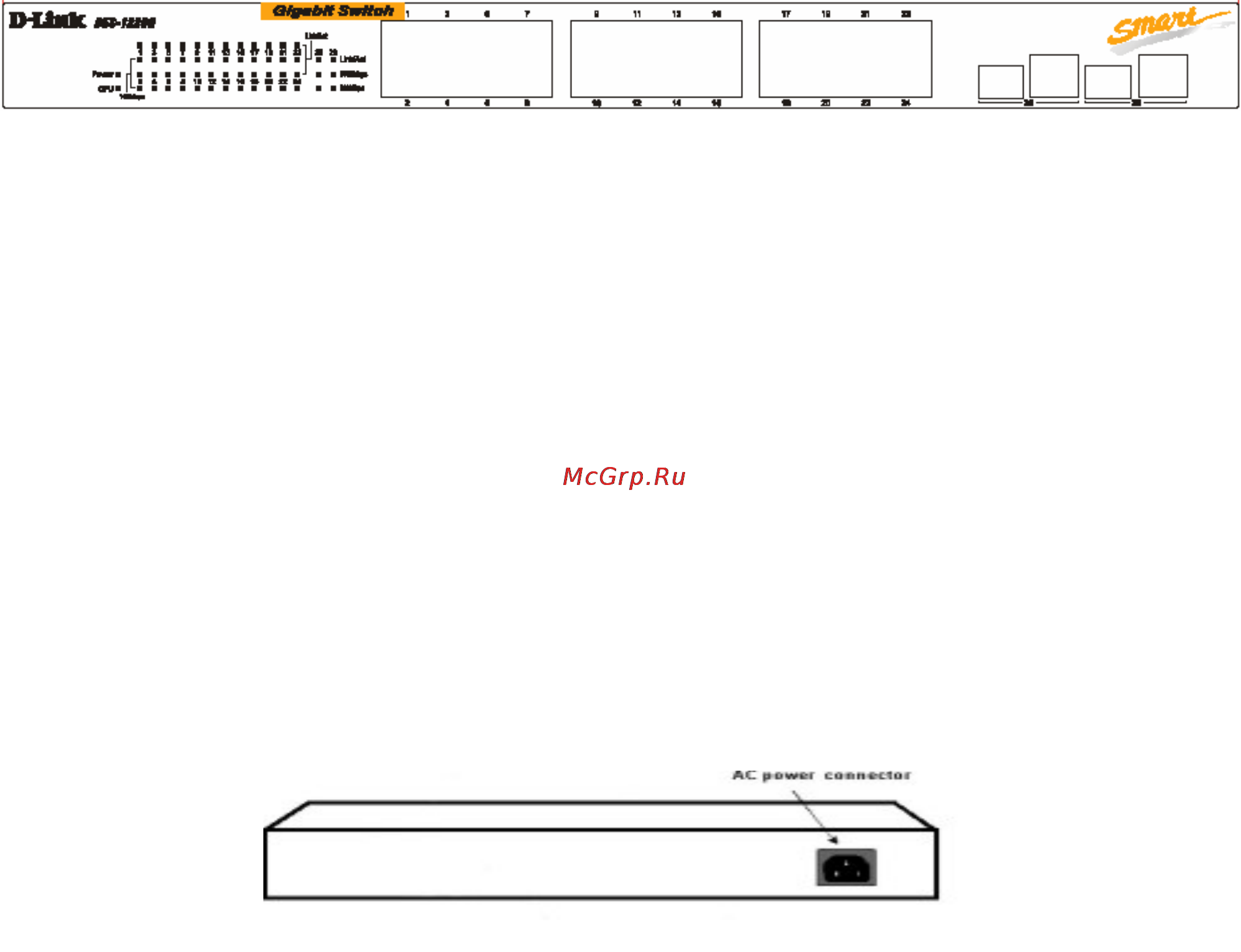

Front Panel

10/100 Base-TX Twisted-Pair Ports SFP(Mini GBIC) Ports

┌────────────────┐ ┌───┐

Figure 2. Front Panel

└──────┘ └───┘

LEDIndicators 10/100/1000Base-T

Twisted-Pair Ports

 10/100BASE-TX Twisted-Pair Ports (Port1~24)

These ports support network speeds of either 10Mbps or 100Mbps, and can operate in half- and full- duplex

transfer modes. These ports also support automatic MDI/MDI-X crossover detection, giving true “plug and play”

capability. Just plug the network cable directly into the hub; you can use either straight-through or crossover

cable.

 10/100/1000BASE-T Twisted Pair Ports (Port 25~26)

The DES-1226G is equipped with two Gigabit twisted pair ports that are auto negotiable 10/100/1000Mbps and

also support auto MDI/MDIX crossover detection. These two ports can operate in half- and full- duplex modes.

 SFP(Mini GBIC) Ports (Option Port 25~26)

The Switch is equipped with two SFP(Mini GBIC) ports, supported optional 1000BASE-X SFP(Mini GBIC)

module.

Note: When the port is set to “Forced Mode”, the Auto MDI/MDIX will be disabled.

Rear Panel

Figure 3. Rear Panel

 AC Power Connector

This is a three-pronged connector that supports the power cord. Plug in the female connector of the provided

power cord into this connector, and the male into a power outlet. Supported input voltages range from 100~240V

AC at 50~60Hz.

 Reset

The Reset button is to reset all the settings back to the factory defaults.

Note: Be sure that you record the settings of your device, or else all settings will be erased when pressing the

“Reset” button.

●

Reset

button
