11

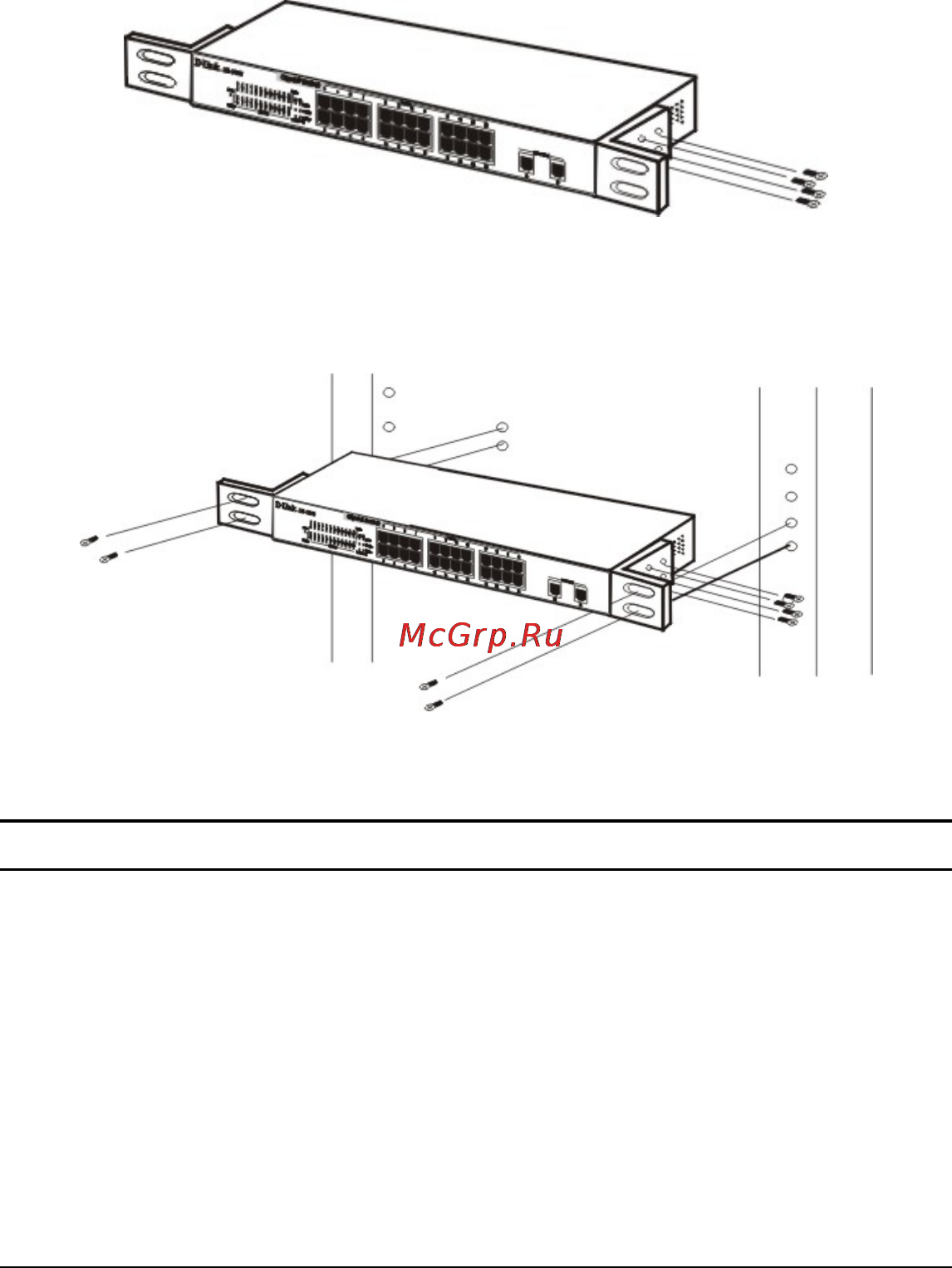

Figure 2 – Attach the mounting brackets to the Switch
Use the screws provided with the equipment rack or chassis to mount
the Switch in the rack.
Figure 3 – Mount the Switch in the rack or chassis
Connecting Network Cable
The Switch supports 1000Mbps Gigabit Ethernet that can operate in
Auto-negotiate mode, and 10Mbps Ethernet or 100Mbps Fast Ethernet
modes that run both in half and full duplex modes, as well as
1000Mbps Gigabit Ethernet that runs in full duplex mode, all while
connected to four-pair Category 5 Cables.
The twenty four RJ-45 ports are all Auto-MDI type ports. The Switch
can auto transform to MDI-II or MDI-X type, therefore connections
with standard or crossover RJ45 cables are both supported.
