11
of the ports. The LED indicators blink whenever there is
reception or transmission (i.e. Activity--Act) of data occurring
at a port.
FDX/COL. These LED indicators are lit when their respective
ports are in full duplex mode . Otherwise, they are blinking
when collisions are occurring on the respective ports.
Rear Panel

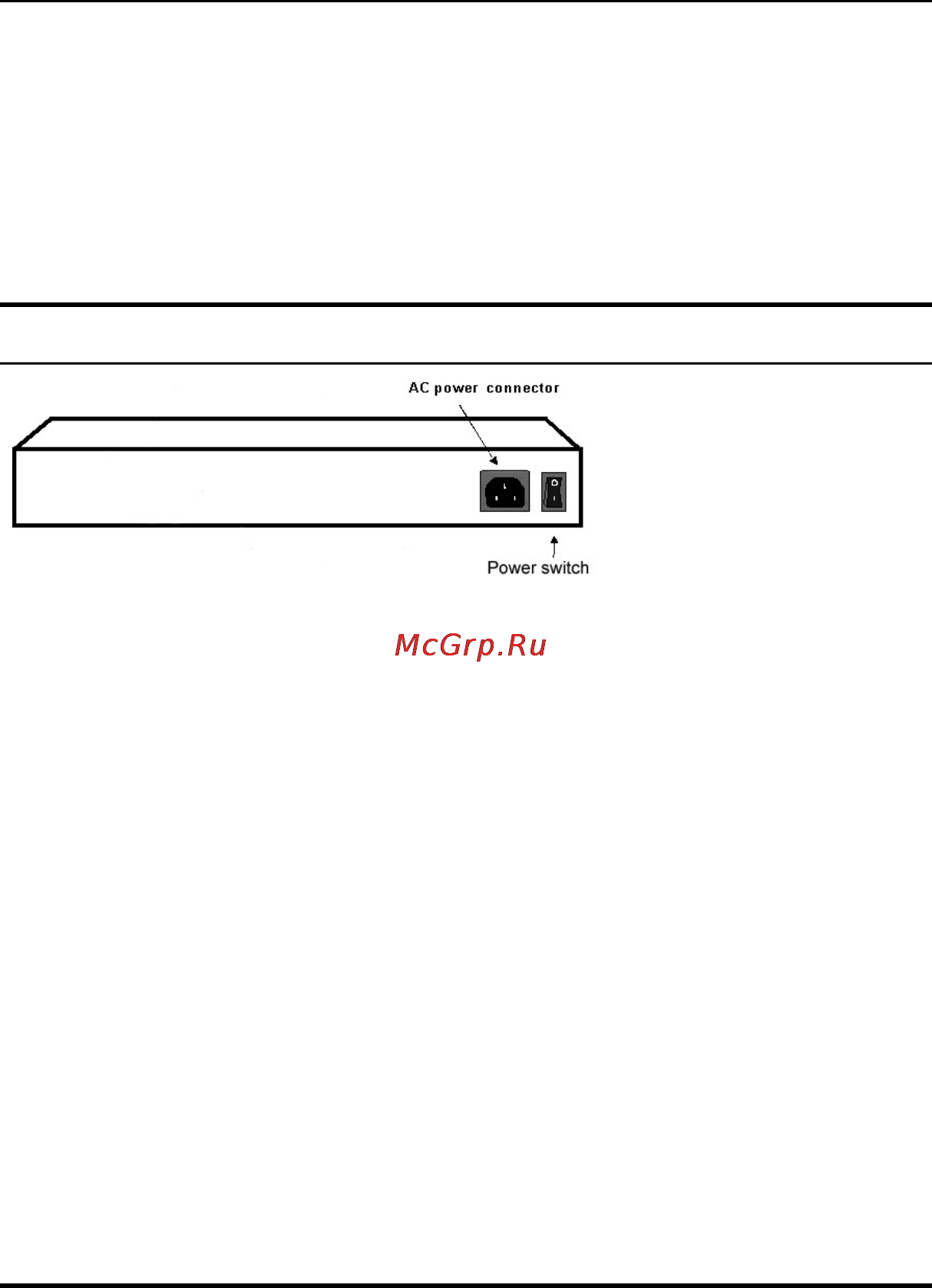

The rear panel of the Switch
AC Power Connector This is a three-pronged connector that
supports the power cord. Supported input voltages range from
100 ~ 240 VAC at 50 ~ 60 Hz.
