TL-WN722N 150Mbps High Gain Wireless USB Adapter
28
highest priority and the same SSID as one of the found networks will be used to connect to the
network. If the connection fails, the client adapter will try the next highest priority profile that
matches the SSID until an available network is found.
3.1.3 Diagnostics
The Diagnostics tab of the TP-LINK Wireless Client Utility (TWCU) provides buttons used to
retrieve receiving and transmitting statistics. The Diagnostics tab does not require any
configuration.
The Diagnostics tab lists the following receiving and transmitting diagnostics for frames received
or transmitted by the wireless network adapter:
¾ Multicast frames transmitted and received
¾ Broadcast frames transmitted and received
¾ Unicast frames transmitted and received
¾ Total bytes transmitted and received

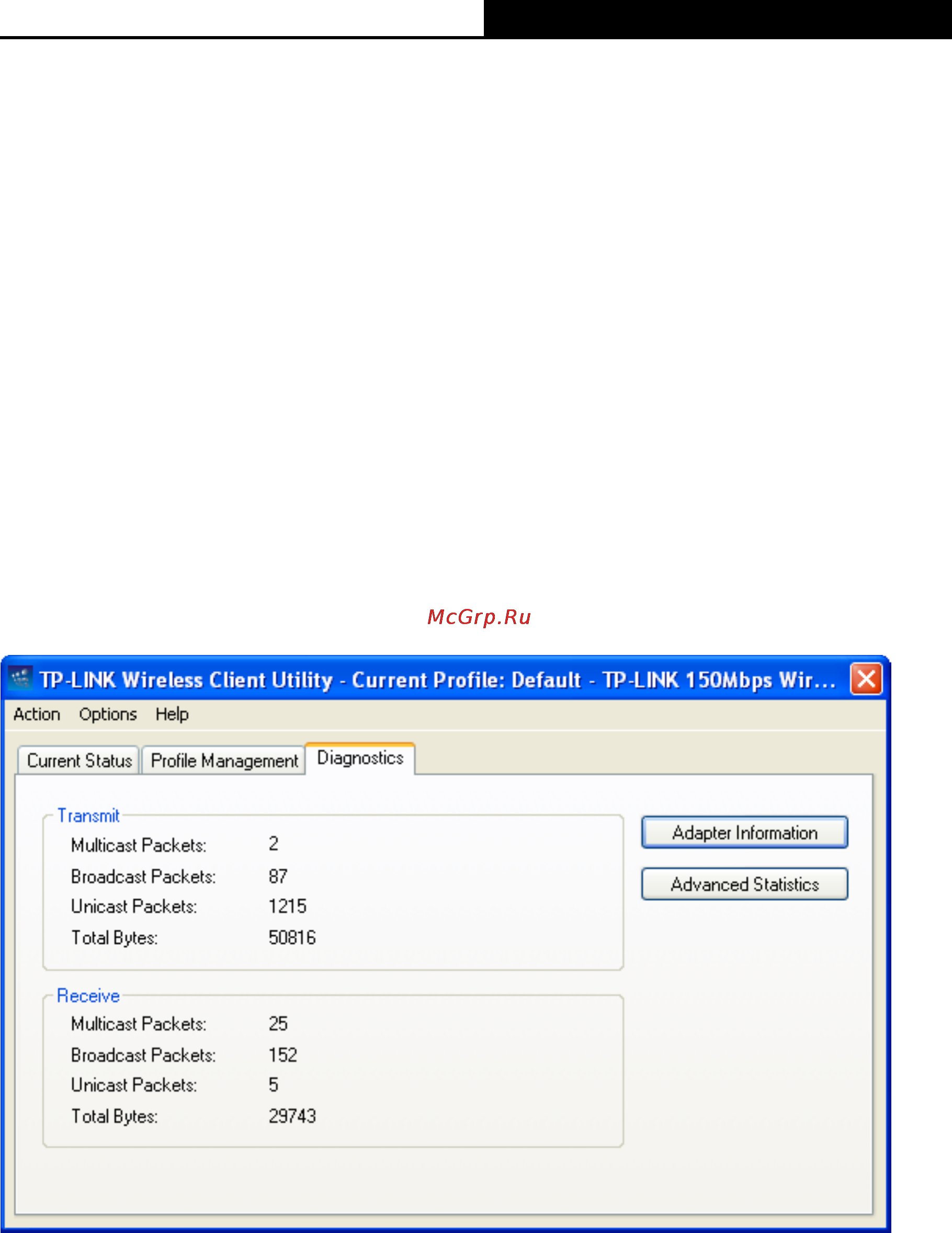

Figure 3-12
3.1.3.1. Check Driver Information
Click the Adapter Information butto
n in the screen above, you will see the adapter information,
including general information about the wireless network adapter and the Network Driver Interface
Specification (NDIS) driver. Access the adapter information from the Diagnostics tab.
¾ Card Name - The name of the wireless network adapter.
