TL-WN722N 150Mbps High Gain Wireless USB Adapter
35

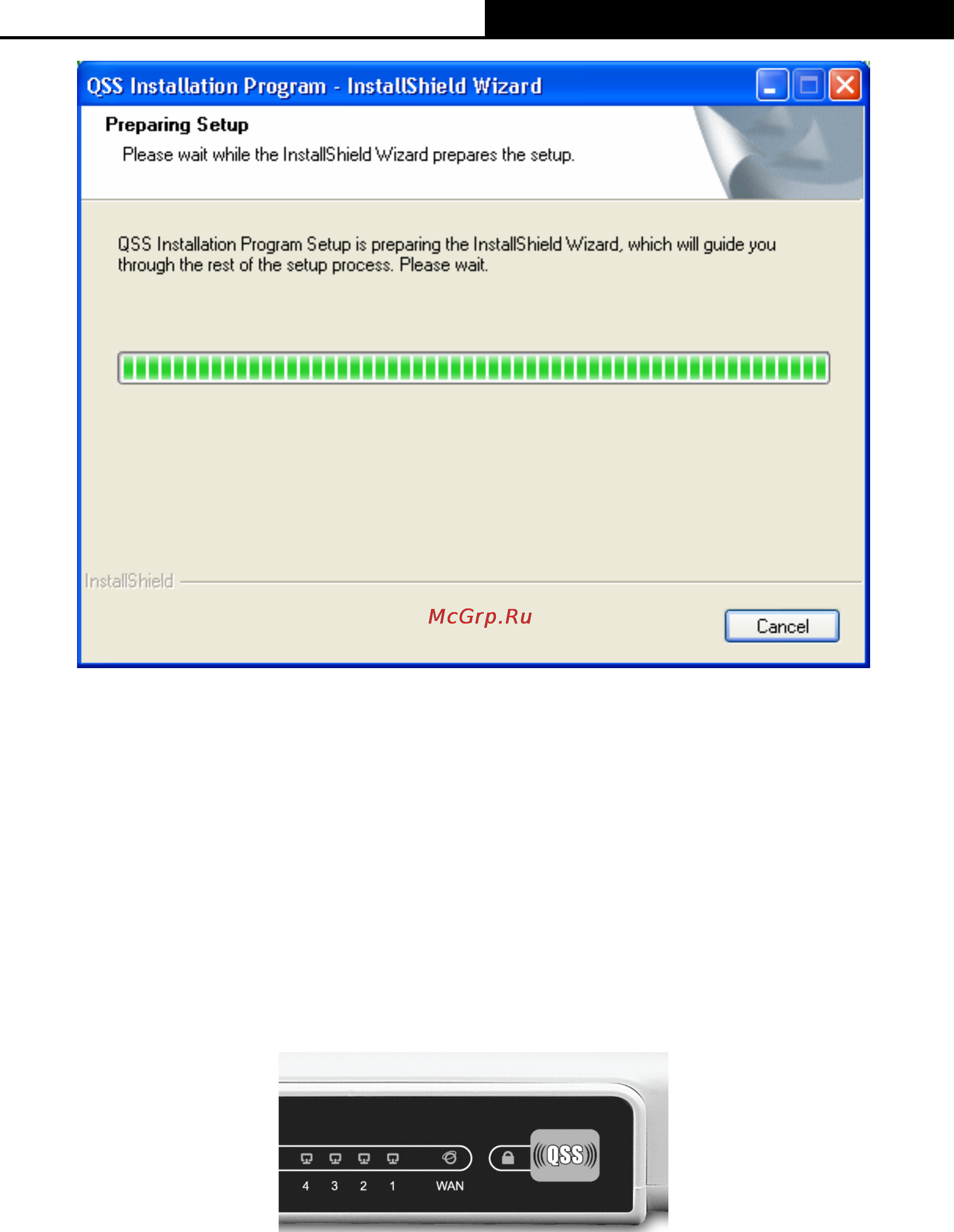

Figure 4-2
Then, please follow the clue of the Operation System to complete the QSS installation. After that,
QSS function can be enabled. Here we will introduce two ways to configure the QSS (For the
configuration of QSS, here takes the Wireless Router of our company for example).
4.1 PBC (Push Button Configuration) method
1. Firstly, press the QSS button of the router. There are two ways:
1) Press the QSS button directly on the front panel of the Router shown in
X Figure 4-3.
Figure 4-3
2) Open the Router’s Web-based Utility and click QSS link on the left of the main menu.
Then X Figure 4-4 will appear. Click Add device, then you can see Figure 4-5. Select
Press the button of the new device in two minutes and click Connect.
