D-Link DES-3350SR Standalone Layer 3 Switch
138
Figure 10 - 16. ARP Table window
To search a specific ARP entry, enter an interface name into the Interface Name or an IP address and click Find.
IGMP Snooping Group
This allows the switch’s IGMP Snooping table to be viewed. IGMP Snooping allows the switch to read the Multicast Group IP
address and the corresponding MAC address from IGMP packets that pass through the switch. The number of IGMP reports that
were snooped is displayed in the Reports field.
To view the IGMP Snooping table, click IGMP Snooping Group on the Monitoring menu:

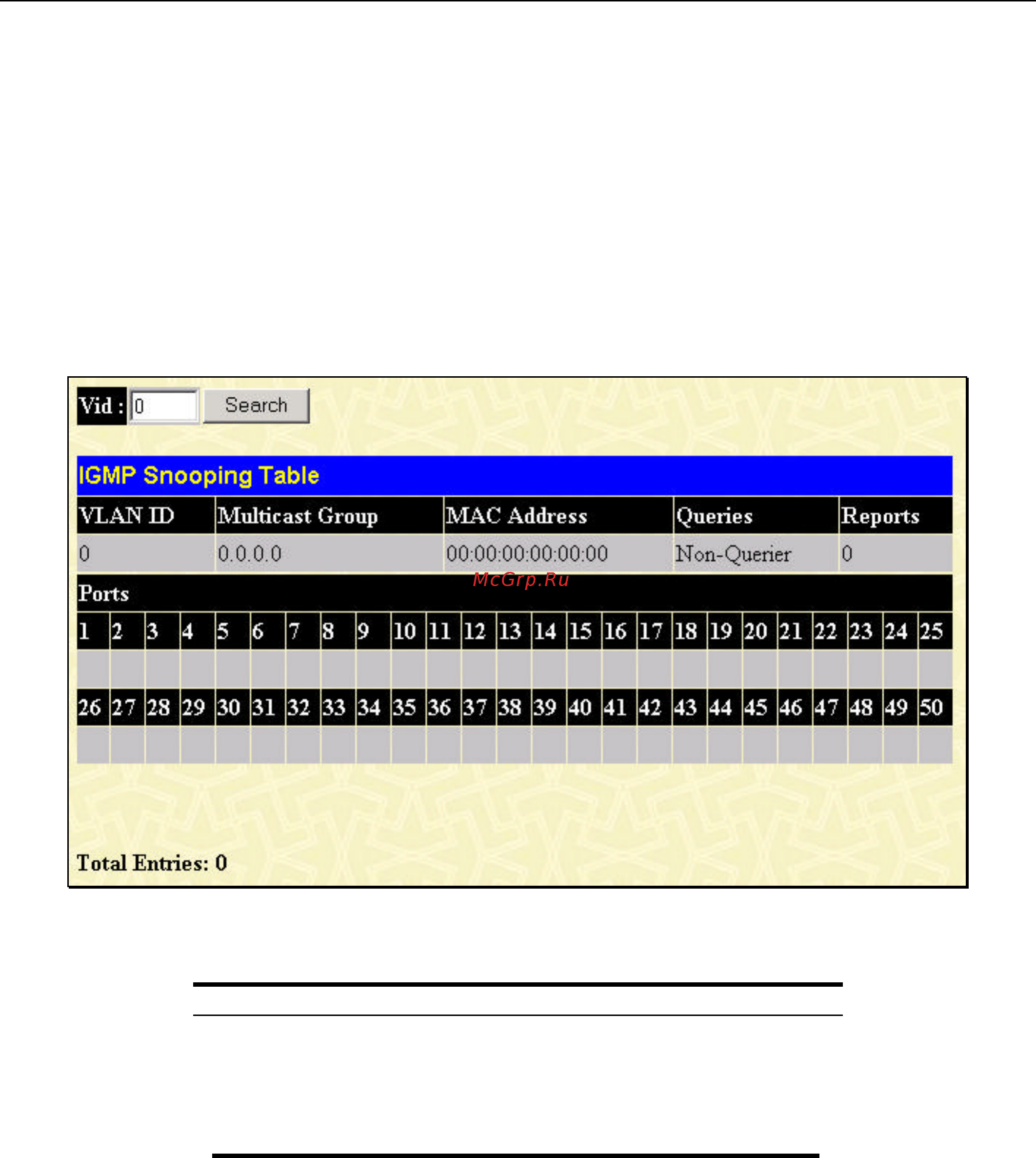

Figure 10 - 17. IGMP Snooping Table window
The following fields can be set or are displayed.
Parameter Description
Multicast Group The IP address of the multicast group.
MAC Address The MAC address of the multicast group.
Reports The total number of reports received for this group.
IGMP Snooping Forwarding
To view the IGMP Snooping Forwarding Table, click IGMP Snooping Forwarding on the Monitoring menu:
