TL-WN781ND 150Mbps Wireless Lite N PCI Express Adapter
25
1. On the Profile Management screen (shown in Figure 3-2), click Order Profiles….
2. The Auto Profiles Selection management window will appear (shown in
XFigure 3-11X ) with a list
of all created profiles in the Available Profiles.

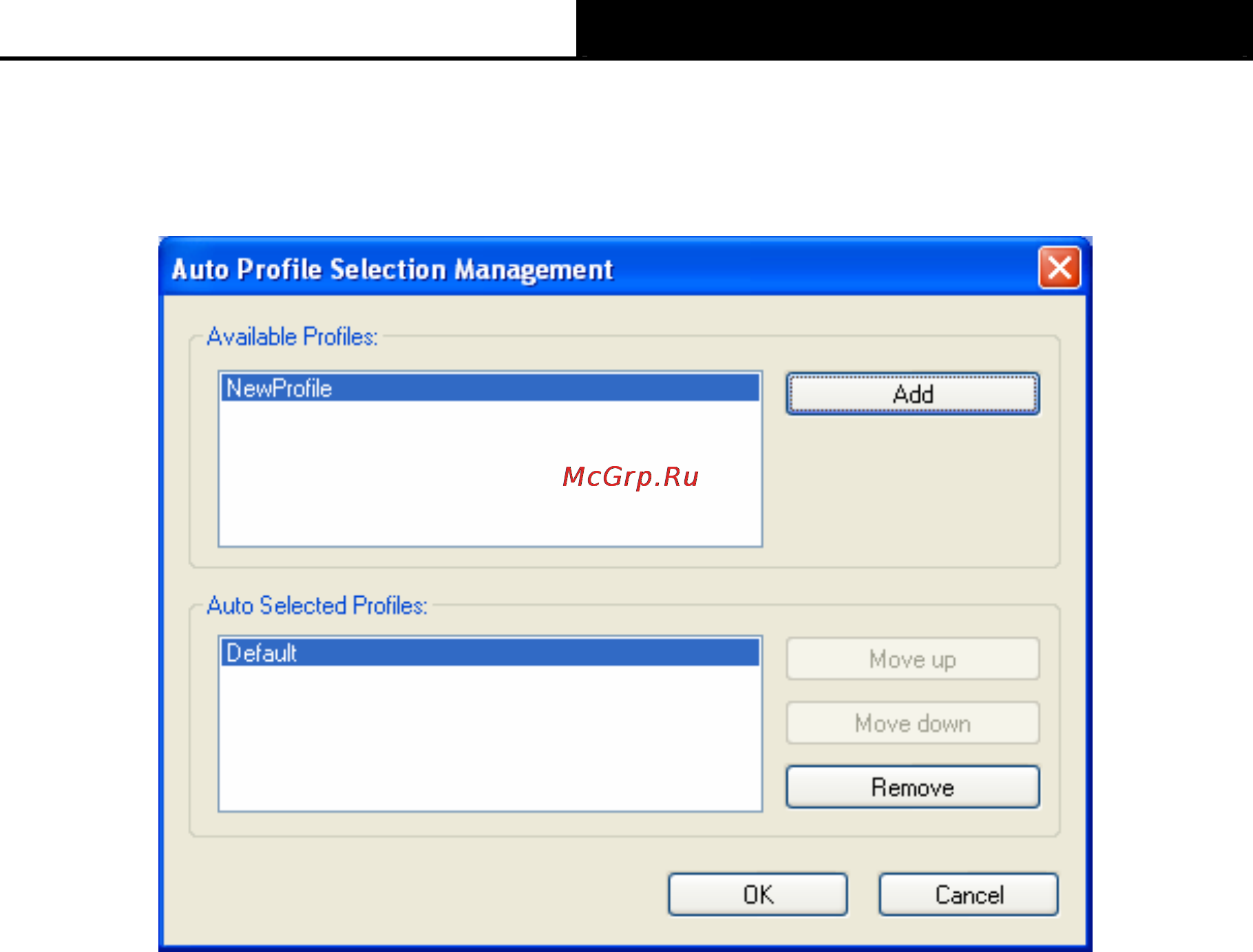

Figure 3-11
3. Highlight the profiles to add to auto profile selection, and click Add. The profile will appear in
the Auto Selected Profiles box.
4. Highlight a profile in the Auto Selected Profiles box.
5. Click Move Up or Move Down as appropriate.
)
Note:
The first profile in the Auto Selected Profiles box has highest priority, while the last profile has the
lowest priority.
6. Click OK.
7. Check the Auto Select Profiles checkbox on the Profile Management tab (shown in Figure
3-2).
)
Note:
When auto profile selection is enabled by checking Auto Select Profiles on the Profile
Management tab, the client adapter will scan for an available network. The profile with the highest
priority and the same SSID as one of the found networks will be used to connect to the network. If
the connection fails, the client adapter will try the next highest priority profile that matches the
SSID until an available network is found.
3.1.3 Diagnostics
The Diagnostics tab of the TP-LINK Wireless Client Utility (TWCU) provides buttons used to
retrieve receiving and transmitting statistics. The Diagnostics tab does not require any
configuration.
