DES-3550 Fast Ethernet Layer 2 Switch
Port Utilization
The Utilization window displays the percentage of the total available bandwidth being used on the port.
To view the port utilization, open the Monitoring folder and then the Port Utilization link:

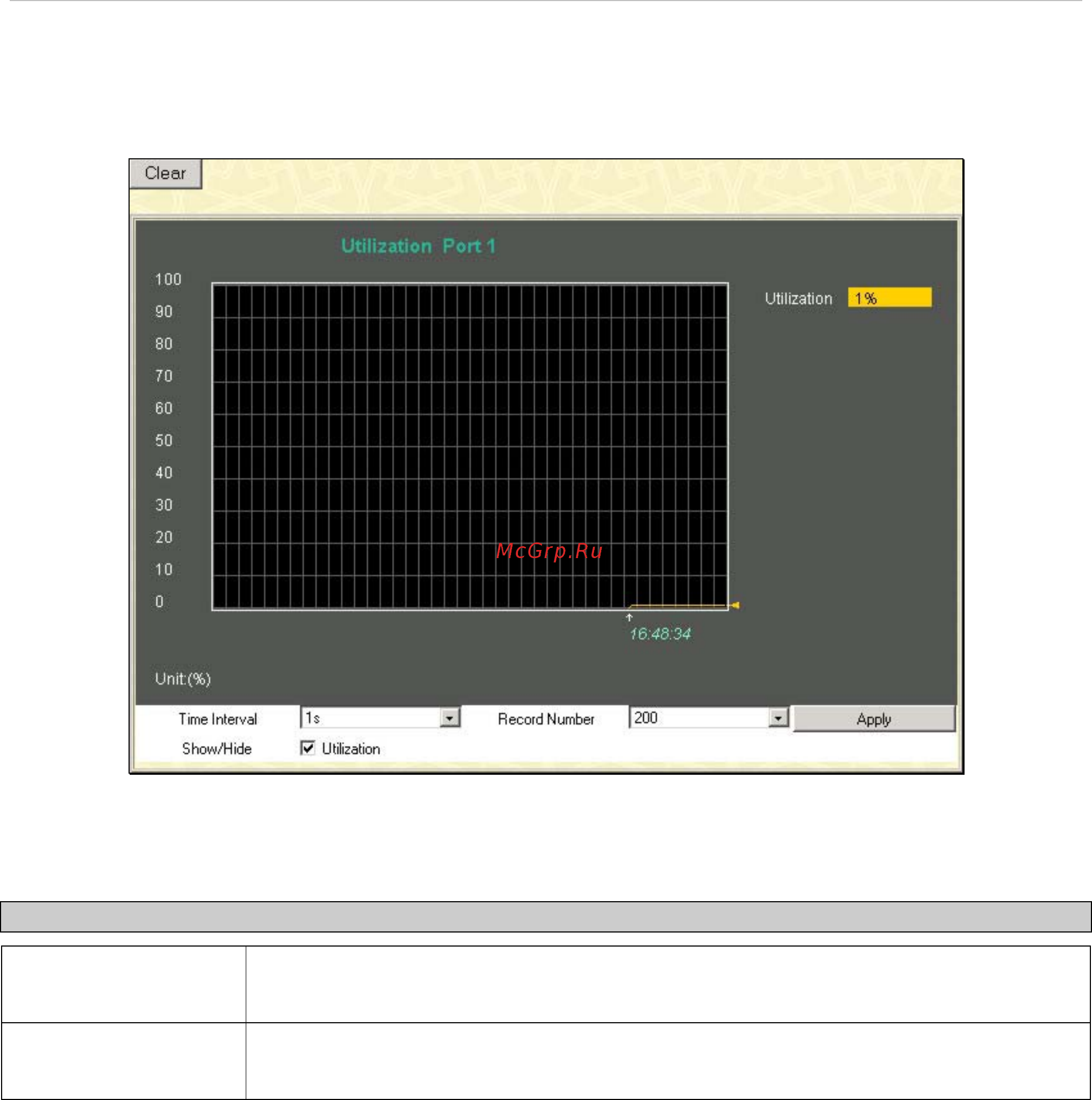

Figure 8- 1. Utilization window
The following field can be set:
Parameter Description
Time Interval
Select the desired setting between 1s and 60s, where "s" stands for seconds. The
default value is one second.
Record Number
Select number of times the Switch will be polled between 20 and 200. The default
value is 200.
Click Clear to refresh the graph. Click Apply to set changes implemented.
149
