DES-3550 Fast Ethernet Layer 2 Switch
STP Instance Settings
The following window displays MSTIs currently set on the Switch. To view the following table, click Configuration >
Spanning Tree > STP Instance Settings:

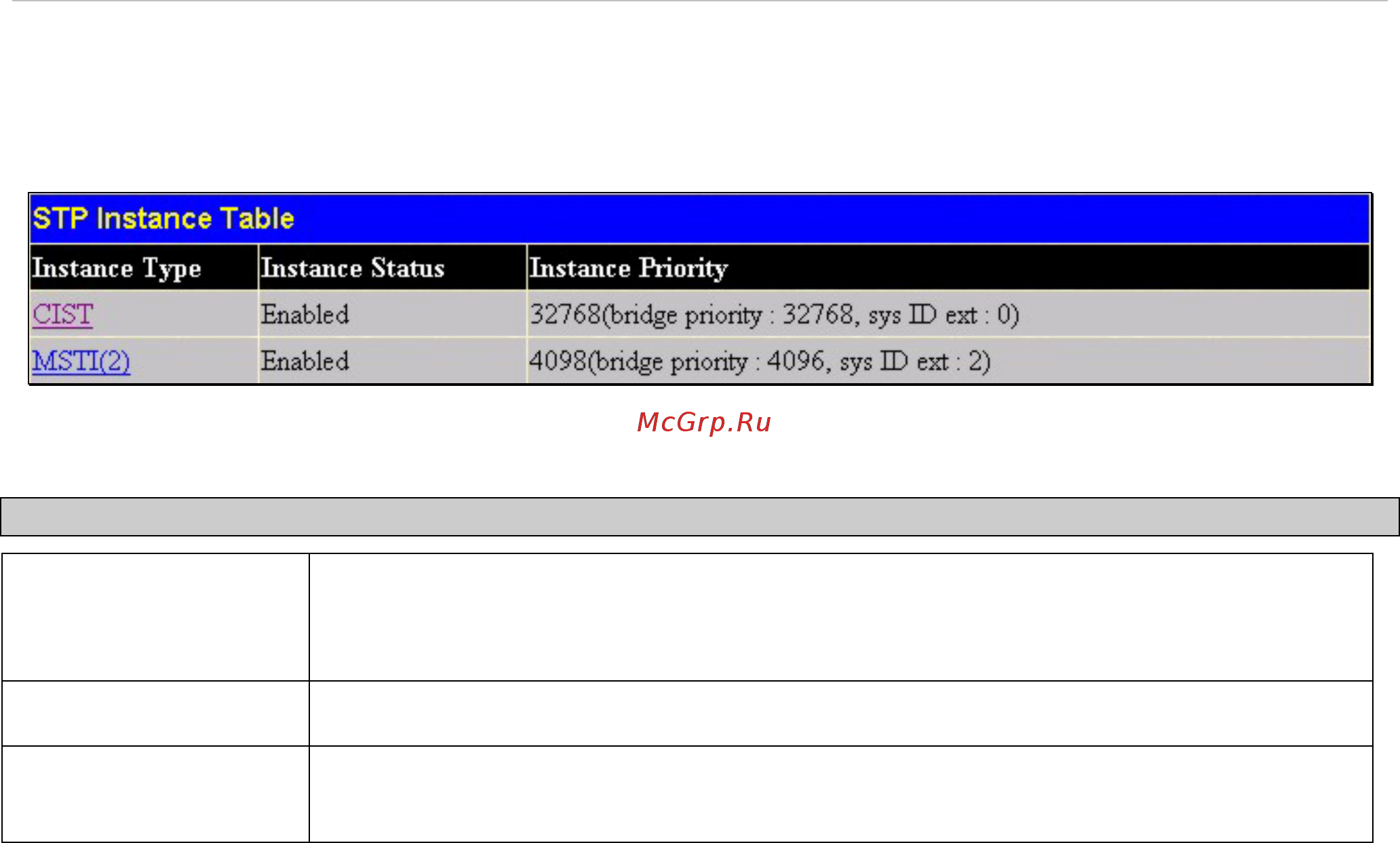

Figure 6- 27. STP Instance Table window
The following information is displayed:
Parameter Description
Instance Type
Displays the instance type(s) currently configured on the Switch. Each instance type
is classified by a MSTI ID. CIST refers to the default MSTI configuration set on the
Switch.
Instance Status
Displays the current status of the corresponding MSTI ID
Instance Priority
Displays the priority of the corresponding MSTI ID. The lowest priority will be the root
bridge.
Click Apply to implement changes made.
52
