DES-3550 Fast Ethernet Layer 2 Switch
Load balancing is automatically applied to the ports in the aggregated group, and a link failure within the group causes the
network traffic to be directed to the remaining links in the group.
The Spanning Tree Protocol will treat a link aggregation group as a single link, on the switch level. On the port level, the STP
will use the port parameters of the Master Port in the calculation of port cost and in determining the state of the link
aggregation group. If two redundant link aggregation groups are configured on the Switch, STP will block one entire group,
in the same way STP will block a single port that has a redundant link.
To configure port trunking, click on the Link Aggregation hyperlink in the Configuration folder to bring up the Port Link
Aggregation Group window:

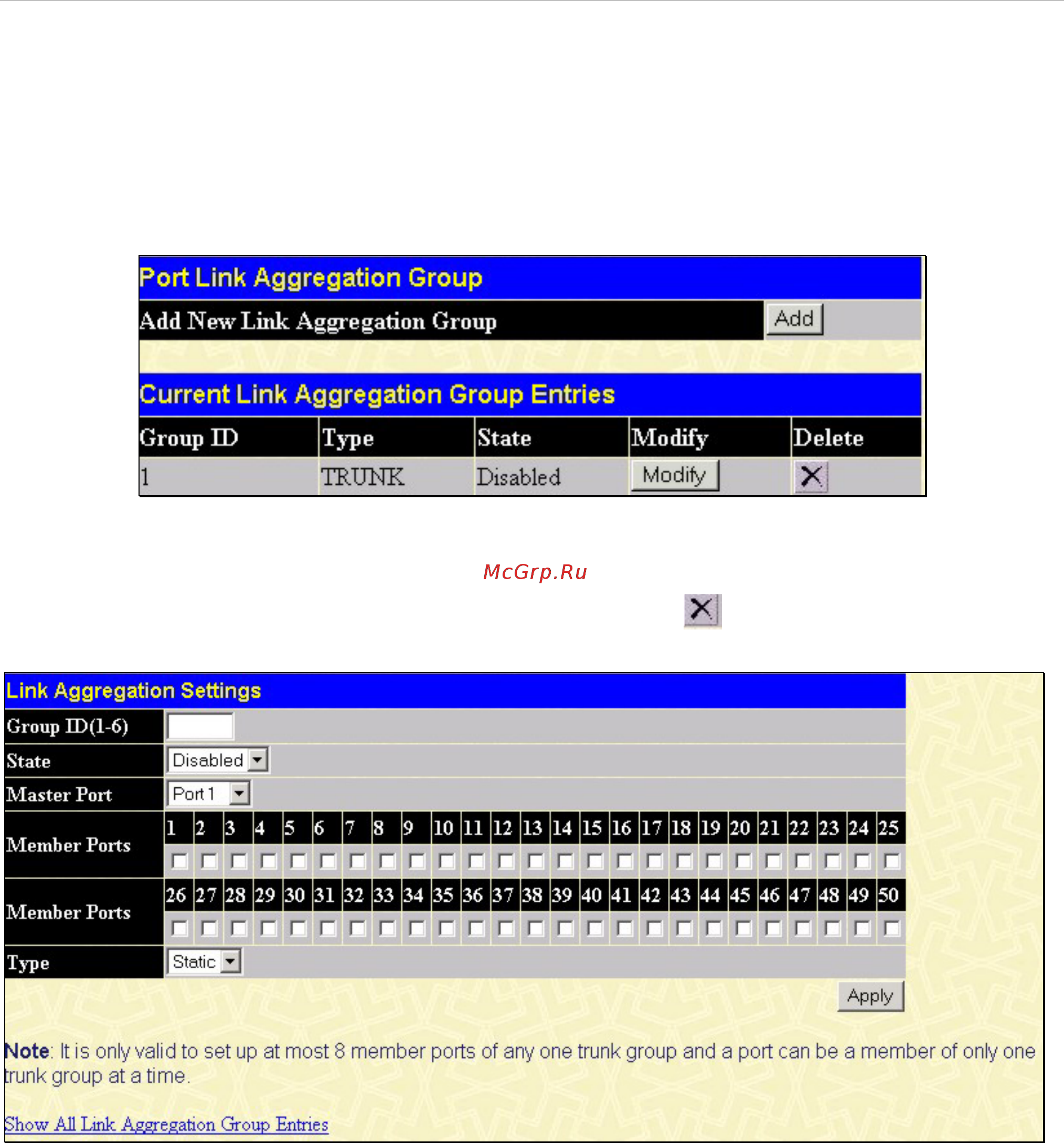

Figure 6- 8. Port Link Aggregation Group window
To configure port trunk groups, click the Add button to add a new trunk group and use the Link Aggregation Settings
window (see example below) to set up trunk groups. To modify a port trunk group, click the Modify button corresponding to
the entry you wish to alter. To delete a port trunk group, click the corresponding
under the Delete heading in the Current
Link Aggregation Group Entries table.
Figure 6- 9. Link Aggregation Settings window – Add
35
