DES-3550 Fast Ethernet Layer 2 Switch

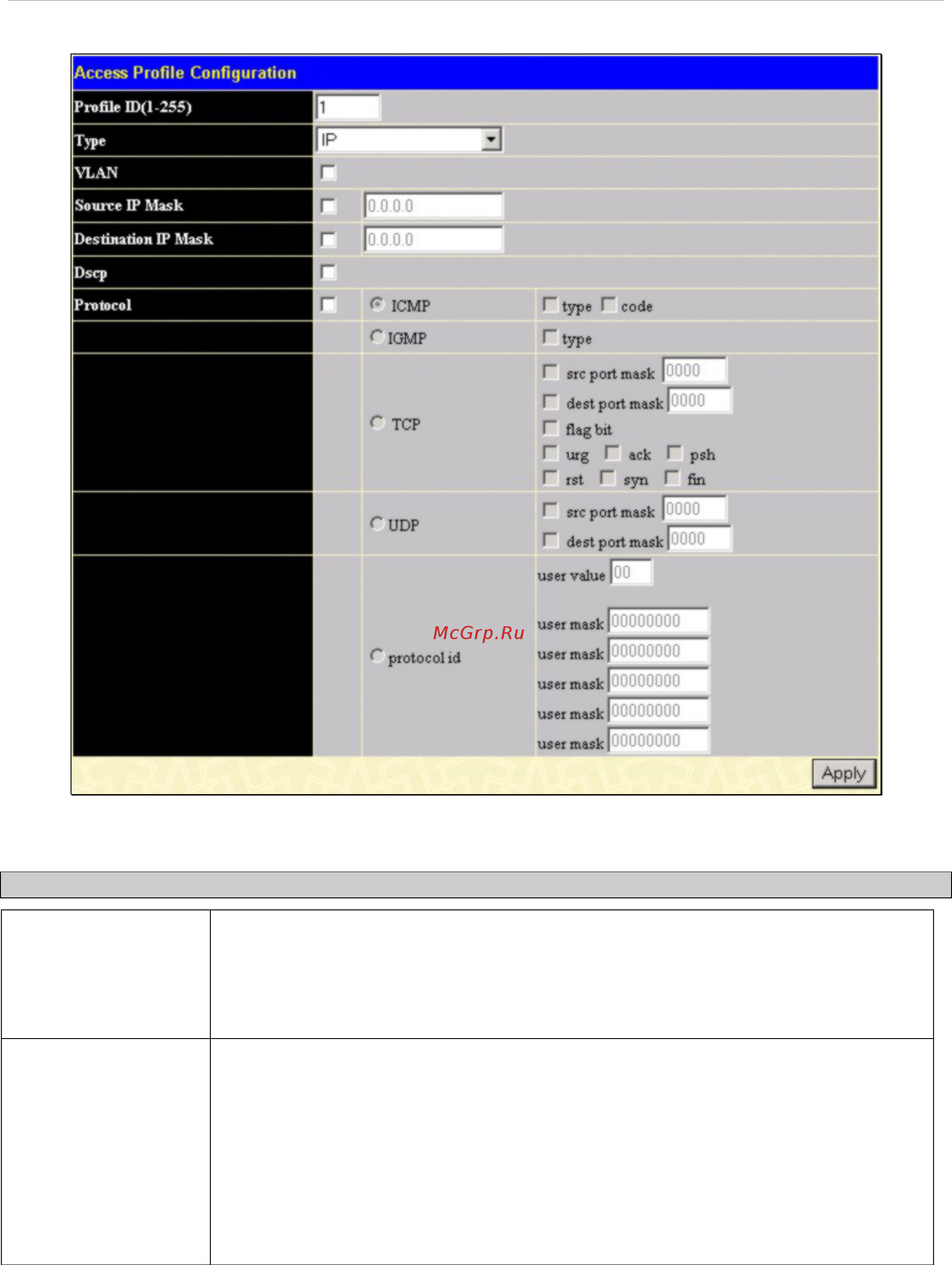

The window shown below is the Access Profile Configuration window for IP.

Figure 6- 55. Access Profile Configuration window (IP)

The following parameters can be set, for IP:

Parameter Description

Profile ID (1-255)

Type in a unique identifier number for this profile set. The number is used to set the

relative priority for the profile. Priority is set relative to other profiles where the lowest

profile ID has the highest priority. If a conflict occurs among configured access rules,

the profile ID establishes relative priority of the rules. The value can be set from 1 to

255 however there is a limit to the total number of profiles tht can be created.

Type

Select profile based on Ethernet (MAC Address), IP address or packet content mask.

This will change the menu according to the requirements for the type of profile.

•

Select Ethernet to instruct the Switch to examine the layer 2 part of each

packet header.

Select IP to instruct the Switch to examine the IP address in each frame's

header.

Select Packet Content Mask to specify a mask to hide the content of the

packet header.
