D-Link DES-3326S Layer 3 Switch
DES-132GB 2-port GBIC-based Gigabit Ethernet Module

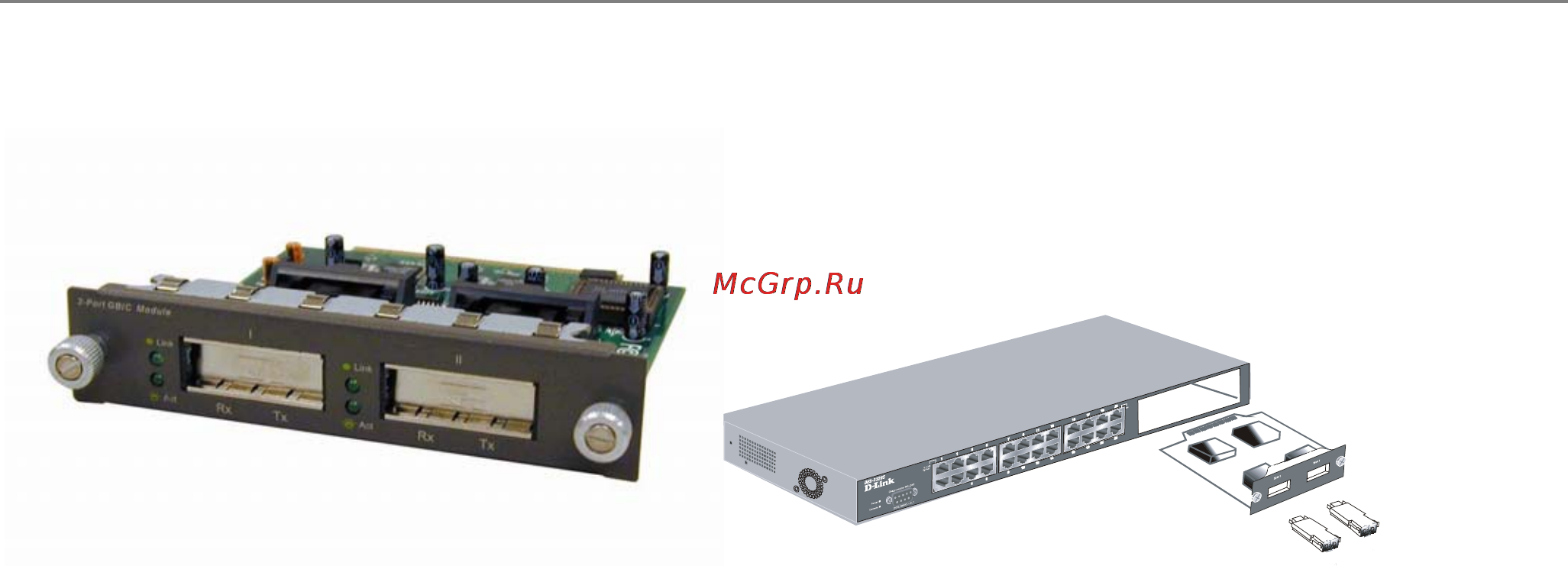

Figure 1 - 11. GBIC two-port module
Port Functions
• 2 GBIC-based Gigabit Ethernet ports
• Allows multi-mode fiber optic connections of up to 550 m (SX and LX) and single-mode fiber optic
connections of up to 5 km (LX only). GBIC modules are available in –SX and –LX fiber optic media.
• IEEE 802.3z compliance
• Supports full-duplex operations
• IEEE 802.3x compliant Flow Control support for full-duplex
DEM-320GH 2-port GBIC-based Gigabit Ethernet Module
Port Functions
• 2 GBIC-based Gigabit Ethernet ports
• Allows multi-mode fiber optic connections of up to 550 m (SX and LX) and single-mode fiber optic
connections of up to 5 km (LX only). GBIC modules are available in –SX and –LX fiber optic media.
• IEEE 802.3z compliance
• Supports full-duplex operations
• IEEE 802.3x compliant Flow Control support for full-duplex
LED Indicators
Link
Off – No Link
Solid Green – Link
Active
Off – No Activity
Blinking Green – Activity
12
